T-REX 650X Dominator F3C Super Combo 6S by Align.

“T-REX 650X F3C” is special design both for hobby use and competition. T-REX 650X body size is between T-REX 600 and T-REX 700 grade helicopter. It adopts integrated composite material and technology that efficiently enhance structure intensity and make repair convenience. The upper narrow main frame allow to strengthen the structure but also prevent body from deformation, vibration and gear abrasion in extreme flights. The lower wider main frame is designed with quick release latch for battery that makes battery assembly and disassembly more convenient and safe. The flybarless rotor head is low CG design better for F3C flight allow to reduce wind-resistance also improve superior flying feel and stability.

T-REX 650X is equipped with ALIGN 800MX (720KV) motor with excellent torque and high efficiency. Besides, the reinforcement plate can not only strengthen machine structure, but also can efficiently lower motor heat up to 20°C on every flight on average. The brushless RCE-BL130A ESC supports 6S 5200~6000mAh battery input. Pilots can choose main blades from 600~650mm based on their preference for outstanding flight performance.

“T-REX 650X F3C” is the helicopter for all pilots that has both super power and excellent stable flight like 700-grade helicopter and elegant slow flight performance like 600-grade helicopter. For F3C precise flight or slow fancy flight, T-REX 650X can satisfy pilots’ desire for flying.

Standard Equipment

T-REX 650X DOMINATOR Kit x 1

RCE-BL130A Brushless ESC x 1

800MX Brushless Motor (720KV/4530) x 1

DS820M High Voltage Brushless Servo x 3

DS825M High Voltage Brushless Serrvo x 1

650mm Carbon Fiber Main Blades Set x 1

105mm Carbon Tail Blades Set x 1

Microbeast PLUS Flybarless System x 1

800MX (720KV / 4530) Brushless Motor

Input Voltage: 6S

Max Continuous Current: 120A/200A(2sec)

Max Output Power: 2660W/4400W(2sec)

KV Value: 720KV

Stator Dimension: 4530

Stator Arms: 12

Magnet Poles: 10

Dimension: Spindle 6x56.7x94.5mm

 Weight: 515g

Equipment Required for Assembly

Transmitter (6-channel or more, helicopter system)

Receiver S.bus, DMSX/DMS2 , Standard Receiver (6-channel or more)

6S - 22.2V 5000mAh - 5200mAh - 6000mAh x 1

Digital Pitch Gauge

Misc. Building Equipment

*All Items Are Subject To Change By Align

T-REX RH65E03X Manual Download

RH55E19XW

Standard Equipment
Kit 650X F3C Super Combo
Model RH65E03X
Main Blades Align 650mm Carbon Fiber Main Blades
Tail Blades Align 105mm Carbon Fiber Tail Blades
Electronics Included
ESC Align RCE-BL130A Brushless ESC
ESC Programing Align ASBOX Multifunction Programmer HES00001 (Sold Separately)
Motor Align 800MX Brushless Motor (720KV/4530)
Cyclic Servo Align DS820M High Voltage Brushless Servo x 3
Tail Servo Align DS825M High Voltage Brushless Serrvo
Servo Gears Metal
Servo Case Metal
Flybarless System Microbeast Plus by Beastx
Flybarless Programming Lights & Dials, or Studiox APP using Optional USB or Bluetooth Device
Stabilization Level Mode Optional Update
Rescue Mode Optional Update
Receiver Supported DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver
Specification
Assembly Required Yes

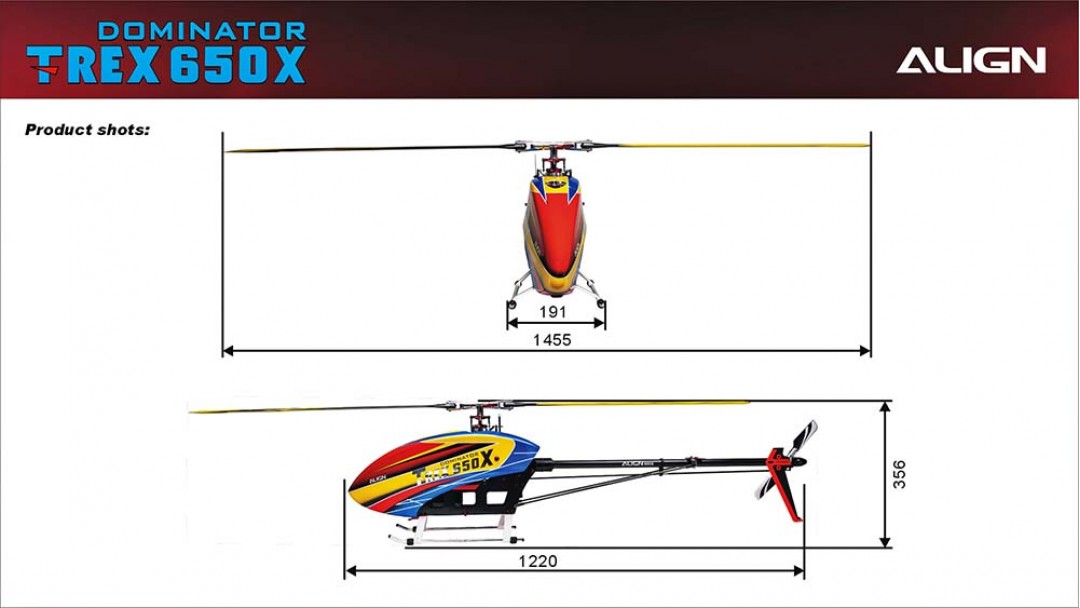

Length 1220mm - 48.03in
Height 356mm - 14.01in
Width 191mm - 7.52in
Main Blade Length 650mm - 25.59in
Main Rotor Diameter 1455mm - 57.28in
Tail Blade Length 105mm - 4.13in
Tail Rotor Diameter 280mm - 11.02in
Motor Input Voltage 6S
Motor Pinion Gear 16T
Main Drive Gear 112T
Autorotation Driver Gear 131T
Tail Drive Gear 34T
Tail Drive System Torque Tube
Tail Boom Length 680mm - 26.77in
Drive Gear Ratio 7:1:3.85
Weight (Without Battery) 3320g - 117.1oz
T-REX 650X F3C Super Combo

T-REX 650X F3C Super Combo

T-REX 650X Super Combo

T-REX 650X Super Combo

T-REX 650X Kit

T-REX 650X Kit

Price $1,525.99 $1,297.99 $1,525.99 $1,297.99 $881.99 $749.99
Rating
General
Kit 650X F3C Super Combo 650X Super Combo 650X Kit
Model RH65E03X RH65E01X RH65E02X
Specification
Main Blades Align 650mm Carbon Fiber Main Blades Align 650mm Carbon Fiber Main Blades Align 650mm Carbon Fiber Main Blades
Tail Blades Align 105mm Carbon Fiber Tail Blades Align 105mm Carbon Fiber Tail Blades Align 105mm Carbon Fiber Tail Blades
ESC Align RCE-BL130A Brushless ESC Align RCE-BL130A Brushless ESC
ESC Programing Align ASBOX Multifunction Programmer HES00001 (Sold Separately) Align ASBOX Multifunction Programmer HES00001 (Sold Separately)
Motor Align 800MX Brushless Motor (720KV/4530) Align 800MX Brushless Motor (440KV/4530) Align 800MX Brushless Motor (440KV/4530)
Cyclic Servo Align DS820M High Voltage Brushless Servo x 3 Align DS820M High Voltage Brushless Servo x 3
Tail Servo Align DS825M High Voltage Brushless Serrvo Align DS825M High Voltage Brushless Serrvo
Servo Gears Metal Metal
Servo Case Metal Metal
Flybarless System Microbeast Plus by Beastx Microbeast Plus by Beastx
Assembly Required
Length 1220mm - 48.03in 1220mm - 48.03in 1220mm - 48.03in
Height 356mm - 14.01in 356mm - 14.01in 356mm - 14.01in
Width 191mm - 7.52in 191mm - 7.52in 191mm - 7.52in
Main Blade Length 650mm - 25.59in 650mm - 25.59in 650mm - 25.59in
Tail Blade Length 105mm - 4.13in 105mm - 4.13in 105mm - 4.13in
Motor Input Voltage 6S 12S 12S
