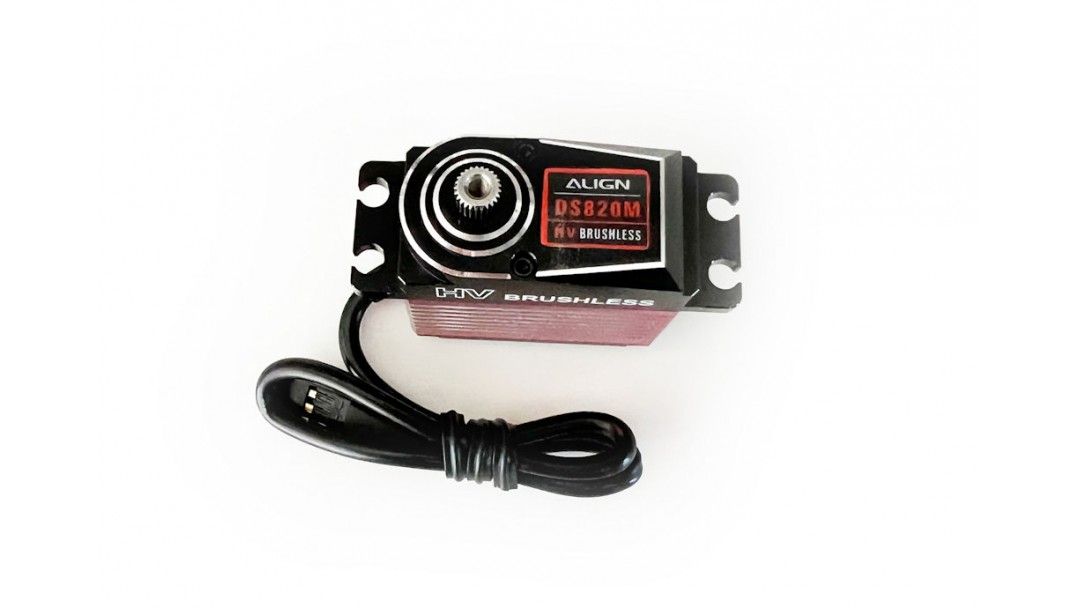

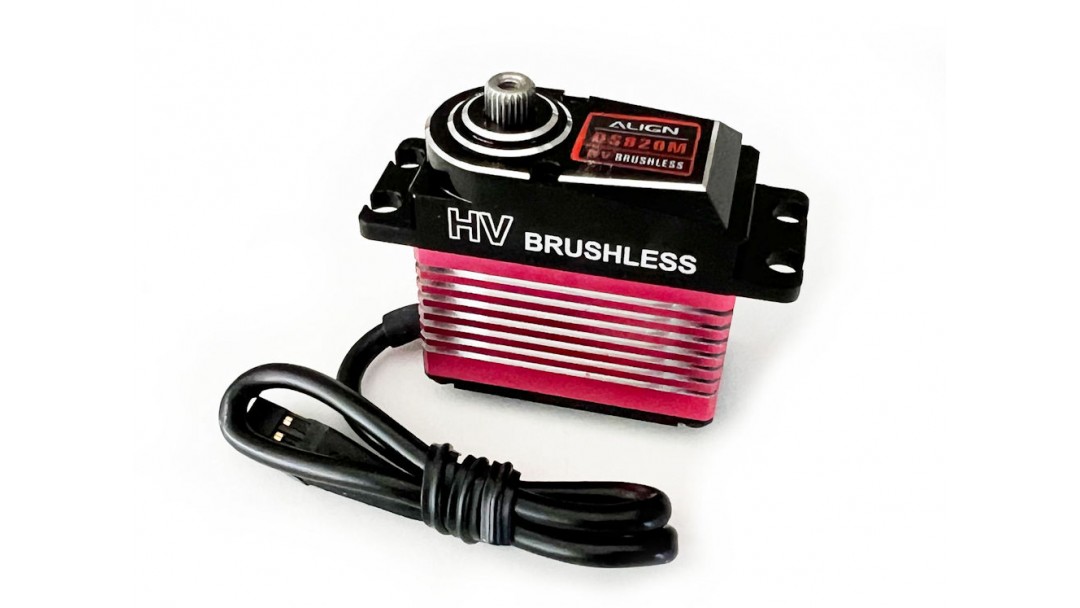

ALIGN DS820M Digital Cyclic HV Servo - (Open Box)

Suitable for T-REX TB60, TB70, TN70 RC Helicopter Electric, Nitro Series or Similar Class Size Heli

Designed Specifically for RC Helicopters

Utilizes Brushless Motor for Fast Speed, High Torque, Super Efficient Reaction

Hardened High Strength Super Alloy Gears

Suitable for Cyclic Use

Gear Replacement

DS820 Servo Gear Set - HSP82001

Servo Composite Material Case Replacement

DS820-825 Upper Lower Cover - HSP82002

Specifications

Wire Length: 260mm

Gears: All Metal

Gear Material: Hardened High Strength Alloy

Case: CNC Aluminum

Resolution: Ultra High Signal

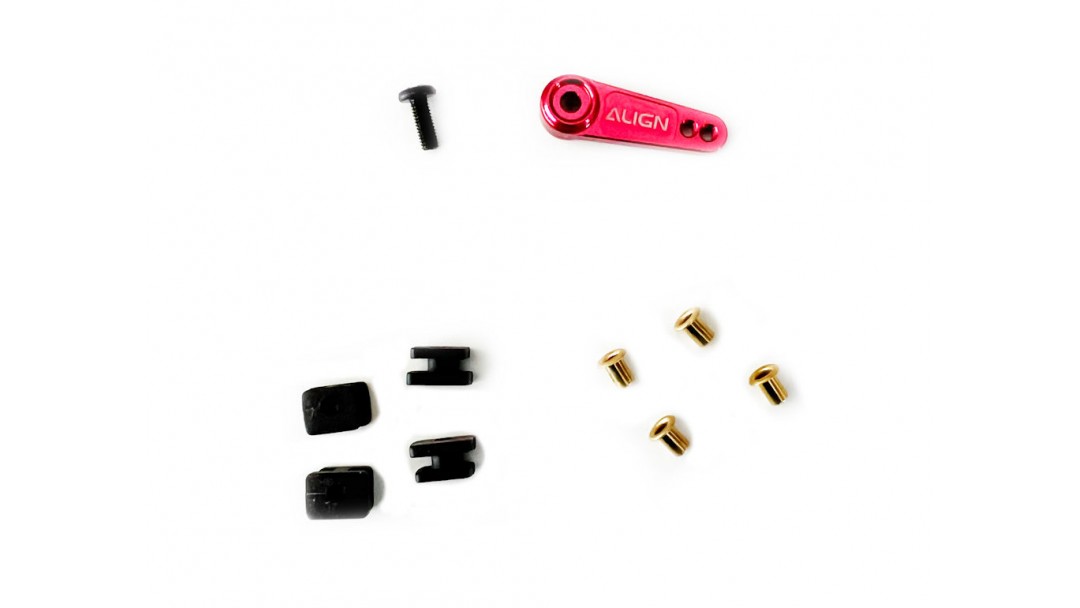

Package Includes

DS820M HV Brushless Servo 260mm x 1

D6FF Metal Servo Horn M2.5 Red x 1

Rubber Grommet x 4

Brass Collar Insert x 4

Servo Arm Screw x 1

Servo Specs
Cyclic Servo YES
RC Use Helicopter, Plane, Car, Other
Wire Length 260mm
Case All Metal
Gear Set Metal
Voltage Range 7.4-8.4V DC
Stall Torque 22kg.cm (7.4V) - 23kg.cm (8.4V)
Motion Speed 0.06sec/60° (7.4V) - 0.055sec/60° (8.4V)
Tempeature Range -20°C ~ +60°C
Swashplate Frequency 200Hz
Pulse Length 1520µs
Dimension 40 x 20 x 39mm
Weight 80g

Write a review

Please login or register to review

ALIGN T-REX DS820M Digital Cyclic HV Servo All Metal Case - 260mm (Open Box) HSD82003OB-260MM

  • Brand ALIGN
  • Product Code: 01-HSD82003OB-260MM
  • Availability: In Stock
  • $172.99
  • $139.99
