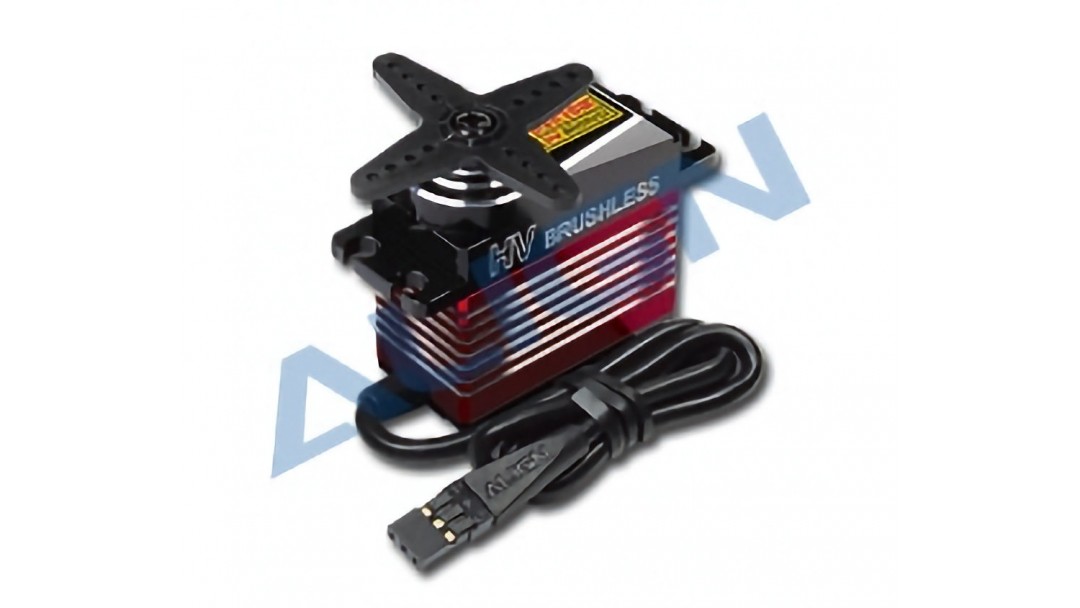

ALIGN DS830M Digital Cyclic HV Servo
Designed specifically for helicopters, utilizes brushless motor for fast speed, high torque and super efficiency reaction, allowing helicopter to perform with faster and higher precision. Brand new high voltage brushless servo equipped new CNC machined aluminum case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.
The drive gears are made of hardened steel and have improved machining accuracy, allowing for precise and seamless gear engagement with minimal clearance. The gear surface is wear-resistant, with low clearance and a long service life.
Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.
Supports 8.4v high voltage to provide optimal speed and torque performance of the brushless servo.
Designed specifically for helicopters, with highest specifications on the market: 0.055sec/60°ultra fast speed and 23kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision.
Ultra high signal resolution for excellent precision and smoothness.
Supports both analog and digital control signals.
|
Suitable for T-REX TB60, TB70 Elevator Servo, TN70 Aileron / Elevator / Pitch Servo RC Helicopter Electric, Nitro Series of Similar Class Size Heli required a shorter length (140mm) connection wire Utilizes Brushless Motor for Fast Speed, High Torque, Super Efficient Reaction Gear Replacement DS820 Servo Gear Set - HSP82001 Servo Composite Material Case Replacement DS820-825 Upper Lower Cover - HSP82002 |

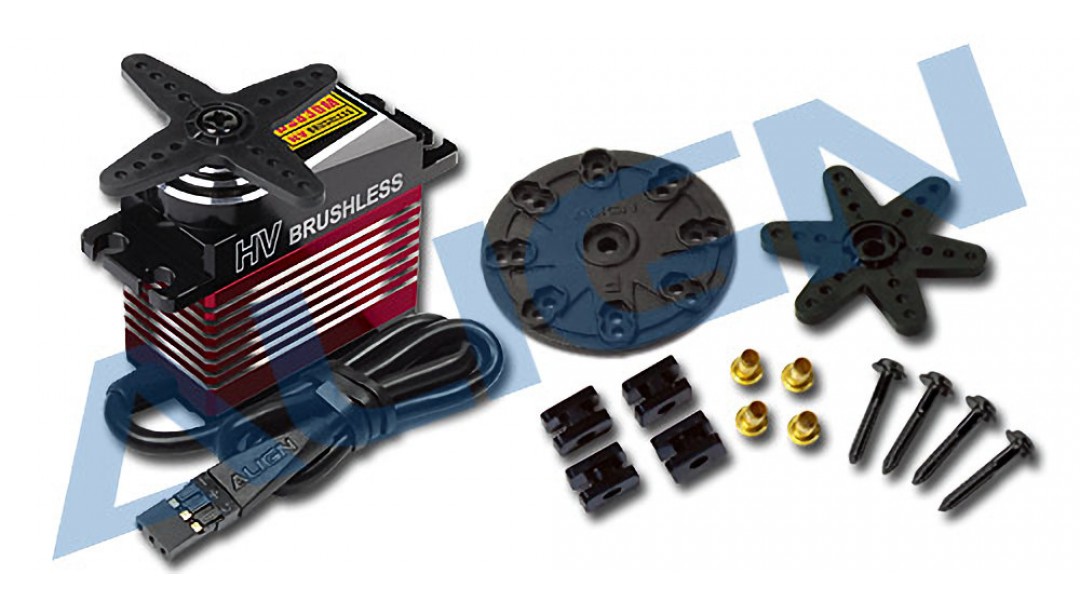

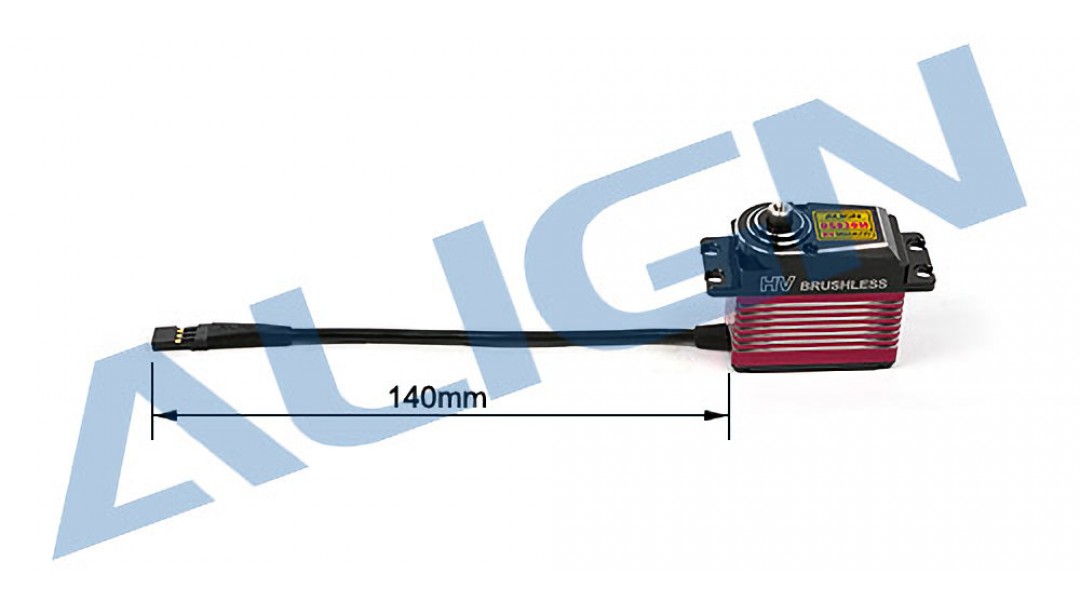

Specifications Wire Length: 140mm Gears: All Metal Gear Material: Hardened High Strength Super Alloy Case: CNC Aluminum Resolution: Ultra High Signal Package Includes DS830M High Voltage Brushless Servo (140mm) x 1 Servo Arm x 1 DS615/655 Servo Arm Set x 1 DS615/655 Rubber Group x 1 (Square rubber x 4/washer x 4/screw x 1) Socket Button Head Screw x 4 (M2.5x10mm) |
| Servo Specs | |
| Cyclic Servo | YES |
| Tail Servo | NO |
| RC Use | YES |
| Case | All Metal |
| Gear Set | Metal |
| Voltage Range | 7.4-8.4V DC |
| Stall Torque | 22kg.cm (7.4V) - 23kg.cm (8.4V) |
| Motion Speed | 0.06sec/60° (7.4V) - 0.055sec/60° (8.4V) |
| Tempeature Range | -20°C ~ +60°C |
| Swashplate Frequency | 200Hz |
| Pulse Length | 1520µs |
| Dimension | 40 x 20 x 39mm |
| Weight | 80g |
ALIGN T-REX DS830M High Voltage Brushless Servo - Cyclic (140mm) HSD83001
- Brand ALIGN
- Product Code: 01-HSD83001
- Availability: In Stock
-
$189.99
