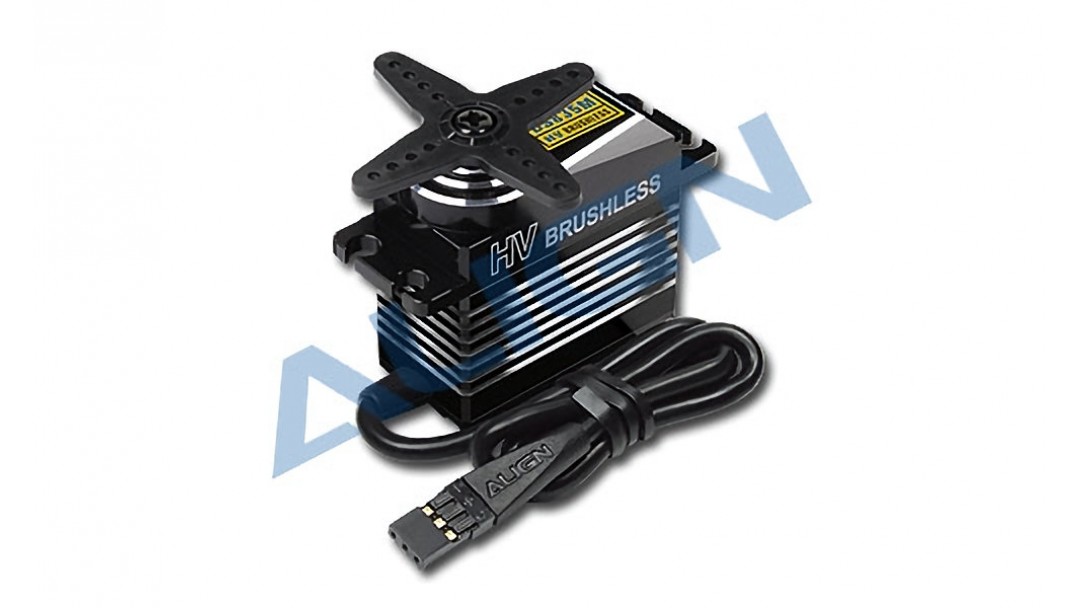

ALIGN DS830M Digital Tail High Voltage Servo

Designed specifically for helicopters, utilizes brushless motor for fast speed, high torque and super efficiency reaction, allowing helicopter to perform with faster and higher precision. Brand new high voltage brushless servo equipped new CNC machined aluminum case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.

The drive gears are made of hardened steel and have improved machining accuracy, allowing for precise and seamless gear engagement with minimal clearance. The gear surface is wear-resistant, with low clearance and a long service life.

Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.

Supports 8.4v high voltage to provide optimal speed and torque performance of the brushless servo.

Designed specifically for helicopters, with highest specifications on the market: 0.028sec/60°ultra fast speed and 12.5kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision.

Ultra high signal resolution for excellent precision and smoothness.

Supports both analog and digital control signals.

Suitable for T-REX TB60, TB70, TN70 RC Helicopter Electric / Nitro Series

Use on Similar RC Helicopter Electric / Nitro 600 to 800 Class Size Heli requiring a shorter length connection wire (170mm)

Utilizes Brushless Motor for Fast Speed, High Torque, Super Efficient Reaction

Gear Replacement

DS820 Servo Gear Set - HSP82001

Servo Composite Material Case Replacement

DS820-825 Upper Lower Cover - HSP82002

Specifications (Click on Tab Above)

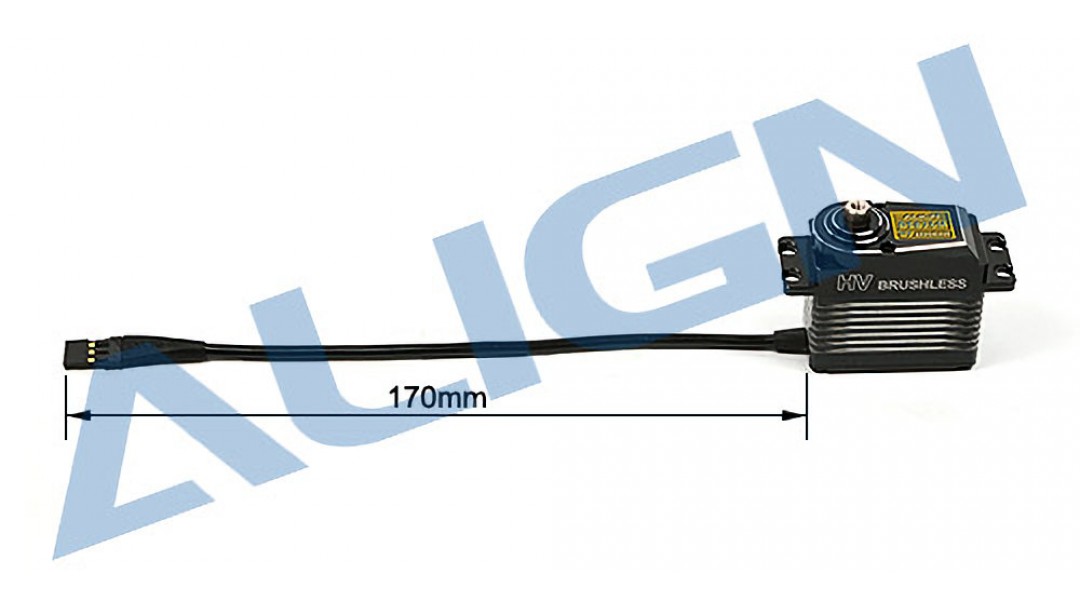

Wire Length: 170mm

Gears: All Metal

Gear Material: Hardened High Strength Super Alloy

Case: CNC Aluminum

Resolution: Ultra High Signal

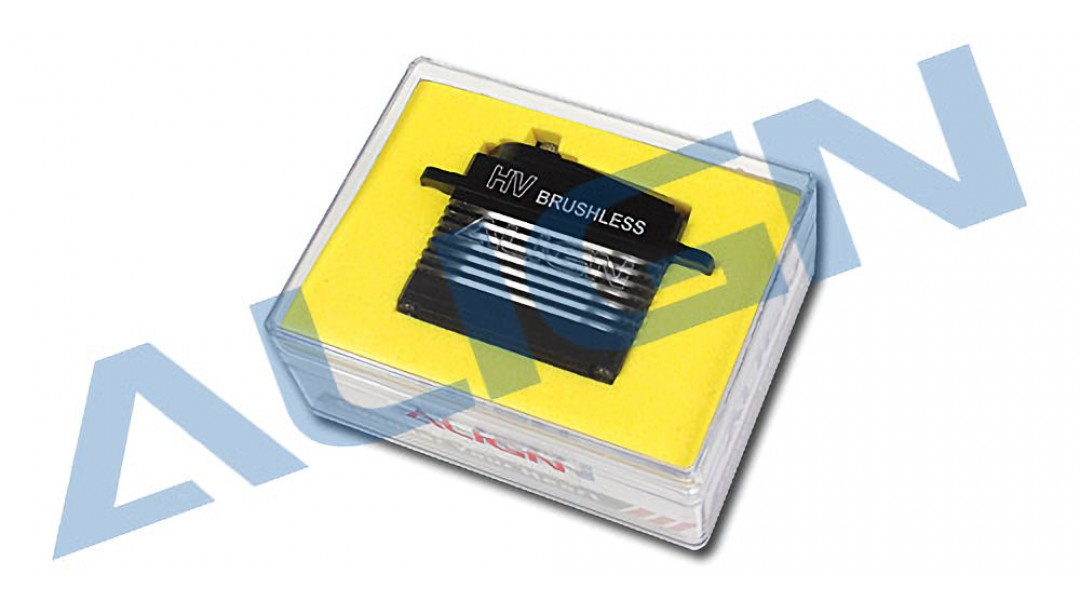

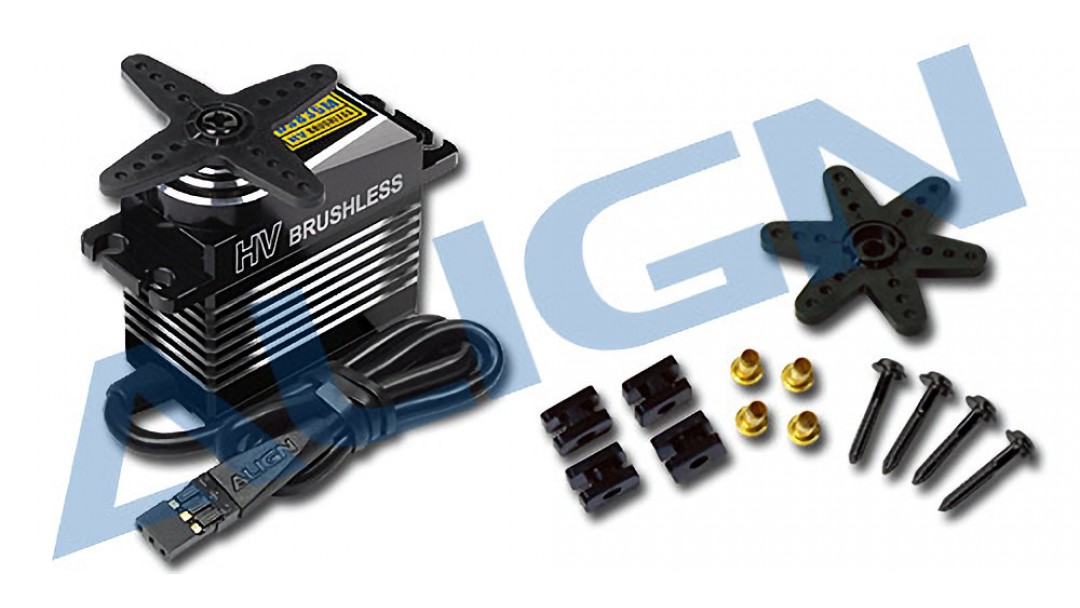

Package Includes

DS835M High Voltage Brushless Servo (170mm) x 1

Servo Arm x 1

DS615/655 Servo Arm Set x 1

DS615/655 Rubber Group x 1 (Square rubber x 4/washer x 4/screw x 1)

Socket Button Head Screw x 4 (M2.5x10mm)

Servo Specs
Cyclic Servo	NO
Tail Servo	YES
RC Use	Helicopter, Plane, Car
Wire Length	170mm
Case	All Metal
Gear Set	Metal
Voltage Range	7.0-8.4V DC
Stall Torque	10.0kg.cm (7.4V) - 12.5kg.cm (8.4V)
Motion Speed	0.030sec/60° (7.4V) - 0.020sec/60° (8.4V)
Tempeature Range	-20°C~+60°C
Rudder Frequency	333
Pulse Length	1520
Dimension	40x20x39mm
Weight	72g

	ALIGN DS835M High Voltage Brushless Servo - Tail (170mm)	Align T-REX 105 Carbon Fiber Tail Three Blade Set
Price	$189.99	$43.99
Rating
General
Product Name	DS835M High Voltage Brushless Servo
SKU	HSD83501
Specification
Cyclic Servo
Tail Servo
RC Use	Helicopter, Plane, Car
Case	All Metal
Gear Set	Metal
Voltage Range	7.0-8.4V DC
Stall Torque	10.0kg.cm (7.4V) - 12.5kg.cm (8.4V)
Motion Speed	0.030sec/60° (7.4V) - 0.020sec/60° (8.4V)
Tempeature Range	-20°C~+60°C
Rudder Frequency	333
Pulse Length	1520
Dimension	40x20x39mm
Weight	72g
