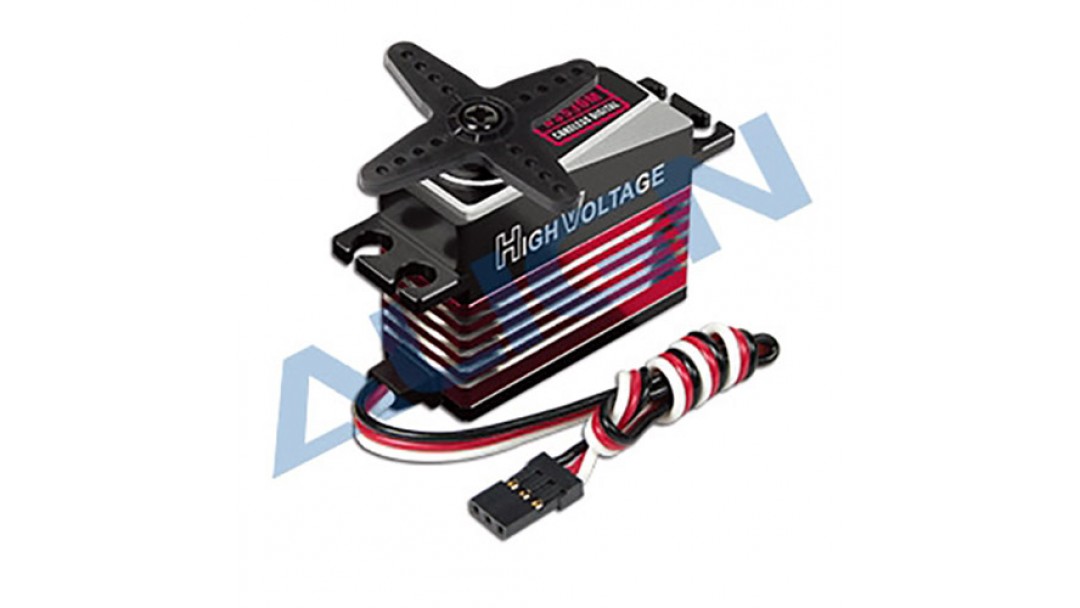

T-REX DS530M Digital HV Servo by Align.

Product Information

For T-REX 500, 500XT, 550L, 600XN*, 700XN* Series or 500 Class Size

Designed Specifically for 500 Class RC Helicopters

Utilizes Brushless Motor for Fast Speed, High Torque, Super Efficient Reaction

CNC Aluminum Case

All Aluminum Alloy Case

Ultra High Signal Resolution

Hardened High Strength Super Alloy Gears

Suitable for Cyclic and Rudder Use

*600XN and 700XN Throttle Servo

Gear Replacement

DS535 Servo Gear Set - HSP53502

Servo Composite Material Case Replacement

DS530-535 Upper Lower Cover - HSP53004

Specifications

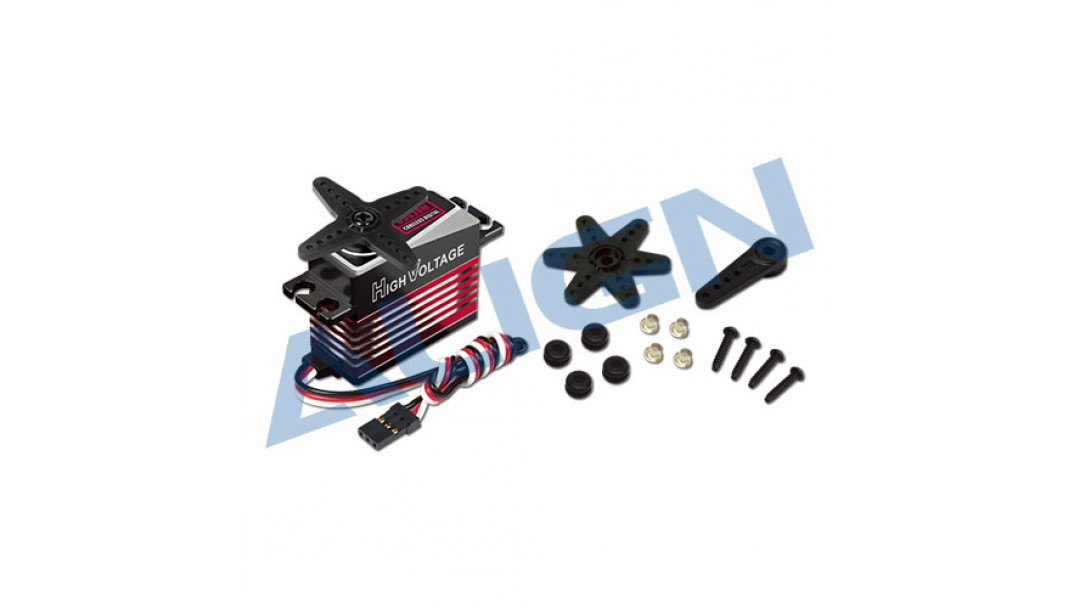

DS530M Digital Servo x 1

DS515/525 Servo Arm Set x 1

Socket Button Head Self Tapping Screw x 4 (T2.6x12mm)

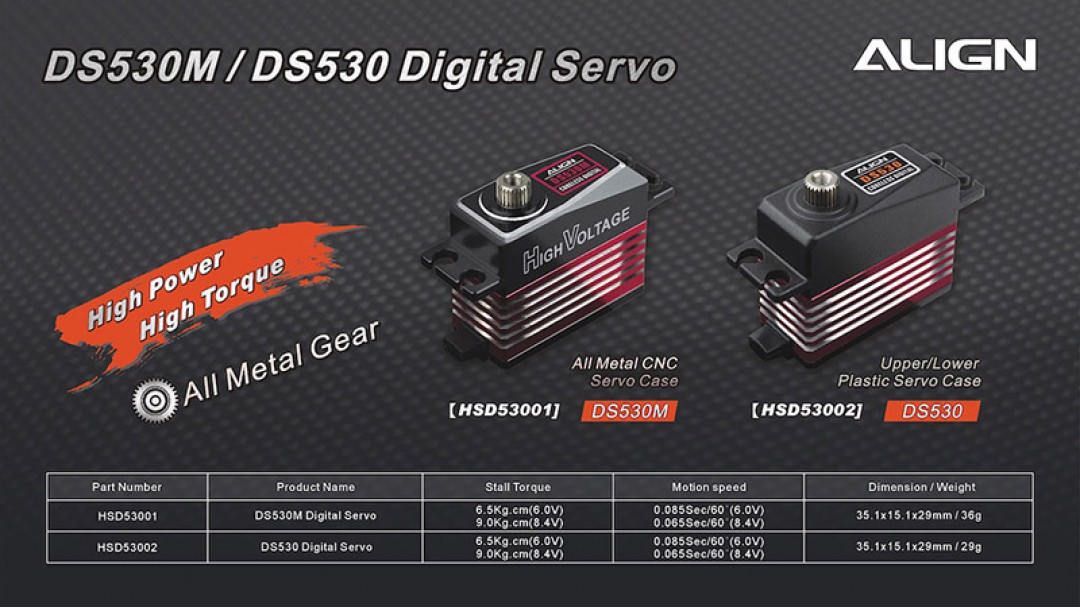

	T-REX DS530M Digital Cyclic HV Servo All Metal Case	ALIGN DS530 Digital Cyclic HV Servo Plastic / Metal Case
Price	$80.99	$53.99
Rating
General
Product Name	DS530M Digital Cyclic HV Servo	DS530 Digital Cyclic HV Servo
SKU	HSD53001	HSD53002
Specification
Cyclic Servo
Tail Servo
RC Use
Case	All Metal	Plastic and Composite Material
Gear Set	Metal	Metal
Voltage Range	6.0-8.4V DC	6.0-8.4V DC
Stall Torque	6.5kg.cm (6.0V) - 9.0kg.cm (8.4V)	6.5kg.cm (6.0V) - 9.0kg.cm (8.4V)
Motion Speed	0.085sec/60° (6.0V) - 0.065sec/60° (8.4V)	0.085sec/60° (6.0V) - 0.065sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C	-20°C ~ +60°C
Swashplate Frequency	200Hz	200Hz
Rudder Frequency	333Hz	333Hz
Pulse Length	1520µs	1520µs
Dimension	35.1 x 15.1 x 29mm	35.1 x 15.1 x 29mm
Weight	36g	29g
