Product Information

For 550, 600, 650, 700, 760, 800 Class RC Helicopters, Airplane, Giant Scale, Truck, Buggy

RC Helicopter Use: Cyclic, Rudder and Nitro Throttle

Monster Truck - Buggy Use: 1/10 Truck, 1/8 Truck Buggy, 1/5 Scale

High Speed Response

Case: All Aluminum

Gears: Titanium

Motor: Japanese Made Brushless

Specifications

• Dead Band: 0.0008ms (Default)
• Control System: +Pulse Width Control
• Working Frequency: 1520μs / 333hz
• Operating Voltage: 6 ~ 8.4 Volts
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed:
  • @4.8V: 0.14 sec/60° degrees at no load
  • @6.0V: 0.11 sec/60° degrees at no load
  • @7.4V: 0.09 sec/60° degrees at no load
• Stall Torque:
  • @4.8V: 222.2 oz-in (16 kg/cm)
  • @6.0V: 249.9 oz-in (18 kg/cm)
  • @8.4V: 319.4 oz-in (23 kg/cm)
• Motor Type: Brushless Motor
• Potentiometer Drive: Indirect Drive
• Bearing Type: Dual Ball Bearings
• Gear Type: Metal Gears
• Connector Wire Length: 24.0 cm (9.4 in)

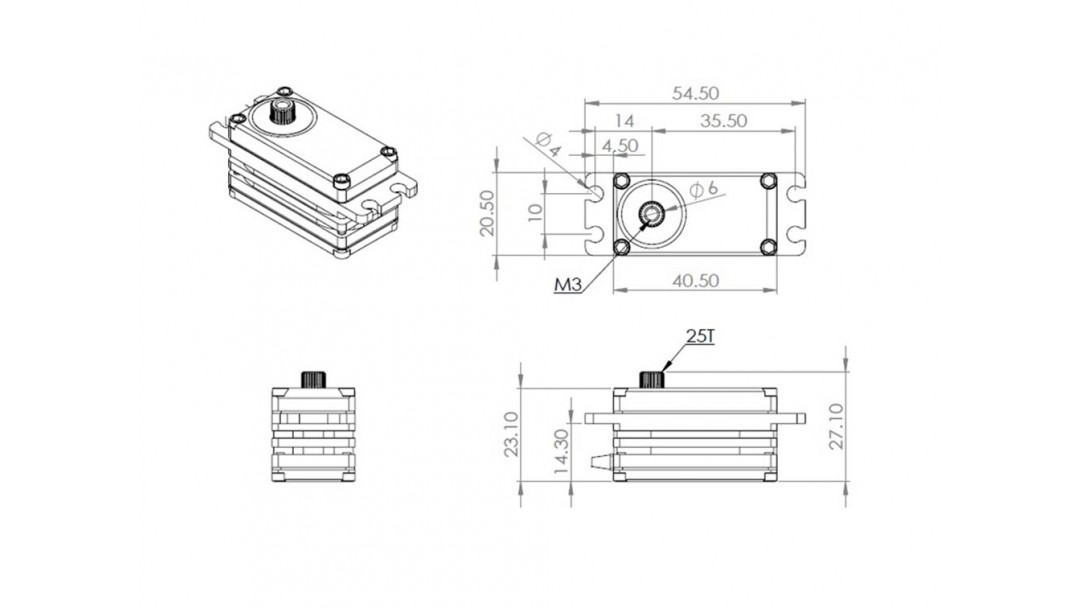

• Dimensions: 40x20x23.1mm
• Weight: 53.5g (1.89oz)
