OMP M2 EVO MK2 Dual Brushless Helicopter is Bind to Fly with either a Futaba SFHSS, Spektrum DSMX Satellite, or Radiomaster RP2 v2 receivers.

New Features

OFS3 Bluetooth Connectivity for Full Flight Parameter Control (Setup)
Redesigned Swashplate for Improved Flight Response
Redesigned Main Motor for Improve Power
OFS3 APP Apple Store - (Soon Android APP)

Product Information

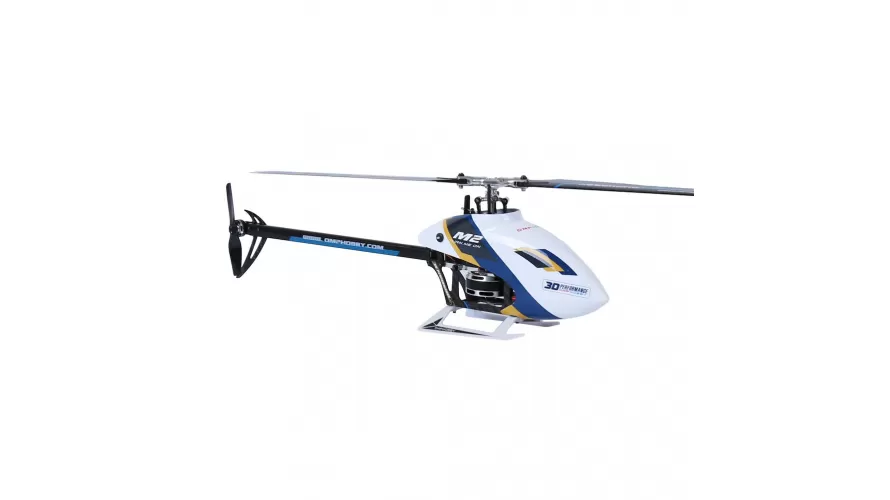

OMP Hobby M2 EVO MK2 Dual Brushless

Assembly Required: None

Optional Colors: Yellow, Orange, Red

Required for Bind and Fly - BNF

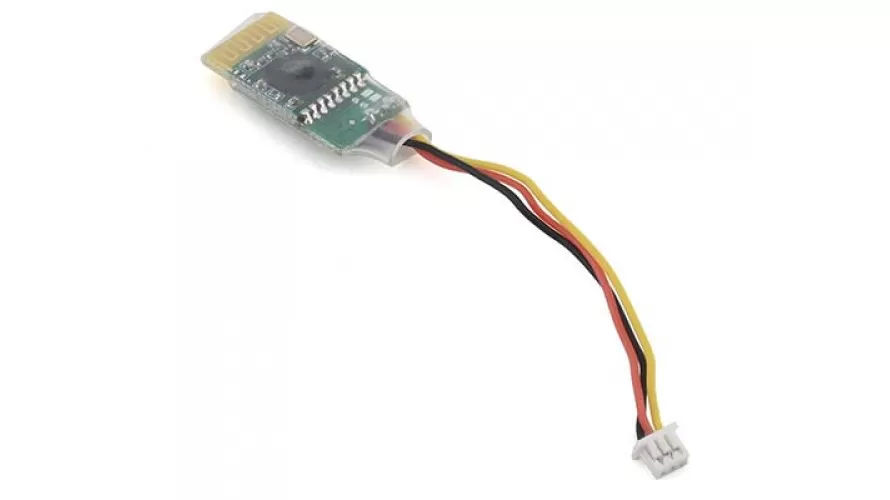

Futaba SFHSS Receiver - OSHM2055*(sold separately - no telemetry)

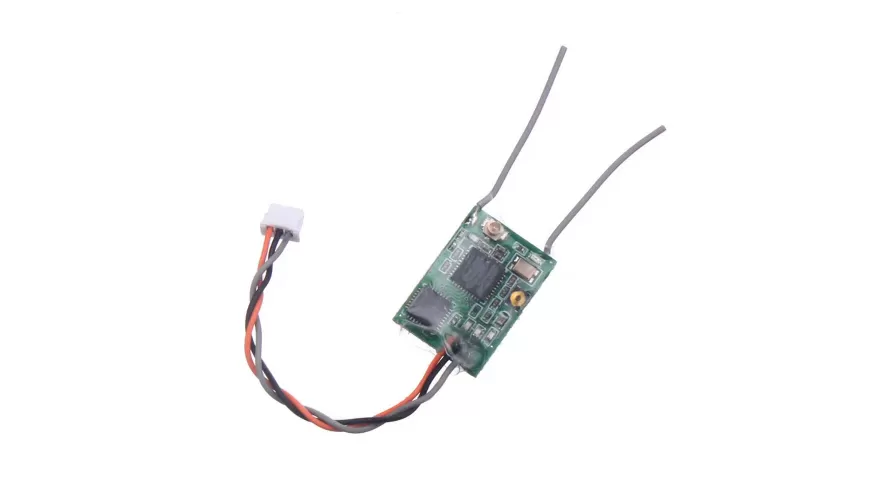

DSMX Compatible Satellite w/Bind Button - KEN-01015*(sold separately - no telemetry)

ELRS Protocol: Radiomaster RP2 v2* (full telemetry supported)

M2 v2 EVO Instruction Manual Download

M2 OFS3 User Guid Download

Specifications

Color: Elegant White

ESC & Battery Connector: XT30

Drive: Dual Brussless

Package Includes

OMP Hobby M2 EVO MK2 - White x 1

Bluetooth Module x 1

EPP Box x 1

11.1v 750mAh 60C Battery x 1

Swash Leveler x 1

Main Shaft x 1

Feathering Shaft Set x 1

Servo Horns x 3

Spare Screw & Spacer Set x 1

Zip Tie x 3

*NOTE: Telemetry is supported only on ELRS port. Currently ELRS, Crossfire and Tracer receivers can be used for telemetry. Future Telemetry support maybe added for other receivers with firmware upgrade.

WARNING! This is not a Toy. Improper usage can result is serious injury. RC Simulator practice is recommended before attempting to fly this model. Not suitable for children.

Standard Equipment
Kit	OMP Hobby M2 EVO Elegant White
Model	M2-MK2-BNF-W
Main Blades	OMP Hobby 190mm White
Tail Blades	OMP Hobby 42mm
Battery	OMPHOBBY 11.1v 750mAh 60C - XT30
Electronics Included
ESC	M2 v2 MK2 Dual ESC
ESC Programing	APP (Apple & Android) Bluetooth Connectivity
Motor	New Larger Main Increased Kv
Motor Tail	Sunnysky R13-3
Cyclic Servo	OMPHOBBY DS2710MG
Servo Gears	Metal
Servo Case	Composite Material - Plastic
Flybarless System	OFS3
Flybarless Programming	Bluetooth
Stabilization Level Mode	Auto-Level
Rescue Mode	Yes
Receiver Built In	None
Receiver Supported	DSMX (Kensun Satellite), Futaba S.Bus, Radiomaster RP2 v2
Specification
Assembly Required	None - Bind and Fly
Length	428mm - 16.85in
Height	138mm - 5.43in
Width	72mm - 2.83in
Main Blade Length	190mm - 7.48in
Main Rotor Diameter	434mm - 17.09in
Tail Blade Length	42mm - 1.65in
Tail Rotor Diameter	89mm - 3.5in
Motor Input Voltage	3S
Main Drive Gear	Motor Direct Drive
Tail Drive System	Motor Direct Drive
Tail Boom Length	Adjustable
Weight (Without Battery)	345g - 12.17oz
