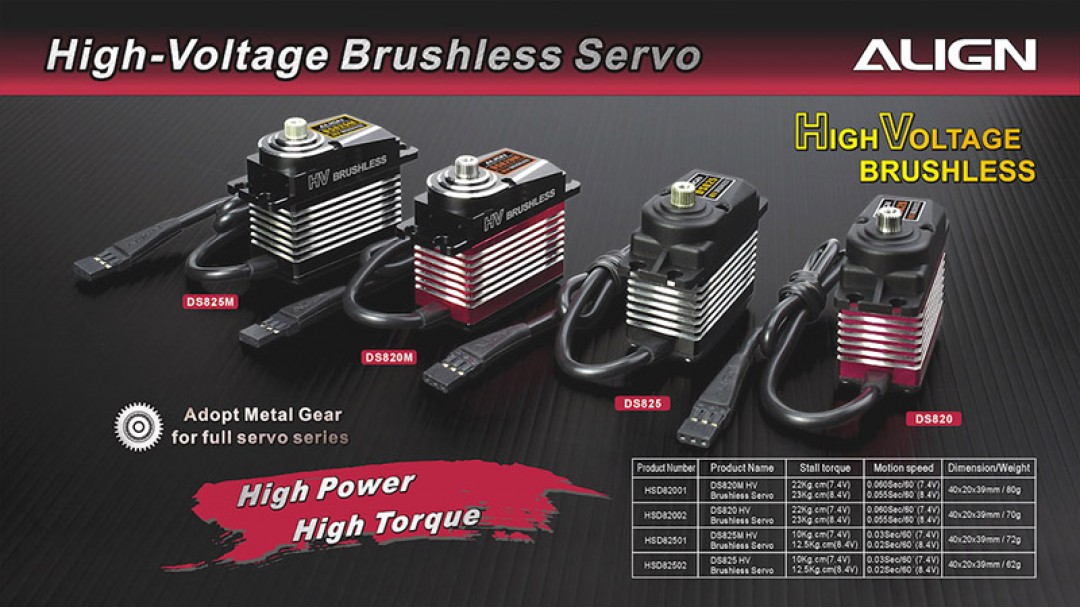

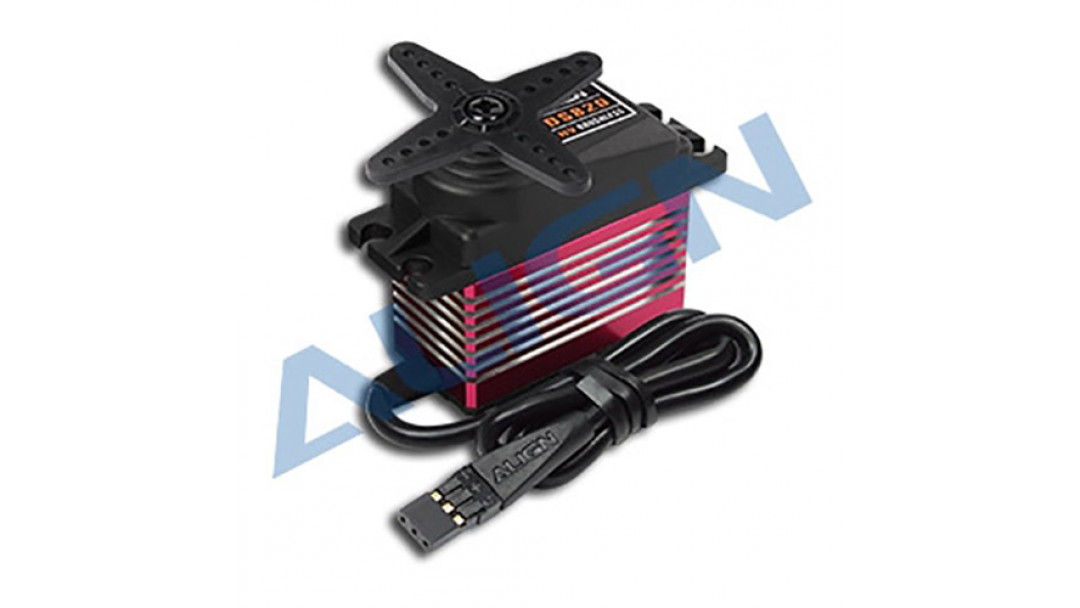

T-REX DS820 Digital Cyclic HV Servo by Align.

Product Information

For T-REX 550X, 600, 600XN, 650X, 700, 700E, 700L, 700X, TB70, 760X, 800 Series

Designed Specifically for RC Helicopters

Utilizes Brushless Motor for Fast Speed, High Torque, Super Efficient Reaction

CNC Aluminum Case

Plastic Upper Cap and Lower Bottom Plate

Ultra High Signal Resolution

Hardened High Strength Super Alloy Gears

Suitable for Cyclic and Rudder Use

Gear Replacement

DS820 Servo Gear Set - HSP82001

Servo Case Replacement

DS820-825 Upper Lower Cover - HSP82002

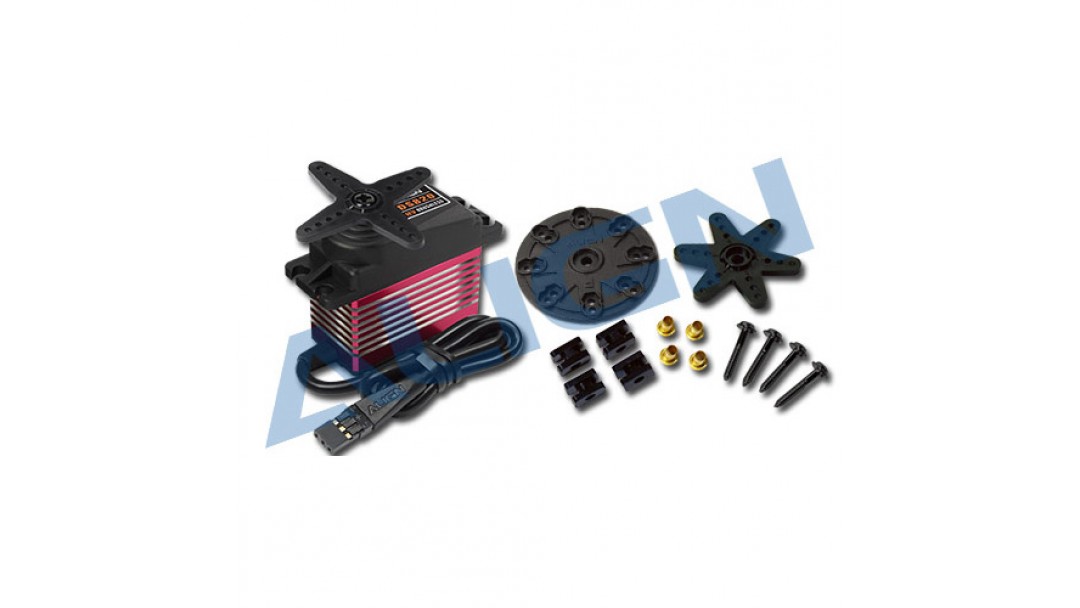

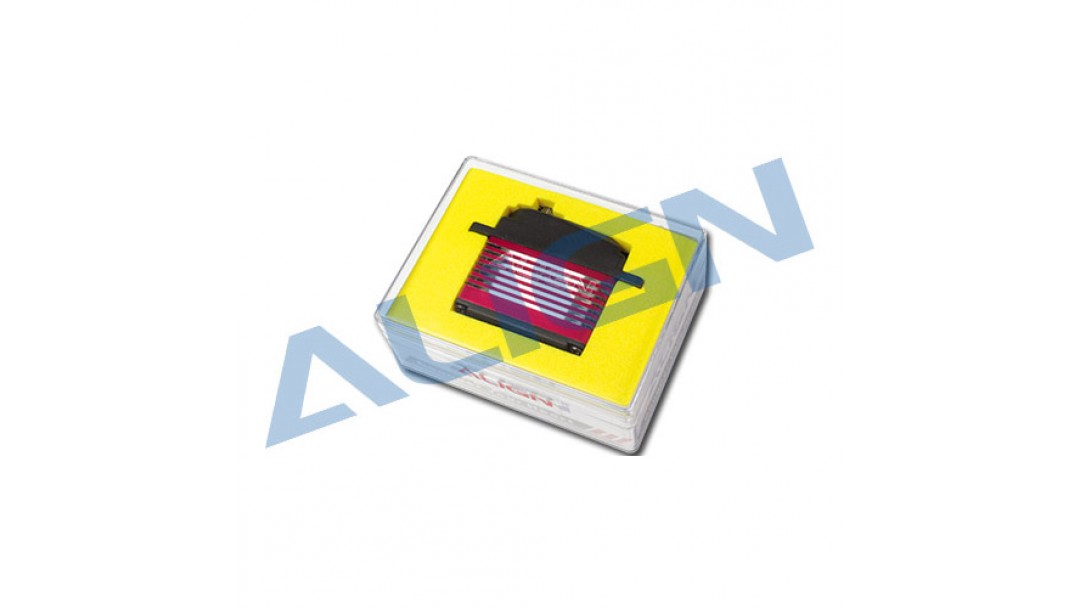

Package Includes

DS820 High Voltage Brushless Servo x 1

Servo Arm x 1

DS615/655 Servo Arm Set x 1

Socket Button Head Screw x 4 (M2.5x10mm)

Servo Specs
Cyclic Servo	YES
Tail Servo	YES
RC Use	YES
Case	Metal and Composite Material
Gear Set	Metal
Voltage Range	7.4-8.4V DC
Stall Torque	22kg.cm (7.4V) - 23kg.cm (8.4V)
Motion Speed	0.06sec/60° (7.4V) - 0.055sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C
Swashplate Frequency	200Hz
Rudder Frequency	333Hz
Pulse Length	1520µs
Dimension	40 x 20 x 39mm
Weight	70g

	T-REX DS820 Digital Cyclic HV Servo Plastic and Metal Case	T-REX DS820M Digital Cyclic HV Servo All Metal Case
Price	$134.99	$172.99
Rating
General
Product Name	DS820 Cyclic HV Servo	DS820M Digital Cyclic HV Servo
SKU	HSD82002	HSD82001
Specification
Cyclic Servo
Tail Servo
RC Use
Case	Metal and Composite Material	All Metal
Gear Set	Metal	Metal
Voltage Range	7.4-8.4V DC	7.4-8.4V DC
Stall Torque	22kg.cm (7.4V) - 23kg.cm (8.4V)	22kg.cm (7.4V) - 23kg.cm (8.4V)
Motion Speed	0.06sec/60° (7.4V) - 0.055sec/60° (8.4V)	0.06sec/60° (7.4V) - 0.055sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C	-20°C ~ +60°C
Swashplate Frequency	200Hz	200Hz
Rudder Frequency	333Hz	333Hz
Pulse Length	1520µs	1520µs
Dimension	40 x 20 x 39mm	40 x 20 x 39mm
Weight	70g	80g
