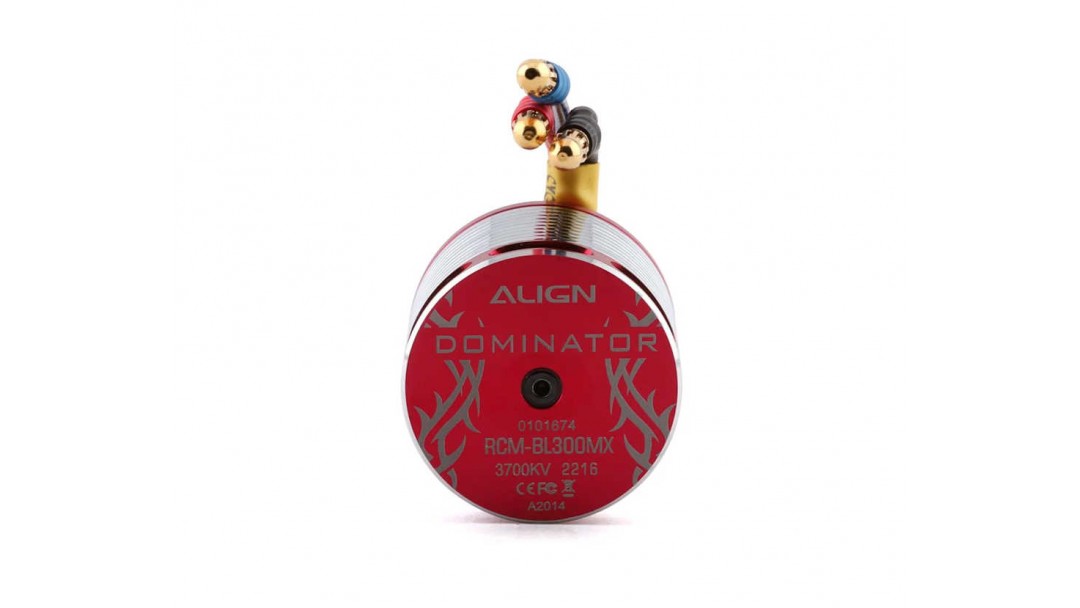

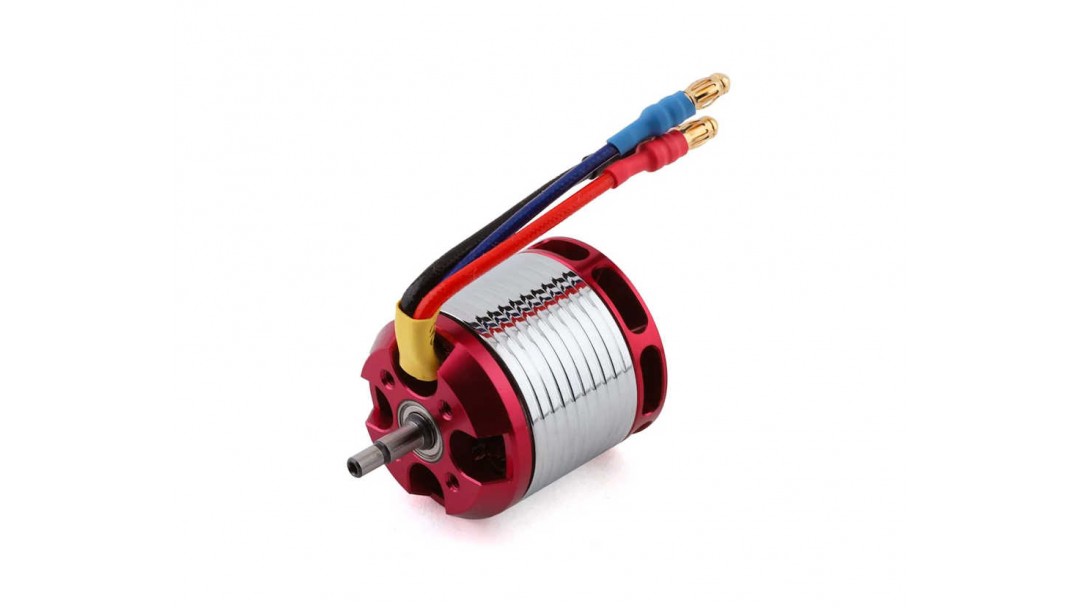

ALIGN 300MX Brushless Motor 3700KV-2216 (Click the Specification Tab Above for Details)

Suitable for T-REX 300X RC Helicopter Electric Series, Similar Class Size RC Helicopter

Recommended ESC: 25A

  • Based on 3s voltage, the 300MX (3700KV) motor is tailor made for the T-Rex 300 DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature.
  • As a totem to the 850MX Dominator motor, The 300MX shares the same extraordinary pedigree.
  • Even for the none 3D pilots, 300MX 3S motor utilizes less than 5 amps at hover. Not only does this require smaller C-rating packs, the lower temperature extends the battery life at the same time. Charging time basically is cut in half. These advantages makes this an ideal motor for just about everyone.
  • The 300MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
  • The 300MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
  • Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet.
  • Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.

HML30M01 Manual Download

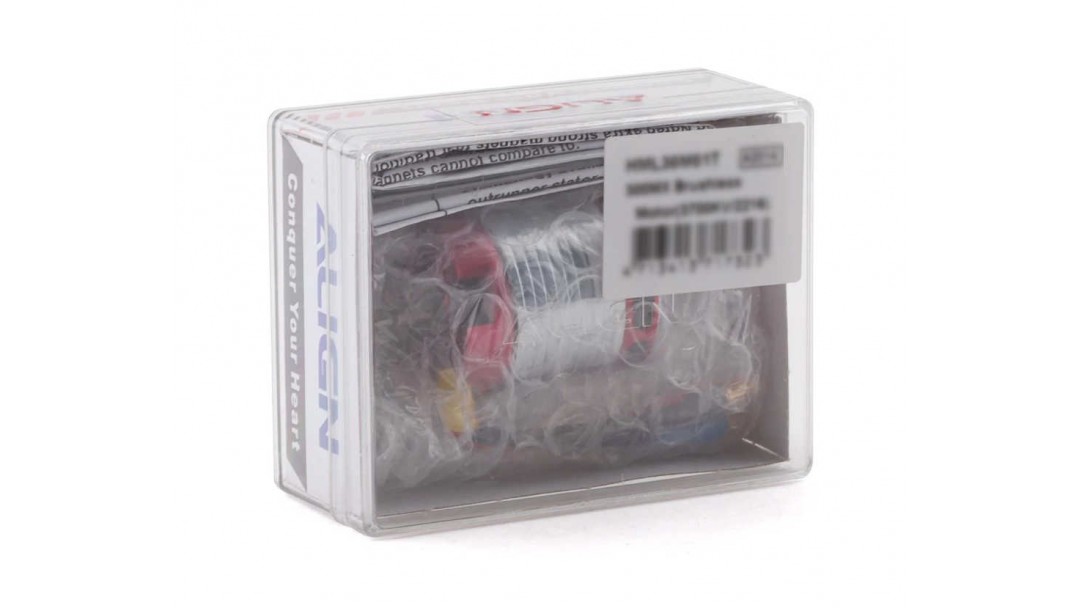

Package Includes

300MX Brushless Motor 3700KV-2216 x 1

Socket Screw x 2 (M2.5x6mm)

ALIGN Standard 3.5mm gilt terminal x 3 set (Max current 50A)

Motor Specification
KV Value 3700KV
Input Voltage 3S
Stator Diameter 21.9mm
Stator Thickness 16mm
Stator Arms 9
Magnet Poles 6
Max Continuous Current 24A
Max Instantaneous Current 36A (5sec/5)
Max Continuous Power 260W
Max Instantaneous Power 400W (5sec/5)

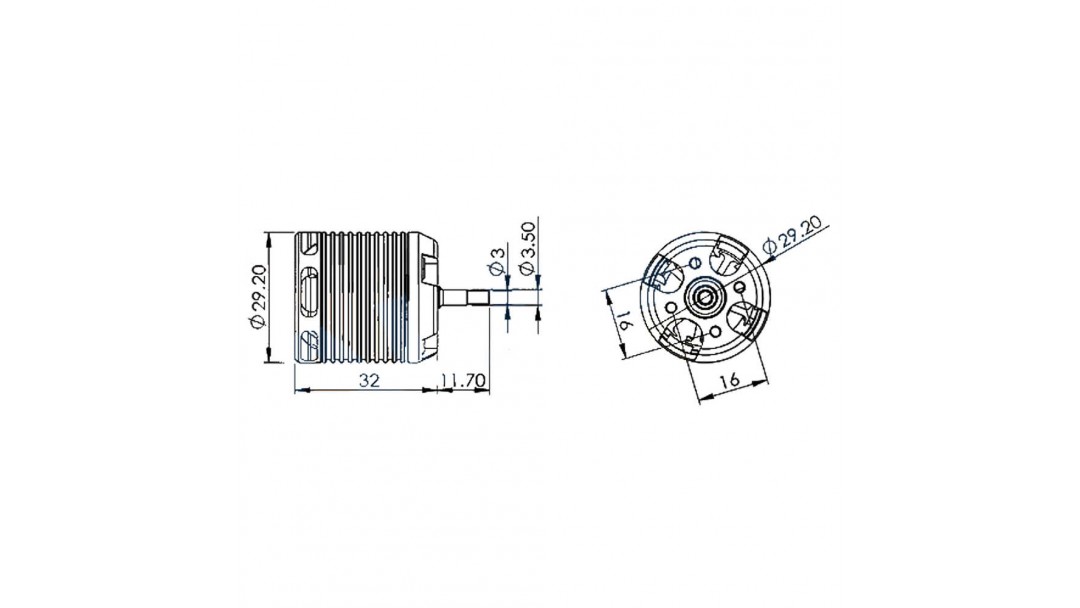

Dimension 3.5x29.2x43.7mm
Weight 70g - 2.47oz
