ALIGN DS455 Digital Tail HV Servo.

Great Servo for RC Helicopters, Planes, and Cars

Suitable for T-REX 250, 300X, 450, 450PRO, 450L, 470L, 470LT Series or Similar Size RC Helicopter

Product Information

Faster Speed with High Torque Performance

Precision Control

High Rigidity, Shock Resistant

Metal Gears

Aluminum Alloy Mid Case for Instantaneous Heat Dissipation to Maintain High Efficiency

Supports Digital & Analog Control Signal

Powerful and Precise Servo Suitable for 250 - 470 Class Size CCPM Cyclic Use

Gear Replacement

DS450 Servo Gear Set - HSP45002

Servo Case Replacement

DS450-455 Upper Lower Cover - HSP45004

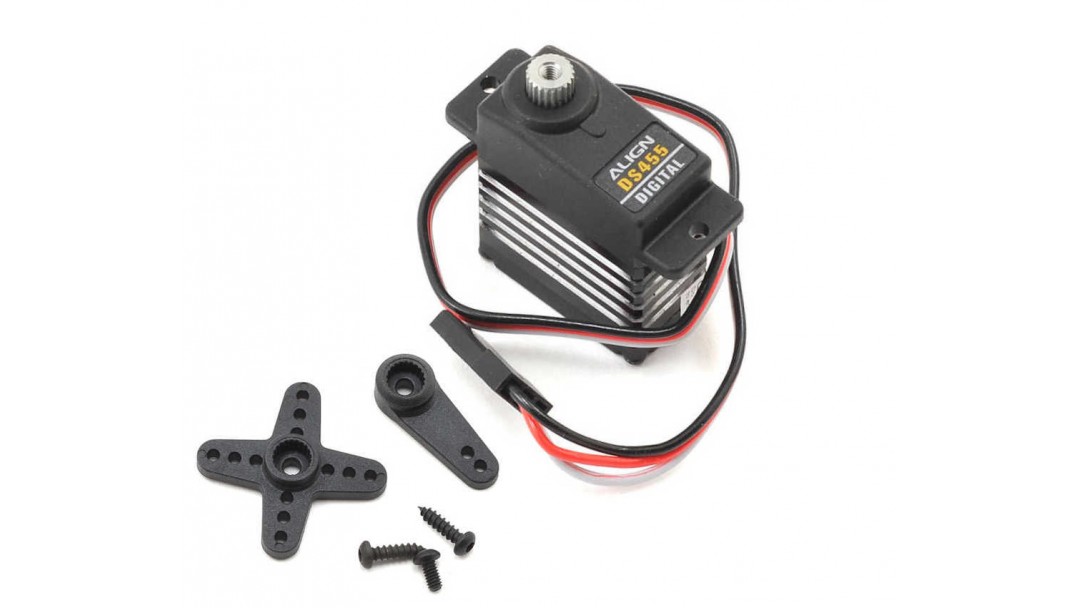

Package Includes

DS455 Digital Servo x 1

Socket Button Head Self Tapping Screw x 2

Socket Screw x 1

Servo Arm x 2

Servo Specs
Cyclic Servo	YES
Tail Servo	YES
RC Use	YES
Case	Metal and Composite Material
Gear Set	Metal
Voltage Range	6.0-8.4V DC
Stall Torque	2.2kg.cm (6.0V) - 2.9kg.cm (8.4V)
Motion Speed	0.05sec/60° (6.0V) - 0.04sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C
Swashplate Frequency	200Hz
Rudder Frequency	333Hz
Pulse Length	1520µs
Dimension	23 x 12 x 31.3mm
Weight	17.3g

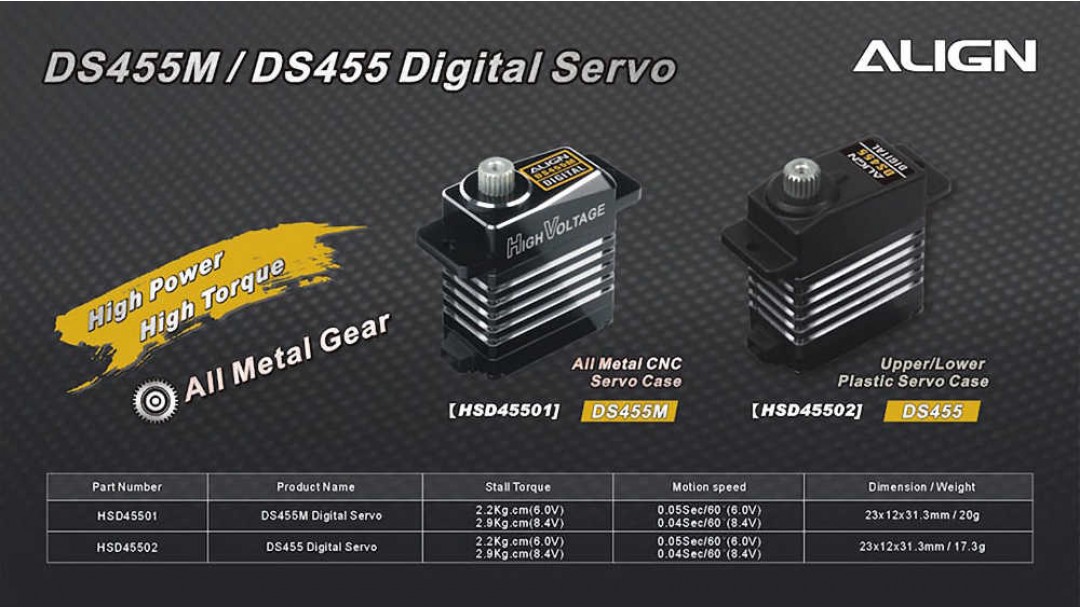

	ALIGN DS455 Digital Tail HV Servo Plastic / Metal Case	T-REX DS455M Digital Tail HV Servo All Metal Case
Price	$33.99	$43.99
Rating
General
Product Name	DS455 Digital Tail HV Servo	DS455M Digital Tail HV Servo
SKU	HSD45502	HSD45501
Specification
Cyclic Servo
Tail Servo
RC Use
Case	Metal and Composite Material	All Metal
Gear Set	Metal	Metal
Voltage Range	6.0-8.4V DC	6.0-8.4V DC
Stall Torque	2.2kg.cm (6.0V) - 2.9kg.cm (8.4V)	2.2kg.cm (6.0V) - 2.9kg.cm (8.4V)
Motion Speed	0.05sec/60° (6.0V) - 0.04sec/60° (8.4V)	0.05sec/60° (6.0V) - 0.04sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C	-20°C ~ +60°C
Swashplate Frequency	200Hz	200Hz
Rudder Frequency	333Hz	333Hz
Pulse Length	1520µs	1520µs
Dimension	23 x 12 x 31.3mm	23 x 12 x 31.3mm
Weight	17.3g	20g
