Select the "Specification" Tab Above for TB40 Specs

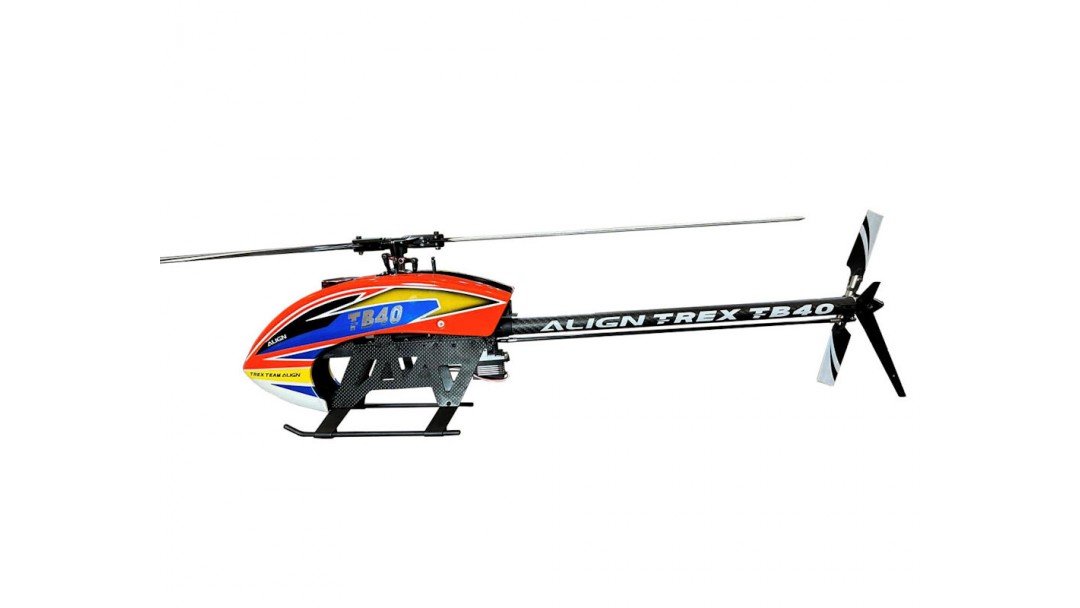

All-New ALIGN T-REX TB40 Combo 6S RH40E01XW is specially designed for basic flight and those extreme 3D flight addicts. Where do you rate your flight skills or strive to be? Many people confuse Basic, Scale, and 3D flight. When in reality the difference is flight skills based on orientation, practice, and speed of sick movement.

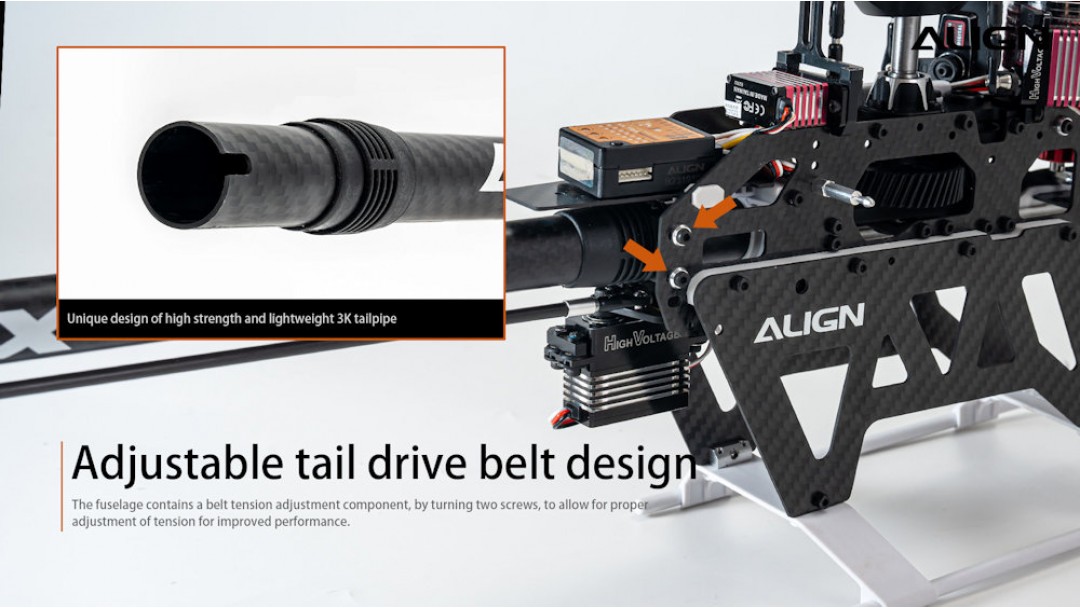

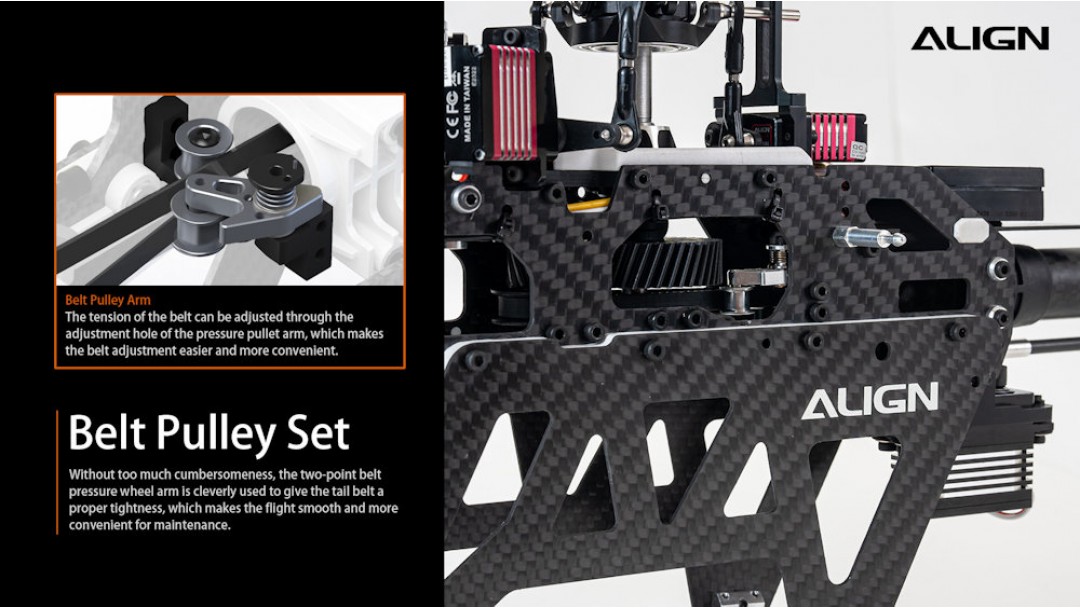

Efficient Belt-Drive Design

Integrated Composite Material Side Plates Engineered with Propitiatory Embedding Technology

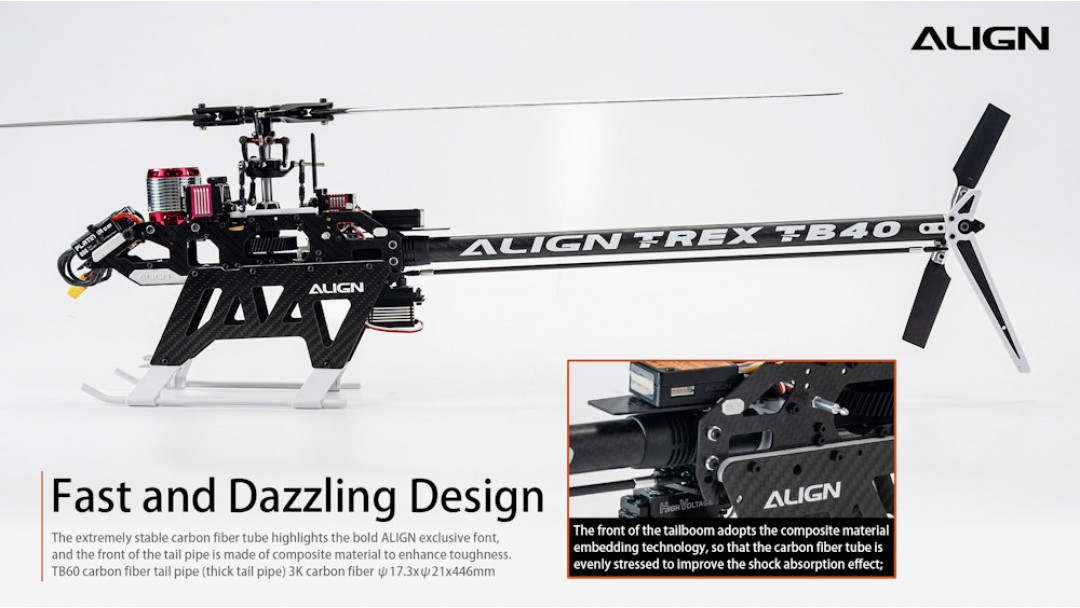

New Streamline Designed TB40 Canopy "Light But Tough"

TB40 Manual Download

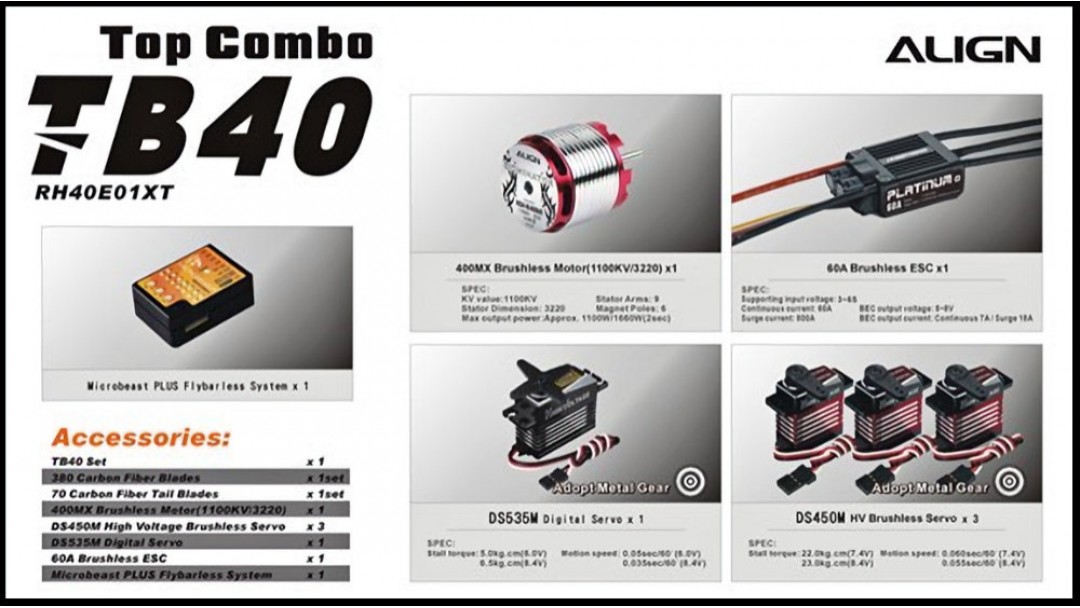

Standard TB40 Top Combo Equipment

TB40 Kit x 1

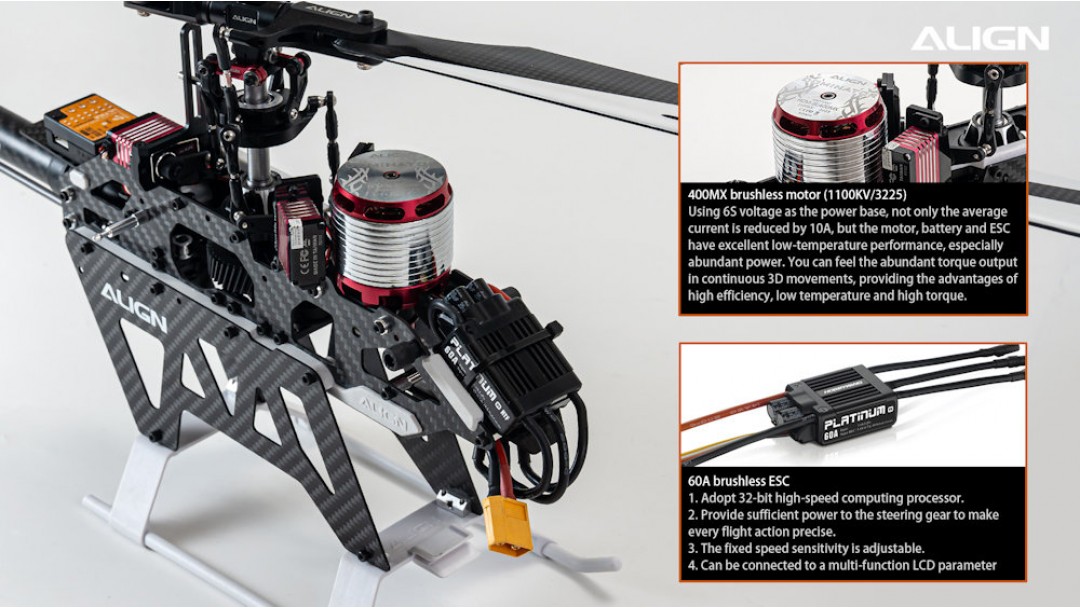

60A Brushless ESC x 1

400MX Brushless Motor (1100KV/3220) x 1

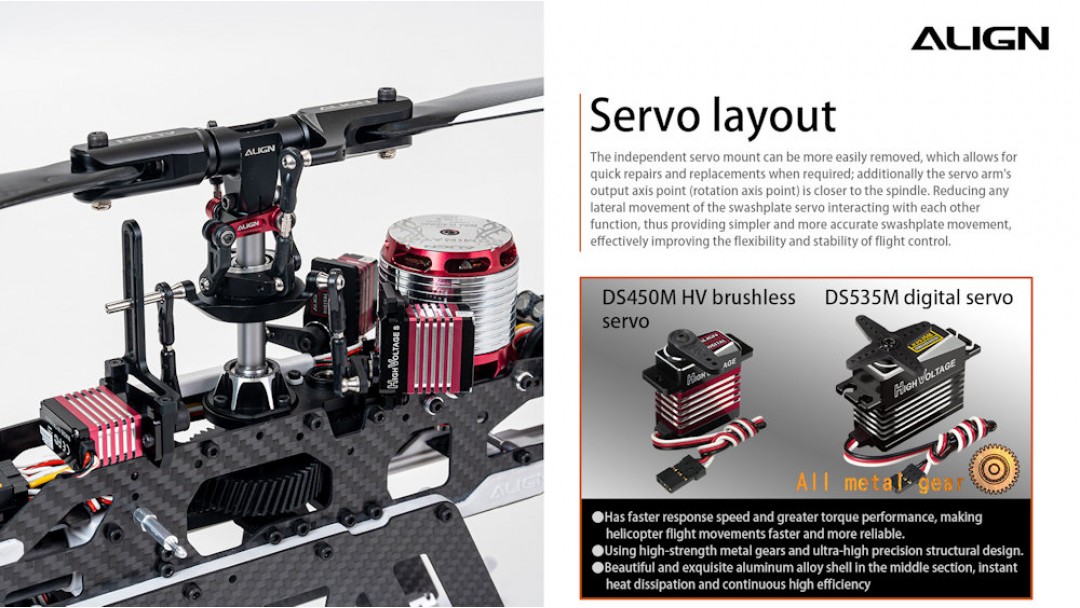

DS450M Digital Servo x 3

DS535M Digital Servo x 1

380 Carbon Fiber Blades x 1 set

70 Carbon Fiber Tail Blades x 1

MICROBEAST² Flybarless System x 1

Standard Equipment
Kit TB40 Top Combo
Model RH40E01XW (RH40E01XT)
Main Blades ALIGN 380mm
Tail Blades ALIGN 380mm

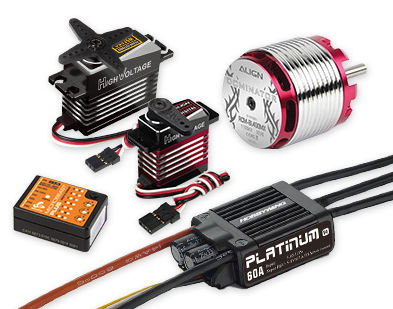

Electronics Included
ESC Platinum 60A
ESC Programing Multifunction Programmer HES00001 (Sold Separately)
Motor ALIGN 400MX Brusheless Motor (1100KV/3225)
Cyclic Servo ALIGN DS450 Digital Servo X 3
Tail Servo ALIGN DS535M Digital Servo
Servo Gears Metal
Servo Case ALL Metal
Flybarless System Microbeast by Beastx
Flybarless Programming Lights & Dials, or Studiox APP using Optional USB or Bluetooth Device
Stabilization Level Mode Optional Update
Rescue Mode Optional Update
Receiver Supported DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver
Specification
Assembly Required Yes
Length 747mm
Height 223mm
Width 103mm
Main Blade Length 380mm
Main Rotor Diameter 851mm
Tail Blade Length 70mm
Tail Rotor Diameter 188mm
Motor Input Voltage 6S
Motor Belt Pulley 22T
Tail Drive System Belt
Drive Gear Ratio 6.44:1:4.04
Max RPM (approx.) 3400RPM
Weight (Without Battery) 953g
Battery Size 22.2V 6S 1850~2200mAh Li-Po Battery
ALIGN TB40 Top Combo

ALIGN TB40 Top Combo

ALIGN TB40 Kit

ALIGN TB40 Kit

Price $588.99 $529.99 $334.99 $299.99
Rating
General
Kit TB40 Top Combo TB40 kit
Model RH40E01XW (RH40E01XT) RH40E06XW (RH40E06XT)
Specification
Main Blades ALIGN 380mm ALIGN 380mm
Tail Blades ALIGN 380mm ALIGN 380mm
ESC Platinum 60A
ESC Programing Multifunction Programmer HES00001 (Sold Separately)
Motor ALIGN 400MX Brusheless Motor (1100KV/3225) ALIGN 400MX Brusheless Motor (1100KV/3225)
Cyclic Servo ALIGN DS450 Digital Servo X 3
Tail Servo ALIGN DS535M Digital Servo
Servo Gears Metal
Servo Case ALL Metal
Flybarless System Microbeast by Beastx
Assembly Required
Length 747mm 747mm
Height 223mm 223mm
Width 103mm 103mm
Main Blade Length 380mm 380mm
Tail Blade Length 70mm 70mm
Motor Input Voltage 6S 6S
