ALIGN TB60 Kit
TB60 Manual Download
All-New ALIGN T-REX TB60 Kit RH70E31XW is specially designed for basic flight and those extreme 3D flight addicts.
Install your preferred electronics, ESC, Brushless Motor, Cyclic and Tail Servos, Flybarless Gyro and receiver.
Where do you rate your flight skills or strive to be? Many people confuse Basic, Scale, and 3D flight. When in reality the difference is flight skills based on orientation, practice, and speed of sick movement.

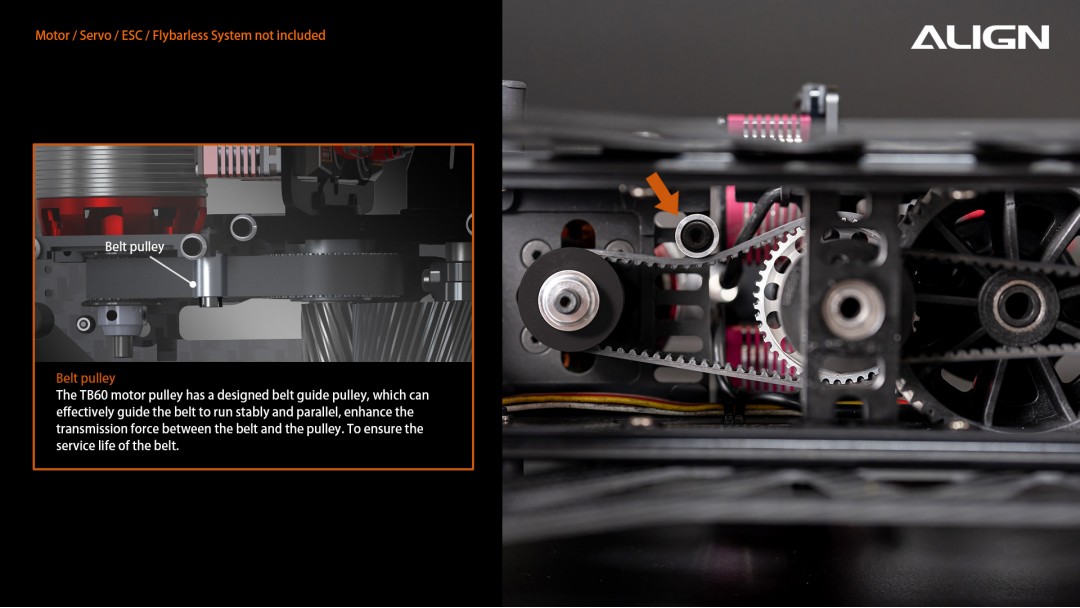

Efficient Belt-Drive Design
Integrated Composite Material Side Plates Engineered with Propitiatory Embedding Technology
Lighter, Quieter, and Stronger compared to Prior ALIGN TREX 600 Models
New Streamline Designed TB60 Canopy
Upgraded Canopy Mounting System
| Standard Equipment | |
| Kit | TB60 Combo Kit |
| Model | RH60E31XW |

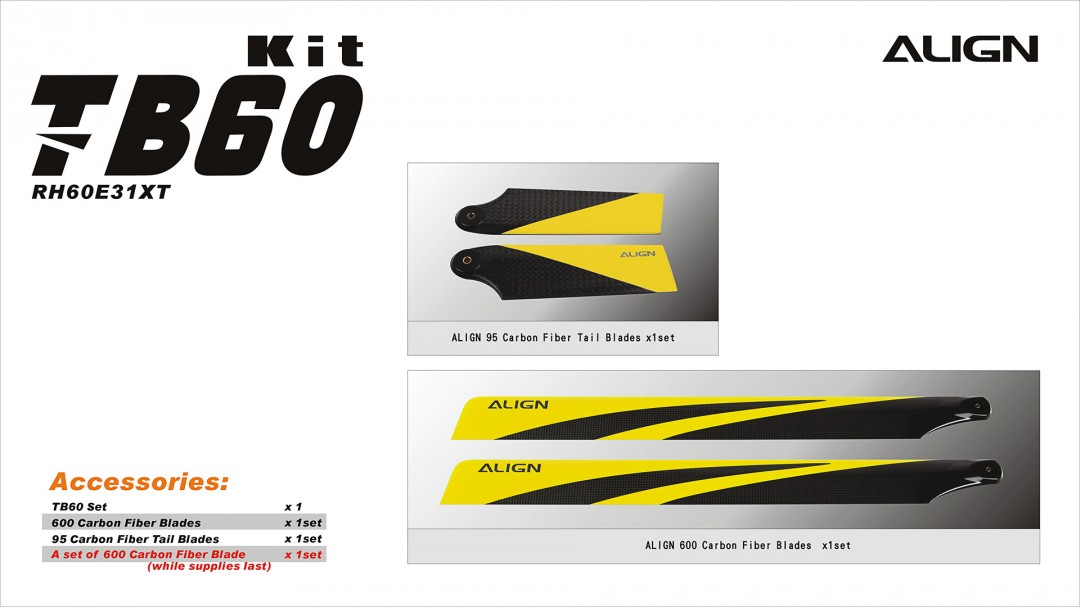

| Main Blades | ALIGN 600mm Carbon Fiber |
| Tail Blades | ALIGN 95mm Carbon Fiber |
| Specification | |
| Assembly Required | Yes |

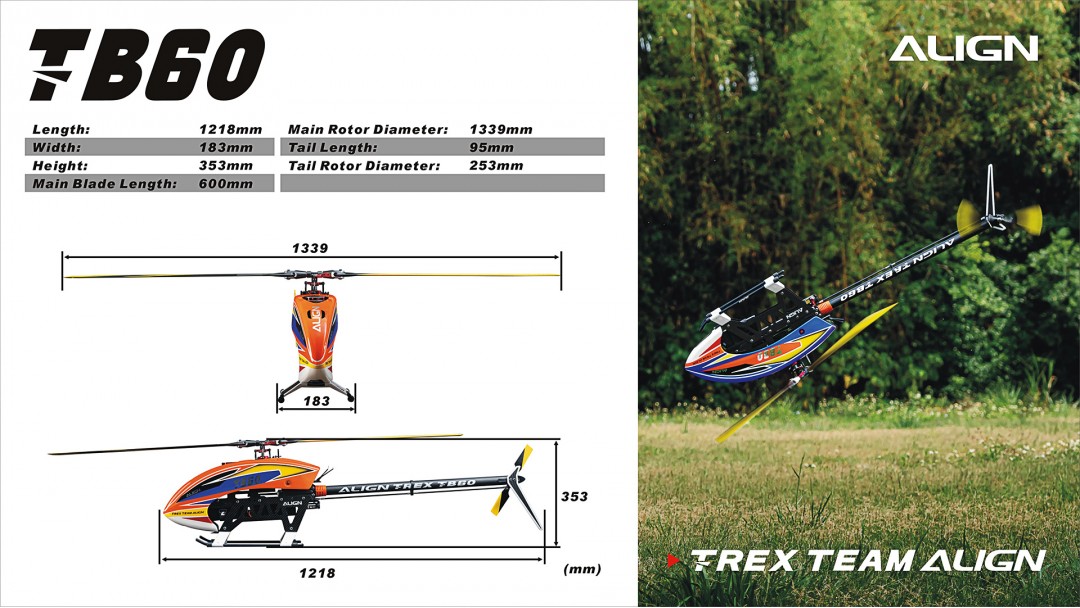

| Length | 1218mm - 47.95In |
| Height | 353mm - 13.90In |
| Width | 183mm - 7.20In |
| Main Blade Length | 600mm - 23.62In |
| Main Rotor Diameter | 1339mm - 52.72In |
| Tail Blade Length | 95mm - 3.74In |
| Tail Rotor Diameter | 253mm - 9.96In |
| Motor Input Voltage | 12S |
| Motor Belt Pulley | 23T |
| Main Drive Gear | 62T |
| Autorotation Driver Gear | 28T |
| Main Drive Pulley | 44T |
| Tail Drive Gear | 23T |

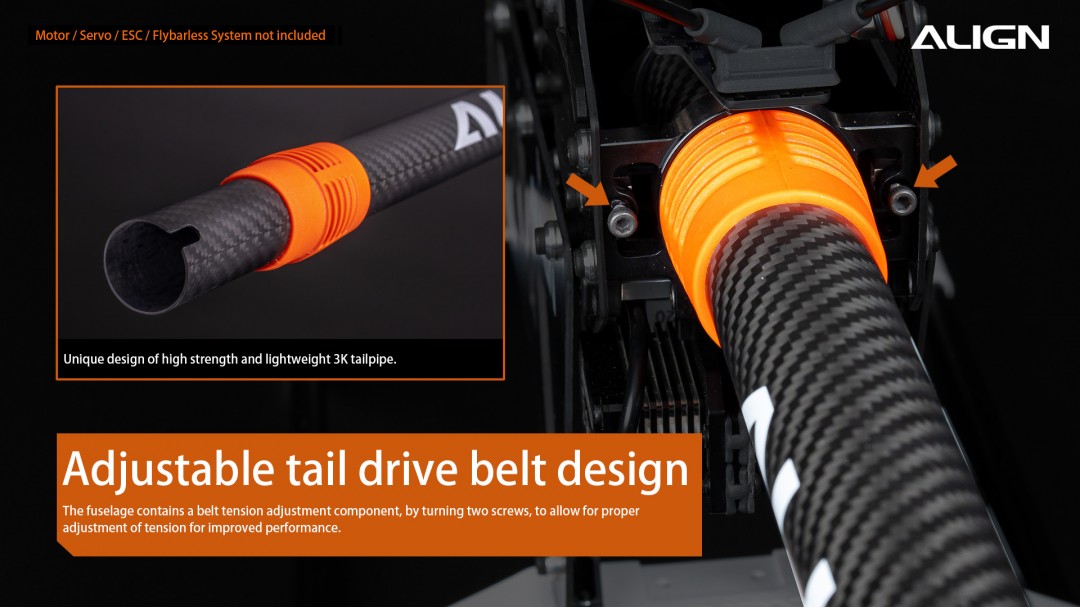

| Tail Drive System | Belt |
| Drive Gear Ratio | 7:89 : 1 : 5.04 |
| Max RPM (approx.) | 2400 |
| Weight (Without Battery) | 2.9kg - 6.39Lbs |
| Battery Size | 6S Li-Po 2600 ~ 4600mAh Recommend 3300mAh |
ALIGN TB60 Kit RH60E31XW
- Brand ALIGN
- Product Code: 01-RH60E31XW
- Availability: In Stock
- $659.99
-
$579.99
