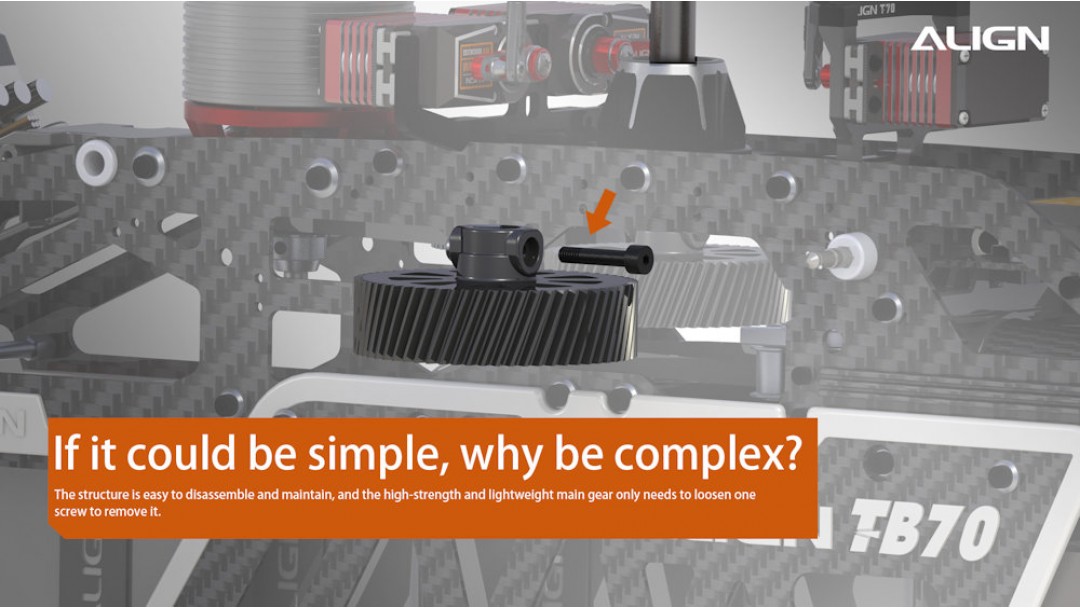

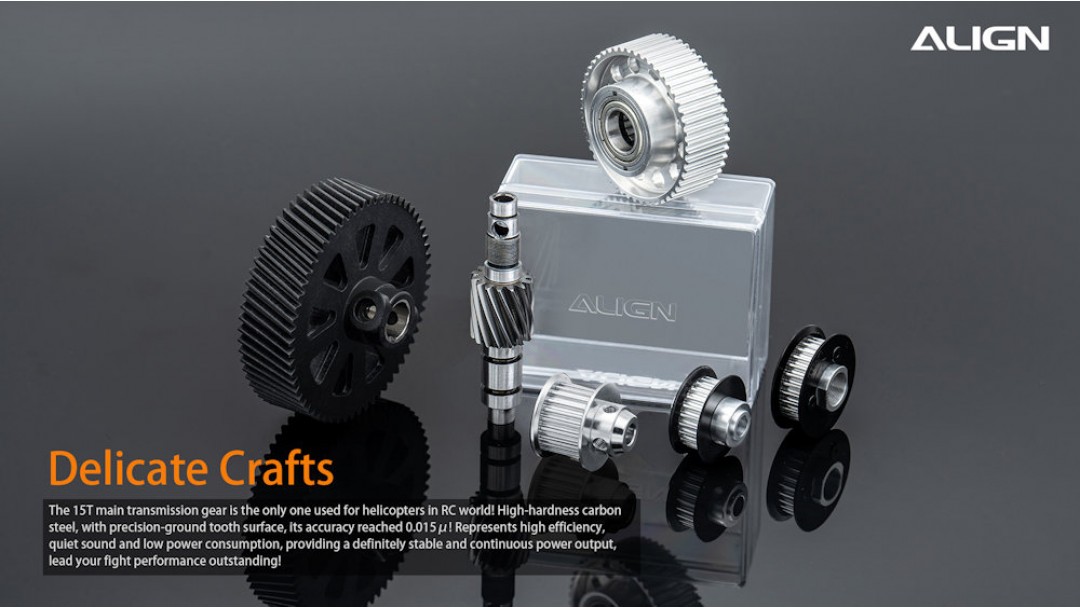

Includes: Updated Pinon, Main Drive Gear, and 15mm Belt

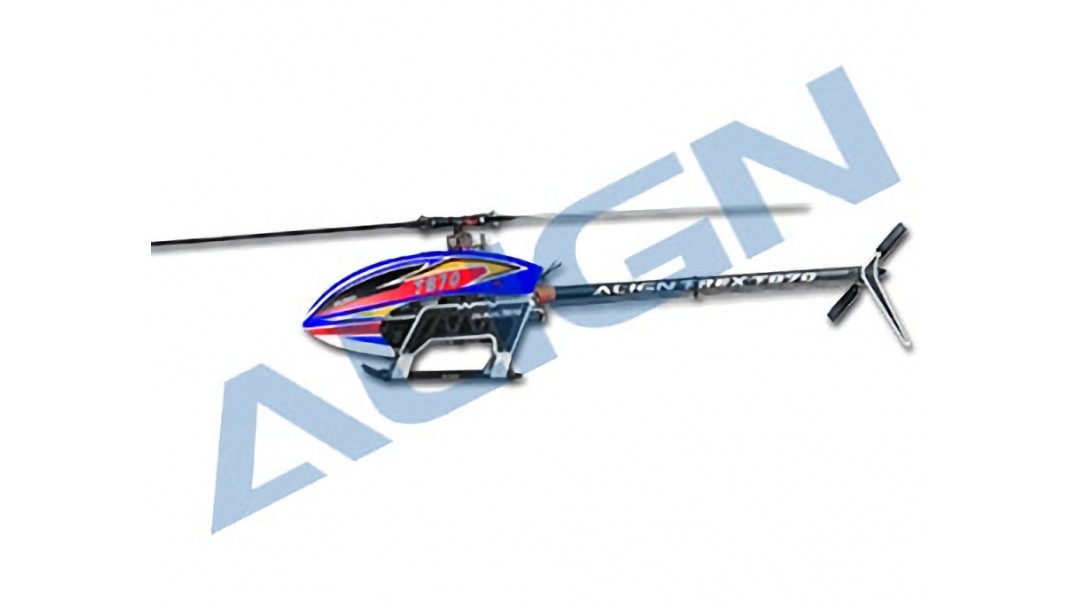

ALIGN TB70 Top Combo (T-REX)

TB70 Manual Download

All-New ALIGN T-REX TB70 Top Combo RH70E52 is specially designed for extreme 3D flight addicts.

Efficient Belt-Drive Design

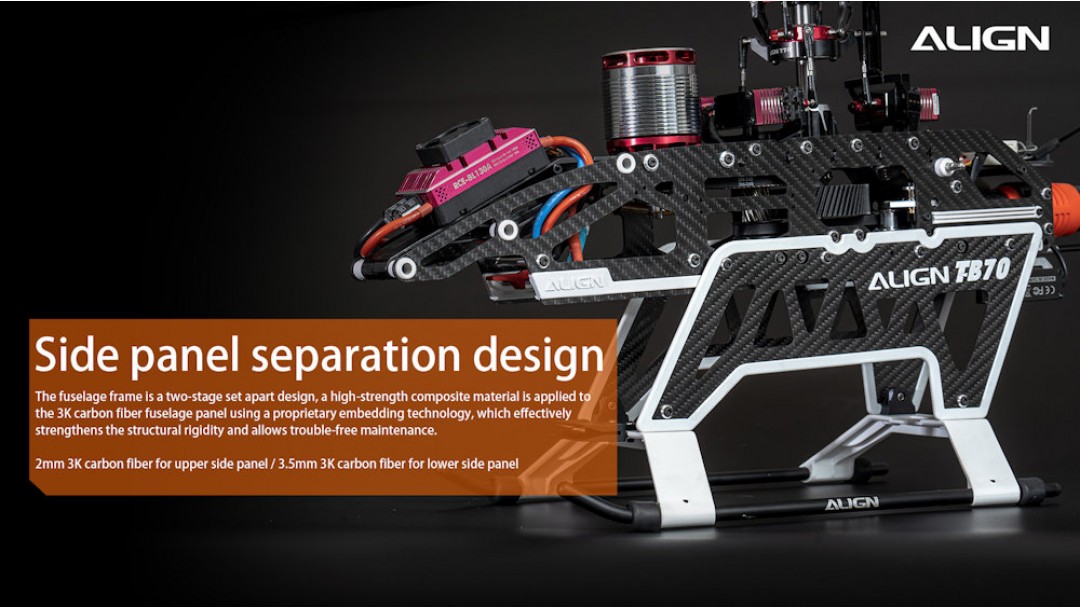

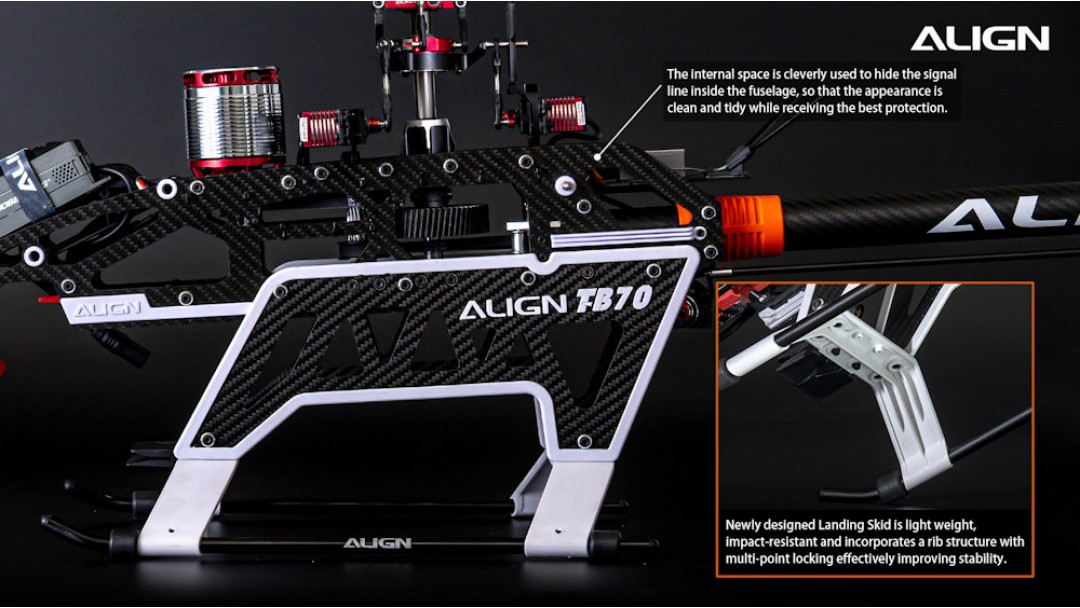

Integrated Composite Material Side Plates Engineered with Propitiatory Embedding Technology

Lighter, Quieter, and Stronger compared to Prior ALIGN TREX 700 Models

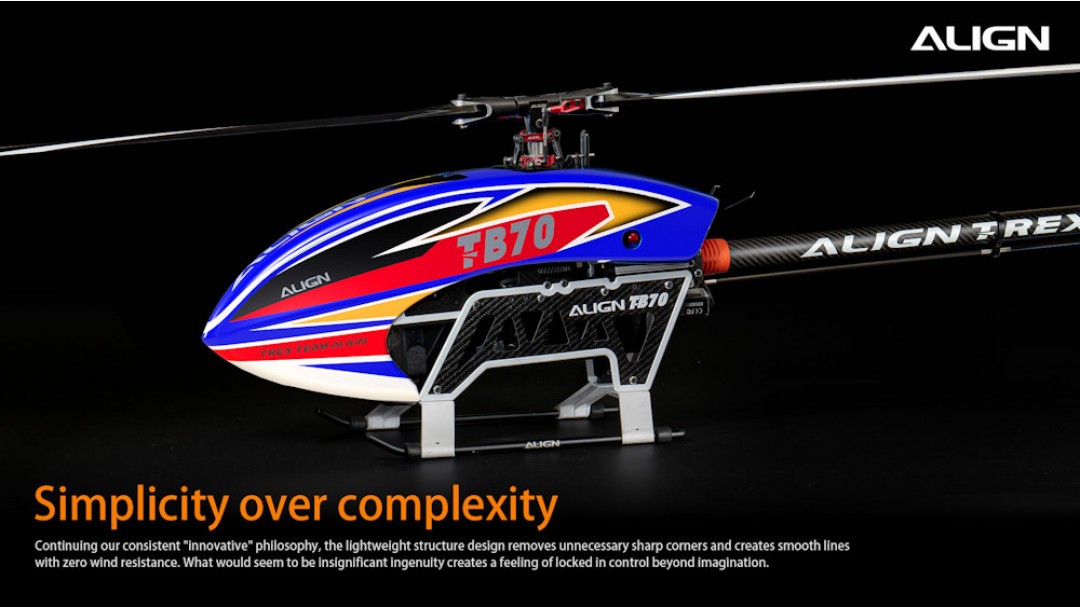

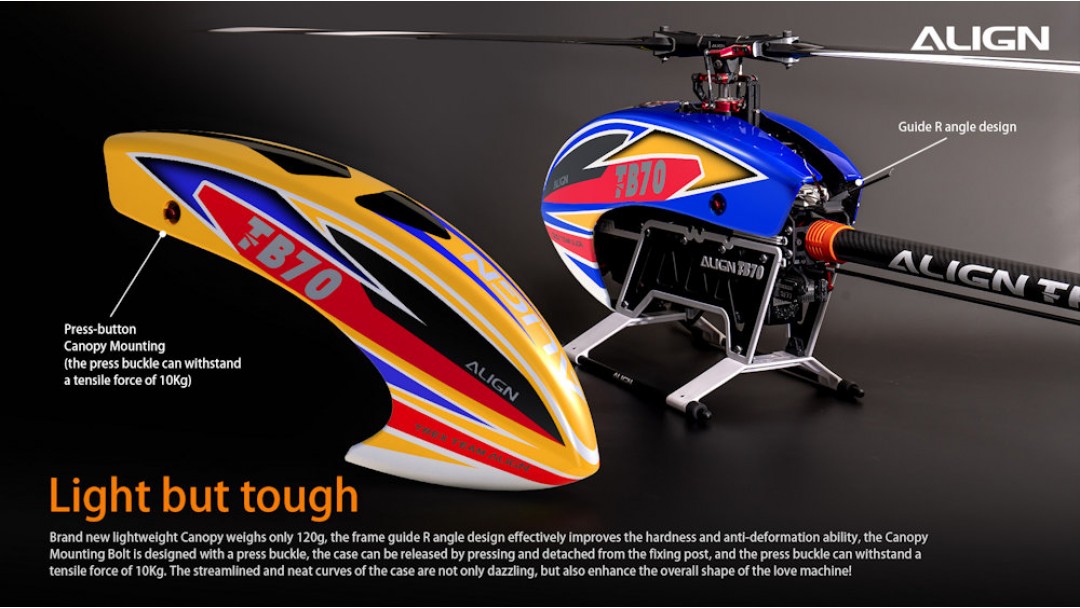

New Streamline Designed TB70 Canopy

Upgraded Canopy Mounting System

Standard Equipment
Kit TB70 Top Combo Blue / Red
Model RH70E53XW
Main Blades ALIGN 700mm
Tail Blades ALIGN 105mm

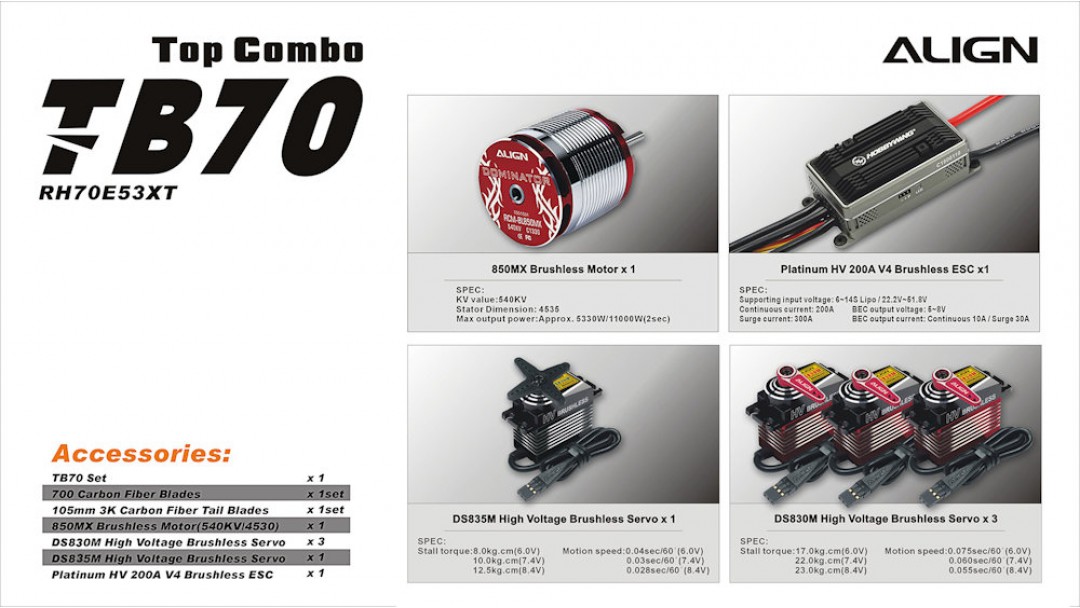

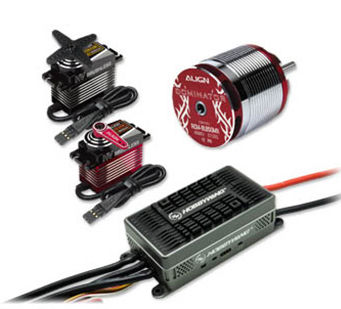

Electronics Included
ESC RCM-BL200A Hobbywing Platinum HV 200A V4 ESC
ESC Programing ALIGN ASBOX Multifunction Programmer HES00001 (Sold Separately)

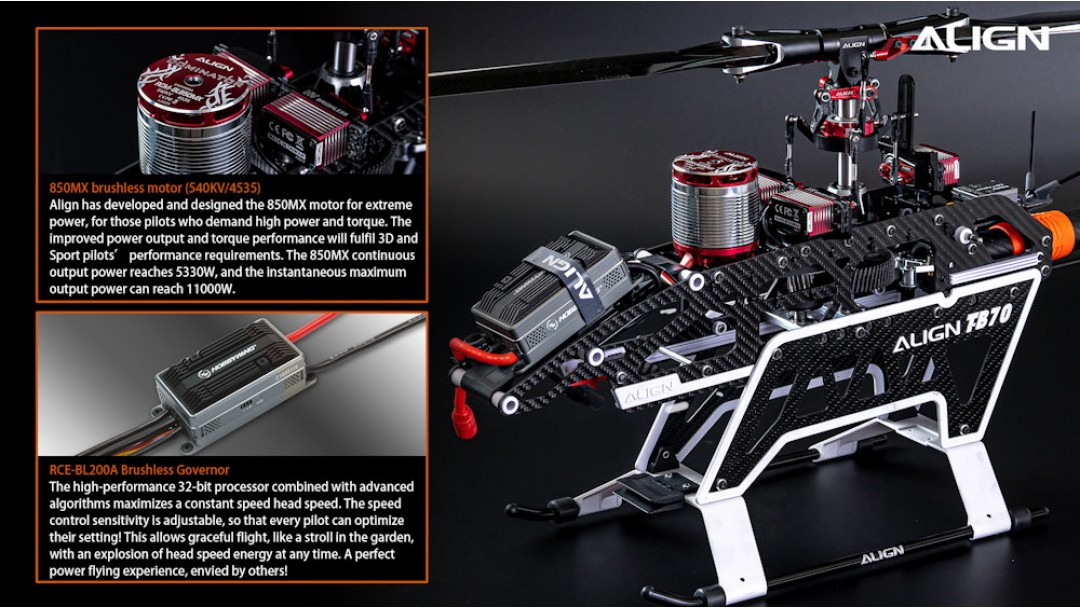

Motor ALIGN 850MX Brushless Motor (540KV/4535)

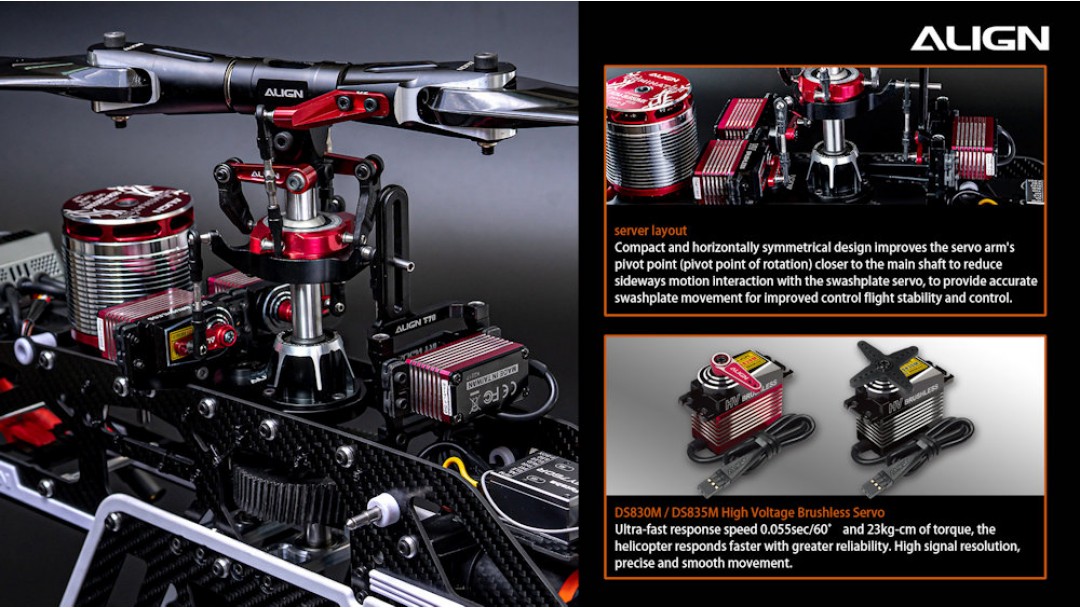

Cyclic Servo ALIGN DS820M HV Digital Servo x 3
Tail Servo ALIGN DS825M HV Digital Servo
Servo Gears Metal
Servo Case Metal
Flybarless System (Sold Separately) Recommend Beastx

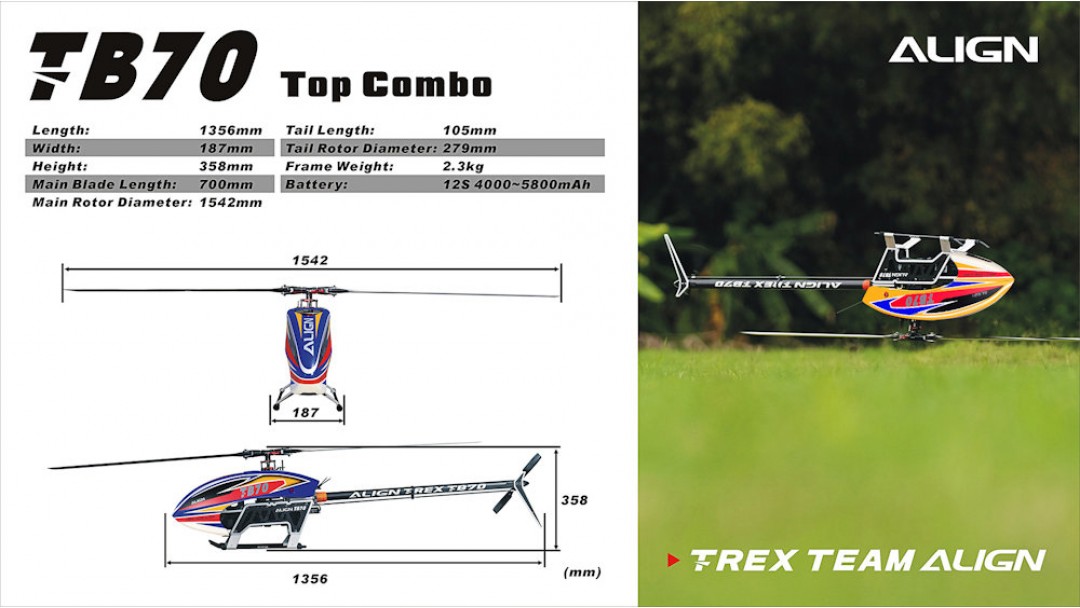

Specification
Assembly Required Yes
Length 1356mm - 53.39in
Height 358mm - 14.09in
Width 187mm - 7.36in
Main Blade Length 650 - 730mm
Main Rotor Diameter 1542mm - 60.71in
Tail Blade Length 105 - 115mm
Tail Rotor Diameter 279mm - 10.98in
Motor Input Voltage 12S

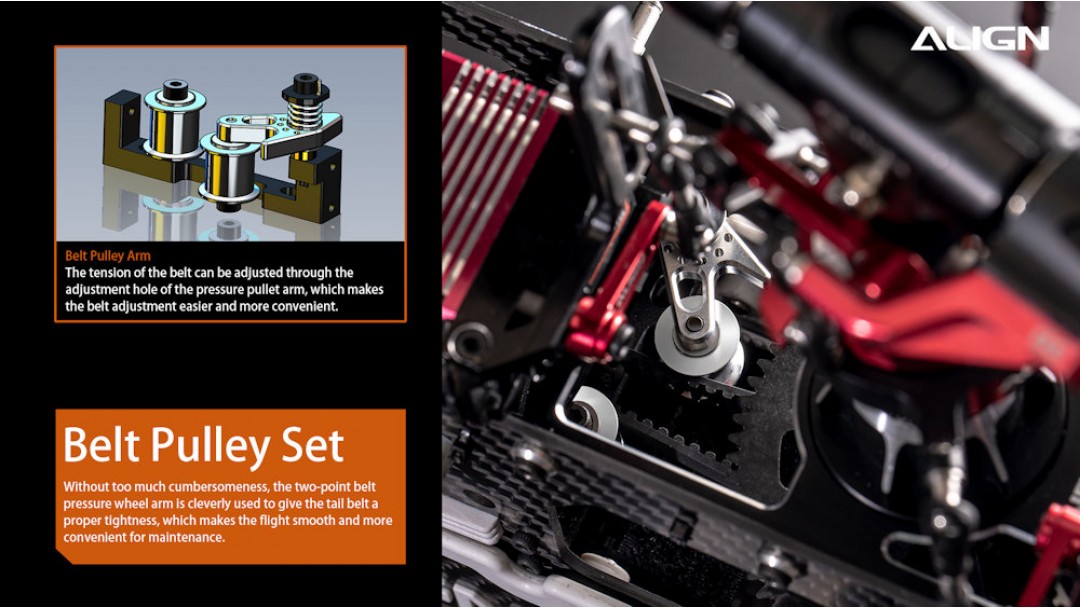

Motor Belt Pulley 22T

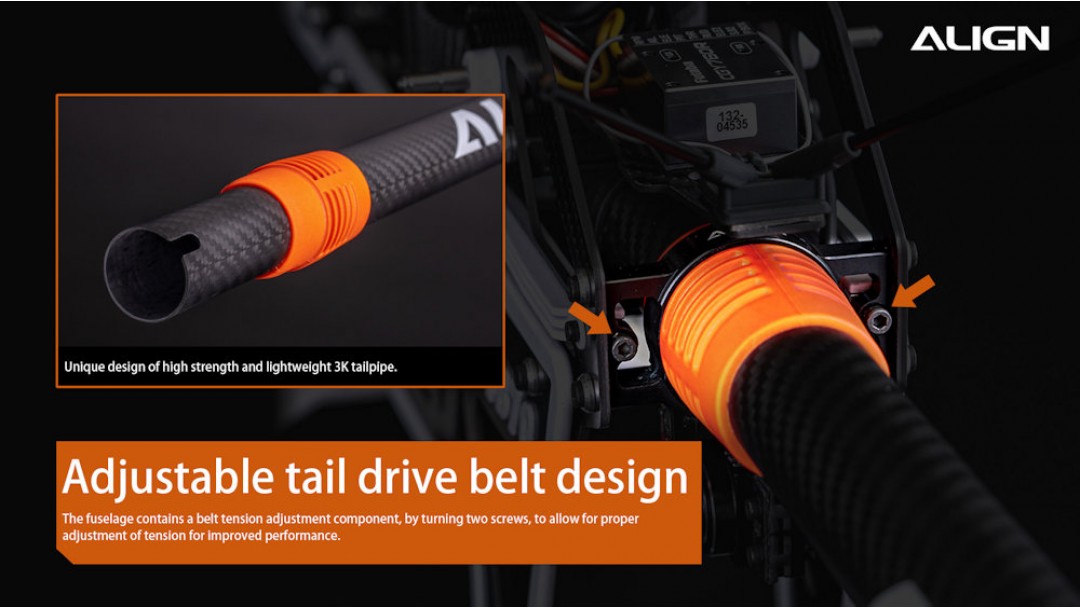

Tail Drive System Belt
Drive Gear Ratio 9.38 : 1 : 4.83
Max RPM (approx.) 2400 RPM
Weight Flying (with battery) Approx 5kg - 11.02lbs (Battery Align 12 5200mAh)

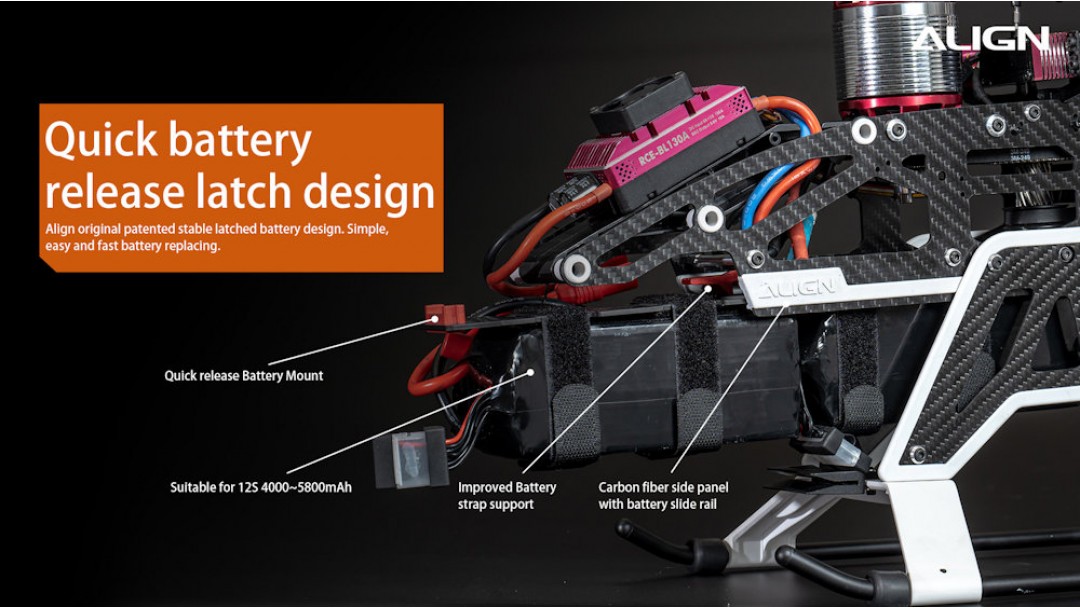

Battery Size 12S 4000 - 5800mAh

Write a review

Please login or register to review

ALIGN T-REX TB70 Top Combo (Blue / Red) RH70E52XW

  • Brand ALIGN
  • Product Code: 01-RH70E53XW
  • Availability: In Stock
  • $1,838.99
  • $1,599.99
