ALIGN TB70 v2 Top Combo (T-REX)
TB70 Manual Download
|
ALIGN T-REX TB70 v2 Top Combo is designed for extreme 3D flight addicts and recreational pilots. Efficient Belt-Drive Design Integrated Composite Material Side Plates Engineered with Proprietary Embedding Technology Lighter, Quieter, and Stronger compared to Prior ALIGN TREX 700 Models New Streamline Designed TB70 Canopy Upgraded Canopy Mounting System |
|
| Standard Equipment | |
| Kit | TB70 Top Combo (Orange) |
| Model | RH70E67XW |
| Main Blades | ALIGN 700mm |
| Tail Blades | ALIGN 105mm |

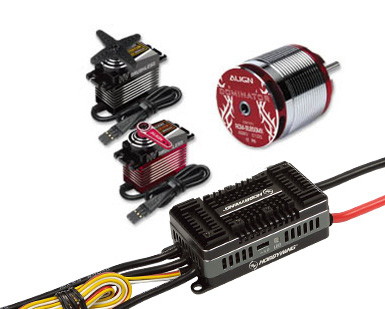

| Electronics Included | |
| ESC | RCE-BL260A Hobbywing Platinum HV 260A V5 ESC |
| ESC Programing | ALIGN ASBOX Multifunction Programmer HES00001 (Sold Separately) |
| Motor | ALIGN 850MX Brushless Motor (540KV/4535) |
| Cyclic Servo | ALIGN DS820M HV Digital Servo x 3 |
| Tail Servo | ALIGN DS825M HV Digital Servo |
| Servo Gears | Metal |
| Servo Case | Metal |
| Flybarless System | (Sold Separately) Recommend Beastx |
| Specification | |
| Assembly Required | Yes |
| Length | 1356mm - 53.39in |
| Height | 358mm - 14.09in |
| Width | 187mm - 7.36in |
| Main Blade Length | 650 - 730mm |
| Main Rotor Diameter | 1542mm - 60.71in |
| Tail Blade Length | 105 - 115mm |
| Tail Rotor Diameter | 279mm - 10.98in |
| Motor Input Voltage | 12S |
| Motor Belt Pulley | 22T - Belt 15mm |
| Tail Drive System | Belt |
| Drive Gear Ratio | 9.38 : 1 : 4.83 |
| Max RPM (approx.) | 2400 RPM |
| Weight Flying (with battery) | Approx 5kg - 11.02lbs (Battery Align 12 5200mAh) |
| Battery Size | 12S 4000 - 5800mAh |
| Standard Equipment | |
| Kit | TB70 Top Combo (Orange) |
| Model | RH70E67XW |
| Main Blades | ALIGN 700mm |
| Tail Blades | ALIGN 105mm |
| Electronics Included | |
| ESC | RCE-BL260A Hobbywing Platinum HV 260A V5 ESC |
| ESC Programing | ALIGN ASBOX Multifunction Programmer HES00001 (Sold Separately) |
| Motor | ALIGN 850MX Brushless Motor (540KV/4535) |
| Cyclic Servo | ALIGN DS820M HV Digital Servo x 3 |
| Tail Servo | ALIGN DS825M HV Digital Servo |
| Servo Gears | Metal |
| Servo Case | Metal |
| Flybarless System | (Sold Separately) Recommend Beastx |
| Specification | |
| Assembly Required | Yes |
| Length | 1356mm - 53.39in |
| Height | 358mm - 14.09in |
| Width | 187mm - 7.36in |
| Main Blade Length | 650 - 730mm |
| Main Rotor Diameter | 1542mm - 60.71in |
| Tail Blade Length | 105 - 115mm |
| Tail Rotor Diameter | 279mm - 10.98in |
| Motor Input Voltage | 12S |
| Motor Belt Pulley | 22T - Belt 15mm |
| Tail Drive System | Belt |
| Drive Gear Ratio | 9.38 : 1 : 4.83 |
| Max RPM (approx.) | 2400 RPM |
| Weight Flying (with battery) | Approx 5kg - 11.02lbs (Battery Align 12 5200mAh) |
| Battery Size | 12S 4000 - 5800mAh |

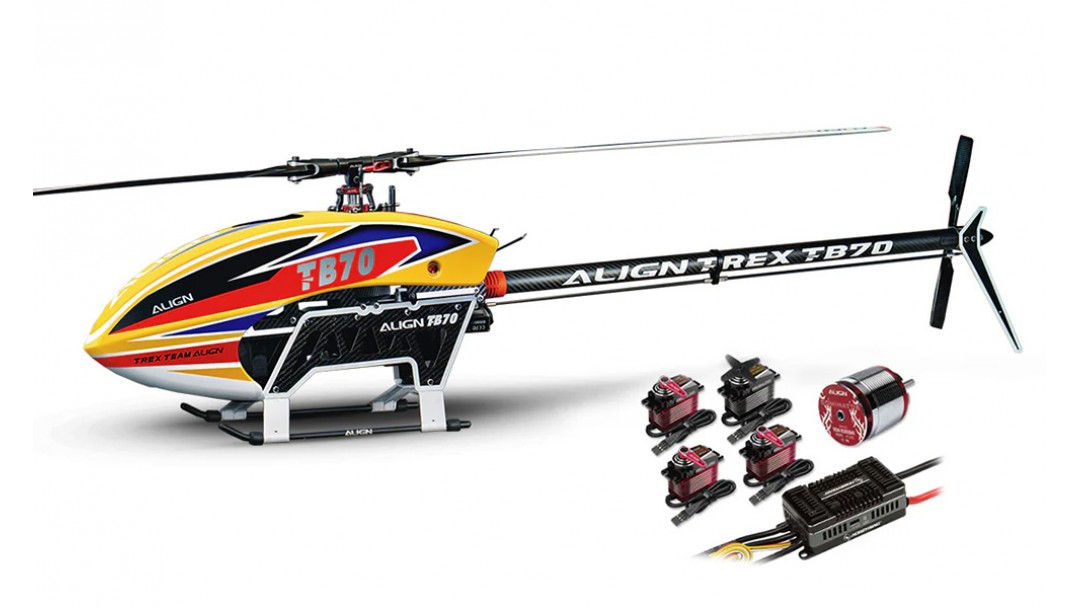

ALIGN TB70 v2 Electric Helicopter Top Combo (Orange) RH70E67XW
- Brand ALIGN
- Product Code: 01-RH70E67XW
- Availability: In Stock
-
$1,838.99
