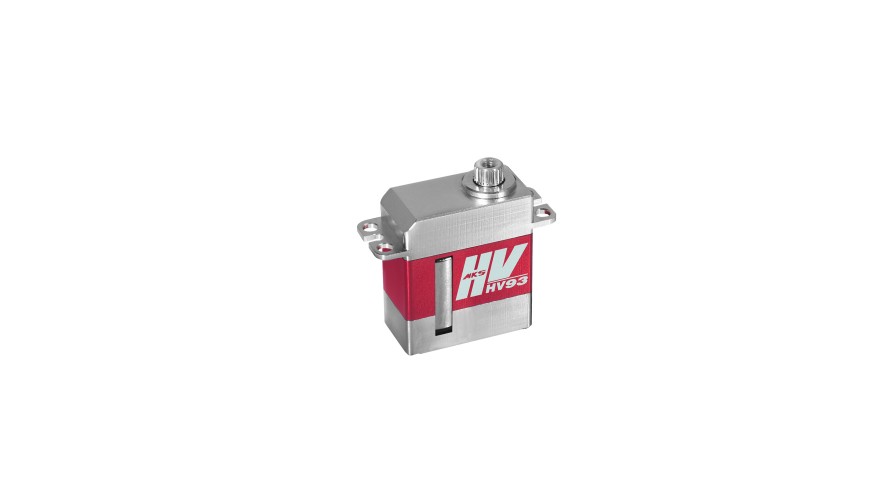

HV93 MKS Brushless Titanium Gear High Speed Digital Servo.

Product Information

For 300, 450, 470 Class RC Helicopters

Recommended Use: RC Helicopter - Cyclic

High Speed Response

Case: All Aluminum

Gears: Meta Alloy

Motor: Coreless

Specifications

  • Dead Band: 0.001ms (Default)
  • Control System: +Pulse Width Control
  • Working Frequency: 1520μs / 333hz
  • Operating Voltage: 6 ~ 8.4 Volts
  • Operating Temperature Range: -10 to + 60 Degree C
  • Operating Speed:
    • @6V: 0.07 sec/60° degrees at no load
    • @7.4V: 0.06 sec/60° degrees at no load
    • @8.4V: 0.05 sec/60° degrees at no load
  • Stall Torque:
    • @6V: 30.6 oz-in (2.2 kg/cm)
    • @7.4V: 38.9 oz-in (2.8 kg/cm)
    • @8.4V: 44.4 oz-in (3.2 kg/cm)
  • 360° Modifiable: NO
  • Motor Type: Coreless Motor
  • Potentiometer Drive: Indirect Drive
  • Bearing Type: Dual Ball Bearings
  • Gear Type: Metal Gears
  • Dimensions: 23x12x27.25mm
  • Weight: 19.87g (0.7oz)

Write a review

Please login or register to review

HV93 MKS Brushless High Speed Digital Cyclic Servo (High Voltage) MKS-HV93

  • Brand MKS
  • Product Code: 52-MKS-HV93
  • Availability: In Stock
  • $69.99
