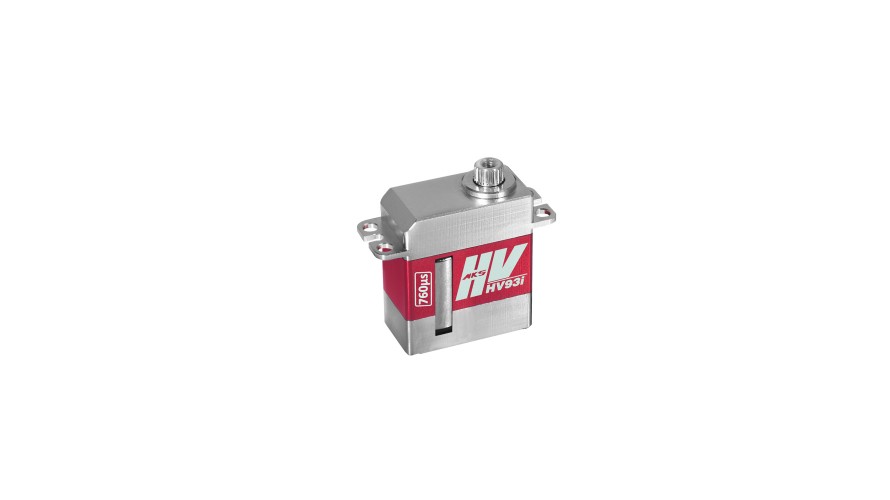

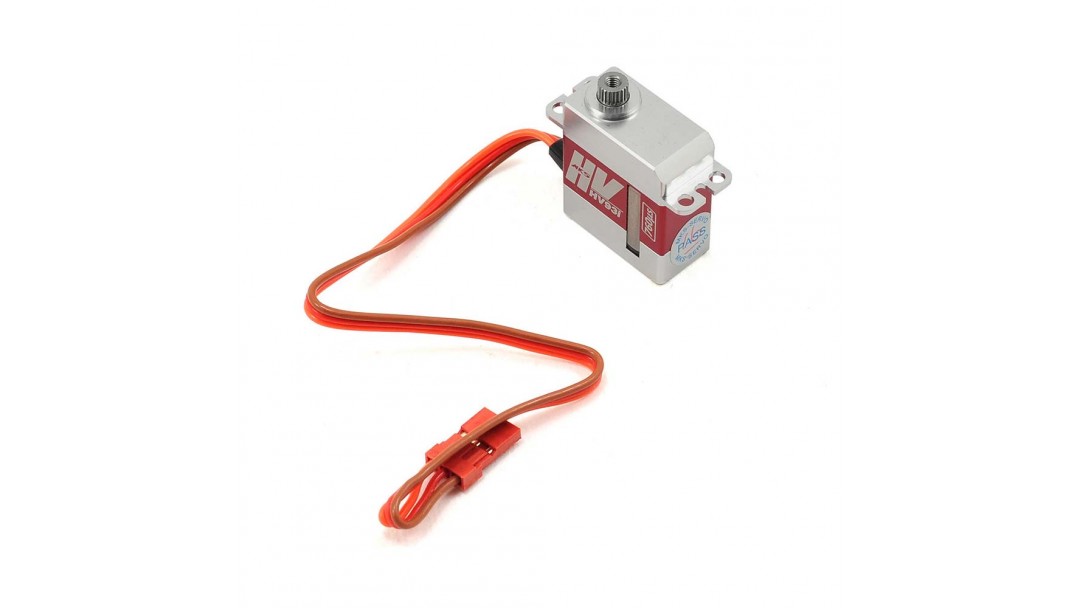

Product Information

For 300, 450, 470 Class RC Helicopters

Recommended Use: RC Helicopter - Tail

High Speed Response

Band: Narrow

Case: All Aluminum

Gears: Chrome-Titanium Alloy

Motor: Coreless

Specifications

• Dead Band: 0.0005ms (Default)
• Control System: +Pulse Width Control
• Working Frequency: 760μs / 560hz
• Operating Voltage: 6 ~ 8.4 Volts
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed:
  • @6V: 0.043 sec/60° degrees at no load
  • @7.4V: 0.035 sec/60° degrees at no load
  • @8.4V: 0.031 sec/60° degrees at no load
• Stall Torque:
  • @6V: 25 oz-in (1.8 kg/cm)
  • @7.4V: 31.9 oz-in (2.3 kg/cm)
  • @8.4V: 36.1 oz-in (2.6 kg/cm)
• 360° Modifiable: NO
• Motor Type: Coreless Motor
• Potentiometer Drive: Direct Drive
• Bearing Type: Dual Ball Bearings
• Gear Type: Metal Gears
• Dimensions: 23x12x27.25mm
• Weight: 19.87g (0.7oz)
