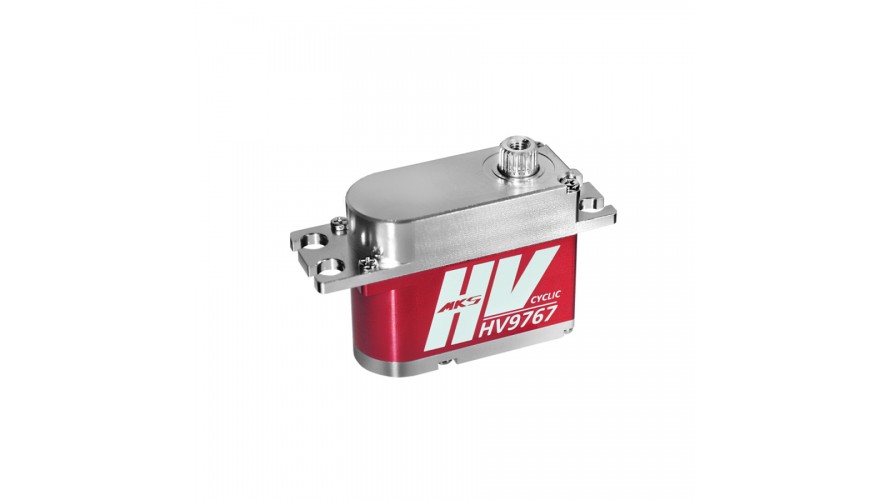

HV9767 MKS Titanium Gear High Speed Digital Servo.

Product Information

For 500, 550 Class RC Helicopters

Recommended Use: RC Helicopter - Cyclic and Nitro Throttle

High Speed Response

Case: All Aluminum

Gears: Titanium

Motor: Coreless

Specifications

  • Dead Band: 0.001ms (Default)
  • Control System: +Pulse Width Control
  • Working Frequency: 1520μs / 333hz
  • Operating Voltage: 6.0 ~ 8.4 Volts
  • Operating Temperature Range: -10 to + 60 Degree C
  • Operating Speed:
    • @6V: 0.090 sec/60° degrees at no load
    • @7.4V: 0.078 sec/60° degrees at no load
    • @8.4V: 0.070 sec/60° degrees at no load
  • Stall Torque:
    • @6V: 94.4 oz-in (6.8 kg/cm)
    • @7.4V: 118 oz-in (8.5 kg/cm)
    • @8.4V: 130.5 oz-in (9.4 kg/cm)
  • Motor Type: Coreless Motor
  • Bearing Type: Dual Ball Bearings
  • Gear Type: Chrome-Titanium Alloy Gears
  • Connector Wire Length: 29.5 cm (11.62 in)
  • Dimensions: 35.5x15x28.5mm
  • Weight: 38.55g (1.36oz)
  • Electric Current Draw: 2.6A max.(8.2V) │ 2.4A max.(7.4V) │ 2.0A max (6.0V)

Write a review

Please login or register to review

HV9767 MKS Titanium Gear Digital Cyclic Servo (High Voltage) MKS-HV9767

  • Brand MKS
  • Product Code: 52-MKS-HV9767
  • Availability: In Stock
  • $92.99
