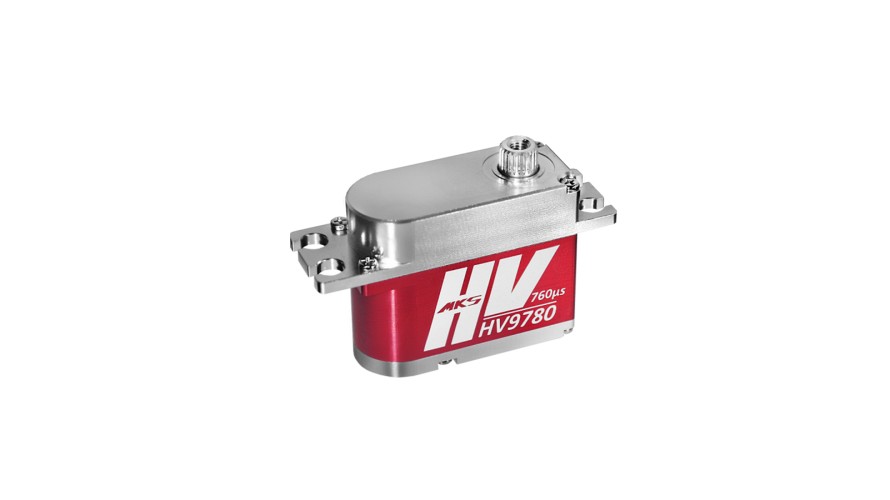

HV9780 MKS Titanium Gear Mini Tail Servo.

Product Information

For 500, 550 Class RC Helicopters

Recommended Use: RC Helicopter - Tail

High Speed Response

Band: Narrow

Case: All Aluminum

Gears: Titanium

Motor: Coreless

Specifications

  • Dead Band: 0.0005ms (Default)
  • Control System: +Pulse Width Control
  • Working Frequency: 760μs / 560hz
  • Operating Voltage: 6.0 ~ 8.4 Volts
  • Operating Temperature Range: -10 to + 60 Degree C
  • Operating Speed:
    • @6V: 0.055 sec/60° degrees at no load
    • @7.4V: 0.045 sec/60° degrees at no load
    • @8.4V: 0.040 sec/60° degrees at no load
  • Stall Torque:
    • @6V: 45.8 oz-in (3.3 kg/cm)
    • @7.4V: 55.5 oz-in (4.0 kg/cm)
    • @8.4V: 62.5 oz-in (4.5 kg/cm)
  • Motor Type: Coreless Motor
  • Bearing Type: Dual Ball Bearings
  • Gear Type: Chrome-Titanium Alloy Gears
  • Connector Wire Length: 29.5 cm (11.62 in)
  • Dimensions: 35.5x15x28.5mm
  • Weight: 38.01g (1.34oz)

Write a review

Please login or register to review

HV9780 MKS Titanium Gear Mini Tail Servo (High Voltage) MKS-HV9780

  • Brand: MKS
  • Product Code: 52-MKS-HV9780
  • Availability: In Stock
  • SKU: MKS-HV9780
  • $95.99
