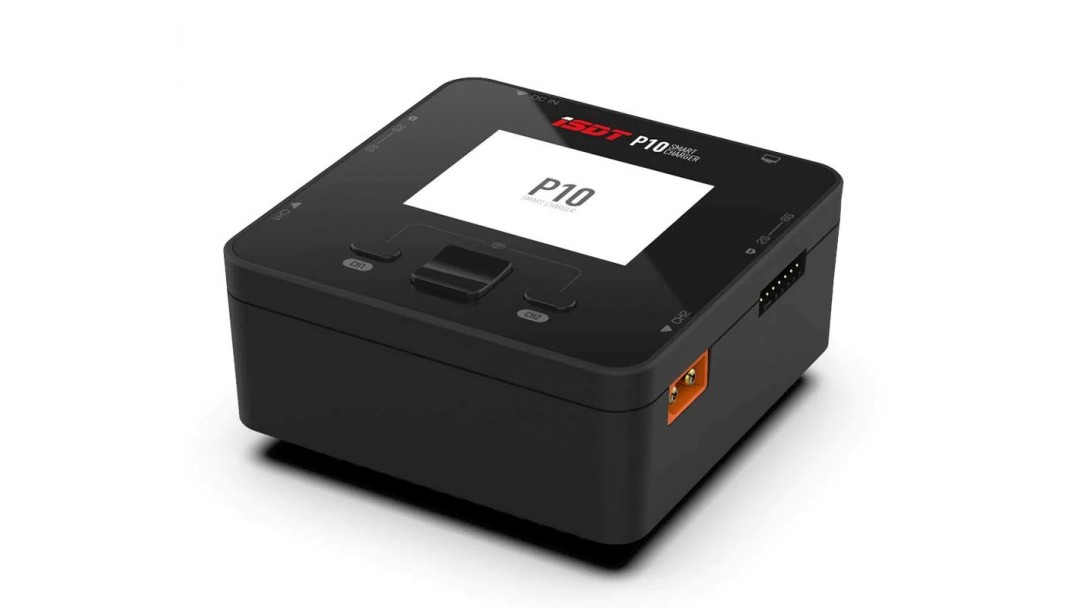

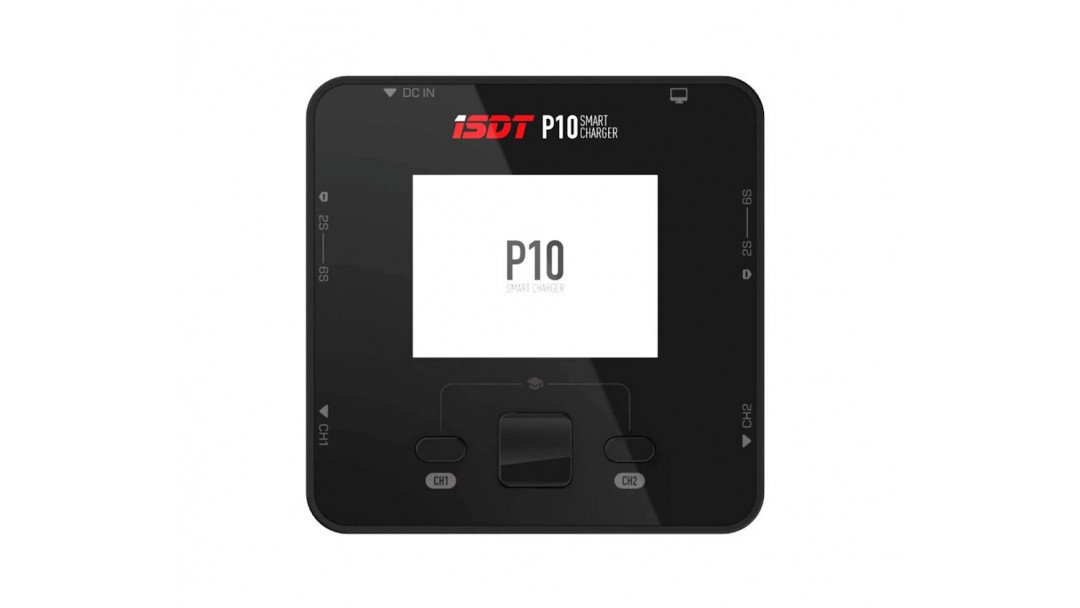

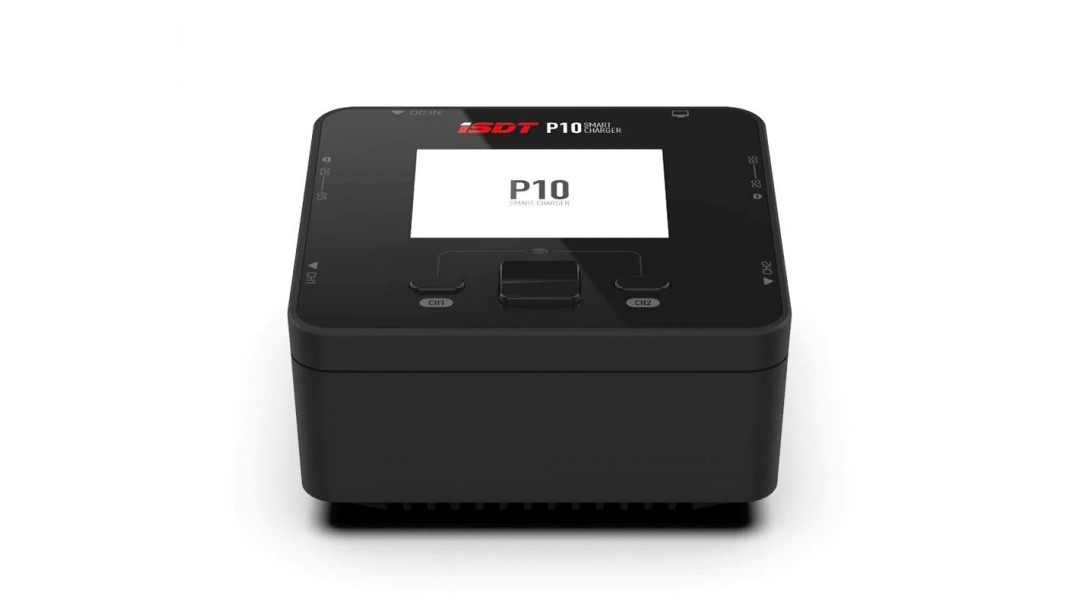

Introducing the ISDT P10, powered by innovation, and packed with features to make your charging experience hassle-free.
Smart Dual Channel Charging: With a high-speed processor delivering parameters to each port, you can expect synchronous and efficient charging. Maximum charging power for a single port can reach up to 250W.
Synchronous Parallel Charging: The built-in high-speed processor allows for synchronous balance charging across two channels. Parallel charging power can reach up to 400W, while P10 delivers a charging current range of 10A to 16A.
USB Firmware Upgrade: Always maintain advanced performance and features with the ISDT P10. Connect to a computer through the USB-C interface to upgrade to the latest firmware.
Adjustable Digital Power Supply: With adjustable digital power supply mode, CH1 of the charger can become a DC power supply with a maximum power output of 120W. CC ranges from 0.2A to 5A, and CV ranges from 5V to 24V.

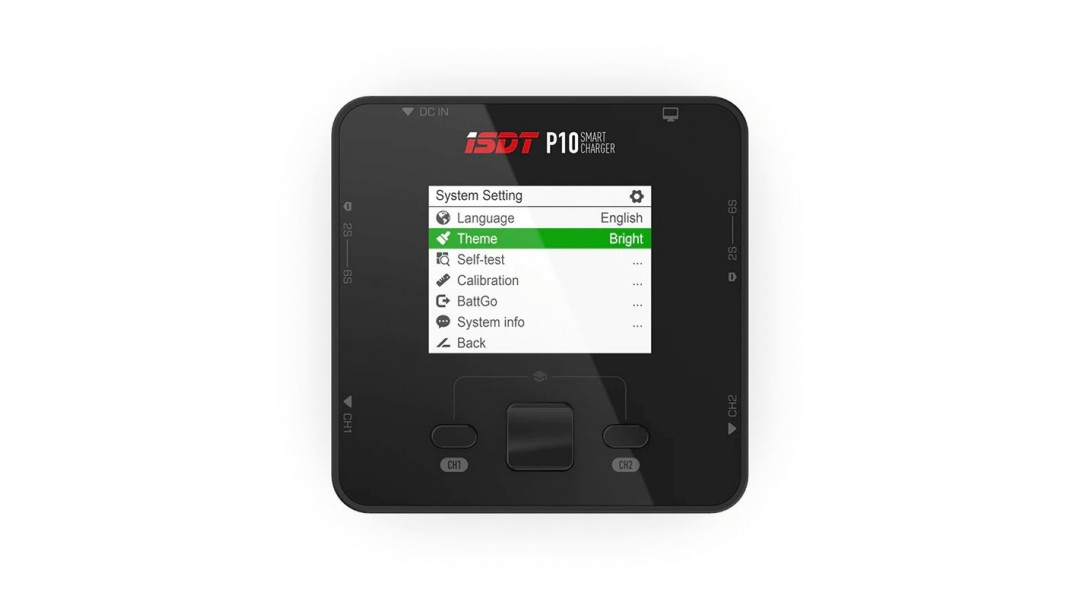

Dark Mode: Introducing the new dark mode feature with scOS 2.0. Suitable for low-light scenarios, the system adjusts the interface to a dark tone, reducing light damage to the user's eyes while maintaining the iconic and comfortable charging display style.
|
Specifications Input Voltage DC 10~30V Output Voltage DC 1~26.4V Max. Input Current: 20A35A Charging Current: 0.2~10.0A x 2 Max. Charging Power 250W x 2 Balance Current: 0.5 A/Cell Max Abnormal Voltage Alarm Support Incorrect Cell Count Setting Alarm Support Supported Battery Types and Cell Count LiFe, LiIon, LiPo, LiHv 1-6S ; Pb 1-10S ; NiMH/Cd 1-16S Parallel Charging Power and Current 400W/16A Working Temperature: 0 ~ 40 °C Storage Temperature: -20°C ~ 60°C Dimensions: 90.5x90.5x47mm Weight: 250g |
Package Includes iSDT P10 500W 16A 6S Dual Port Smart Charger x 1 |
| Charger Specifications | |
| Power Type Input | DC Mode |
| DC Input Voltage | 10~30V |
| Charge Power | DC 1~26.4V |
| Charge Current | 0.2-10A x 2 |
| Supported Battery Types | LiFe, Lilon, LiPo, LiHv, Pb, NiMH, Cd |
| Discharge Current | 0.1-10A |
| LiPo/LiIon/Life Cell Count | 1-6S |
| NiMH/NiCd Cell Count | 1-16S |
| Pb Battery Voltage | 1-10S |
| Firmware Update | USB-C Interface |
| Dimension | 90.5x90.5x47mm - 3.56x3.56x1.85in |
| Weight | 250g - 8.82oz |
iSDT P10 500W 16A 6S Dual Port Smart Charger ISD-P10
- Brand iSDT
- Product Code: 71-ISD-P10
- Availability: In Stock
-
$69.99
