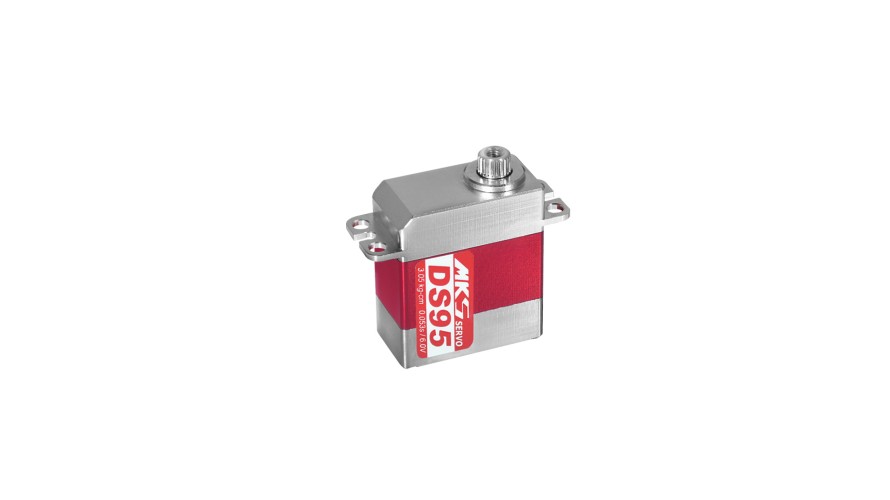

This is the MKS DS95 Titanium Gear High Torque Micro Digital Helicopter Cyclic Servo. With features that include a chrome/titanium alloy gear train, an aluminum center case, as well as an aluminum upper and lower case, this servo is practically bomb proof. Plus with .05 transit speed and 42 oz/in of torque @ 6 volts, the DS95 provides impressive speed and torque that makes it an excellent cyclic servo.

Product Information

For 300, 450, 470 Class RC Helicopters

Recommended Use: RC Helicopter - Cyclic

High Speed Response

Case: All Aluminum

Gears: Meta Alloy

Motor: Japanese Coreless

Specifications

  • Dead Band: 0.001ms (Default)
  • Control System: +Pulse Width Control
  • Working Frequency: 1520μs / 333hz
  • Operating Voltage: 4.8 ~ 7.0 Volts
  • Operating Temperature Range: -10 to + 60 Degree C
  • Operating Speed:
    • @4.8V: 0.066 sec/60° degrees at no load
    • @6.0V: 0.053 sec/60° degrees at no load
  • Stall Torque:
    • @4.8V: 33.9 oz-in (2.44 kg/cm)
    • @6.0V: 42.4 oz-in (3.05 kg/cm)
  • 360° Modifiable: NO
  • Motor Type: Coreless Motor
  • Potentiometer Drive: Indirect Drive
  • Bearing Type: Dual Ball Bearings
  • Gear Type: Metal Gears
  • Dimensions: 23x12x27.25mm
  • Weight: 21.21g (0.75oz)
