Product Information

For M4 Max Radio Control RC Helicopter Electric Series or Similar Size RC Helicopter

Telemetry Support: Current, Voltage, Temperature, RPM, Throttle and ESC Status Code.

Telemetry protocol: Real-Time Data (default) MSH Brain, RotorFlight,  Vbar Control, and Futaba SBUS-2

Supports RPM Signal Over Wire. (External RPM Sensor Not Required)

High Performance: 32-bit Microprocessor Running at 170MHz

New Generation MOSFET: Low Heat Generation, Large Burst Current Withstanding Capability and High Reliability.

Self-Check Function: After ESC Powers On, Automatic Short Circuit Check, Motor Lose Phase, Non-Zero Throttle, Battery Voltage.

The specially designed ESC case greatly enhances the ESC’s heat dissipation performance.

Governor Modes: Helicopter Internal Governor Store (default) and External Governor.

Protection Features: Abnormal Power-on Voltage Protection, Start-Up Protection, Temperature Protection, Throttle Signal Loss Protection, Over Load Protection, Low Voltage Protection, Over Current Protection.

Programming

LCD Programming Box / Card (Not Included) - OSHM4117

Bluetooth Module (Not Included) - OSHM4118

Max 85A ESC (SBEC) Manual Download

Connectors

Battery: XT60

Motor: MR60 (3 Bullets)

Plug Pins: S (Throttle Signal), + (BEC output), - (Ground)

RPM Signal Plug: 1 Pin

5-pin Programming Header: TX (Transmit), RX (Receive), + (BEC output), - (Ground)

Specifications

Max Continuous Current: 85A

Max Peak Current: 130A

Input voltage: 3-6S LiPo

BEC Voltage: 6V - 7.4V - 8.4V

BEC Current: 10A

Size: 71x36x33mm

Weight: 90g

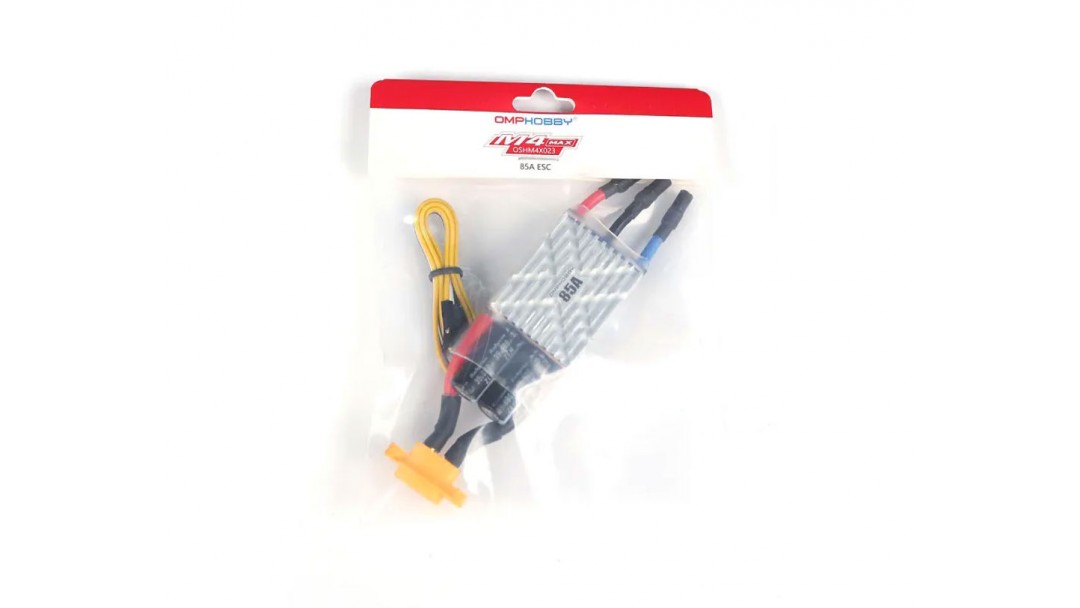

Package Includes

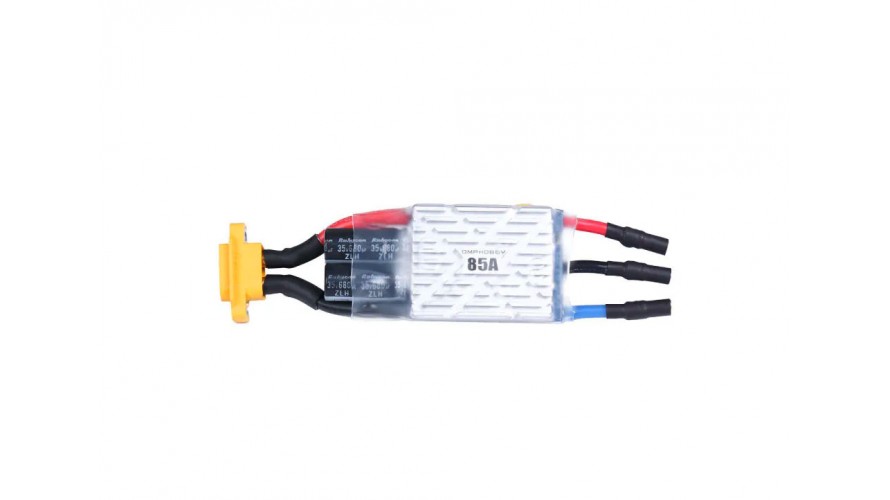

85A ESC x 1
