ALIGN T-REX DS450M Digital Cyclic HV Servo

Suitable for T-REX 250, 300X, 450, 450PRO, 450L TB40, 470L, 470LT RC Helicopter Electric Series or Similar Size RC Helicopter

Faster Speed with High Torque Performance

Precision Control

High Rigidity, Shock Resistant

Aluminum Alloy Case for Instantaneous Heat Dissipation to Maintain High Efficiency

Supports Digital & Analog Control Signal

Powerful and Precise Servo Suitable for 250 - 470 Class Size CCPM Cyclic Use

Gear Replacement

DS450 Servo Gear Set - HSP45002

Arm Replacement

D4BF Servo Horn - HSP41003

Servo Composite Material Case Replacement

DS450-455 Upper Lower Cover - HSP45004

Specifications

Case: All Metal

Gears: Metal

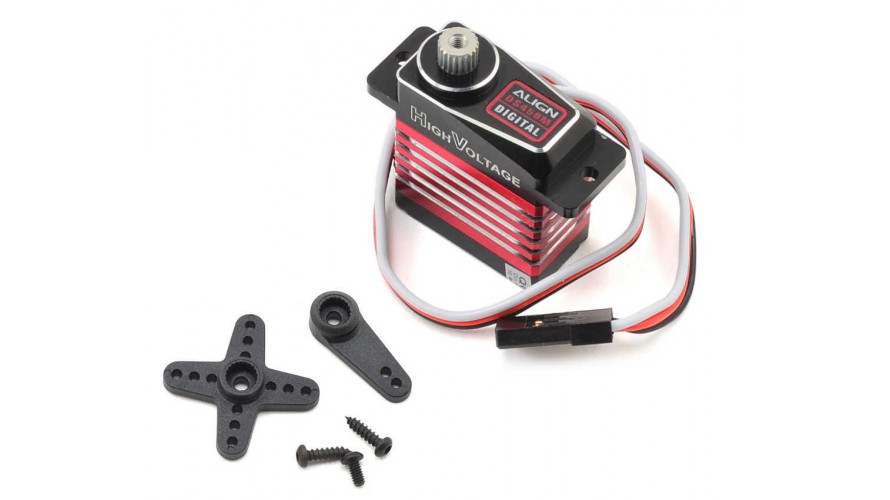

Package Includes

DS450 Digital Servo x 1

Socket Button Head Self Tapping Screw x 2

Socket Screw x 1

Servo Arm x 2

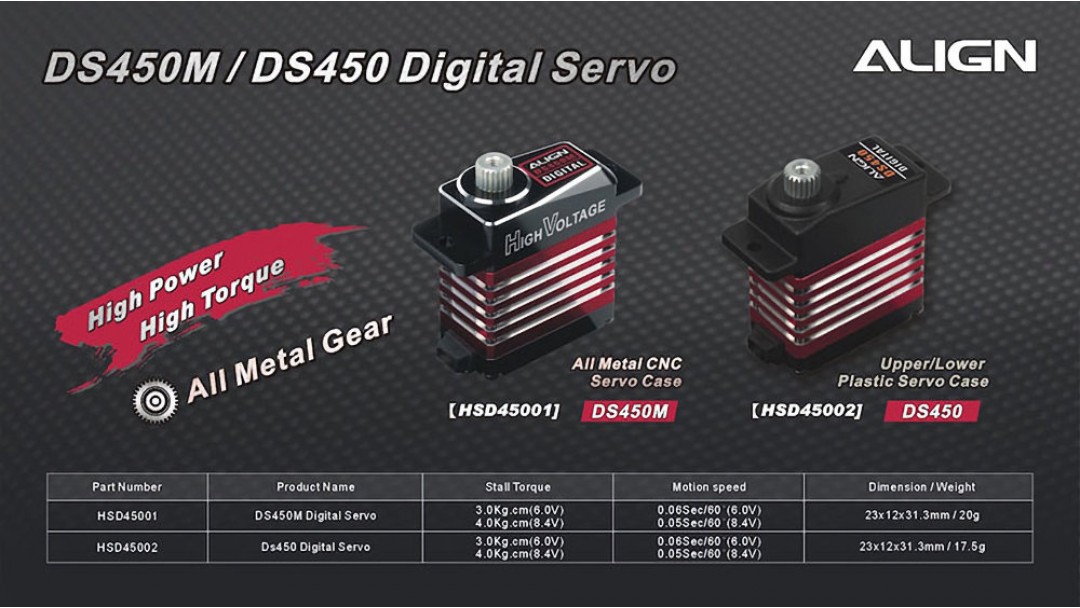

	T-REX DS450M Digital Cyclic HV Servo (All Metal Case)	ALIGN DS450 Digital Cyclic HV Servo Plastic / Metal Case
Price	$43.99	$33.99
Rating
General
Product Name	DS450M Digital Cyclic HV Servo	DS450 Digital Cyclic HV Servo
SKU	HSD45001	HSD45002
Specification
Cyclic Servo
Tail Servo
RC Use
Case	All Metal	Metal and Composite Material
Gear Set	Metal	Metal
Voltage Range	6.0-8.4V DC	6.0-8.4V DC
Stall Torque	3.0kg.cm (6.0V) - 4.0kg.cm (8.4V)	3.0kg.cm (6.0V) - 4.0kg.cm (8.4V)
Motion Speed	0.06sec/60° (6.0V) - 0.05sec/60° (8.4V)	0.06sec/60° (6.0V) - 0.05sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C	-20°C ~ +60°C
Swashplate Frequency	200Hz	200Hz
Rudder Frequency	333Hz	333Hz
Pulse Length	1520µs	1520µs
Dimension	23 x 12 x 31.3mm	23 x 12 x 31.3mm
Weight	20g	17.5g
