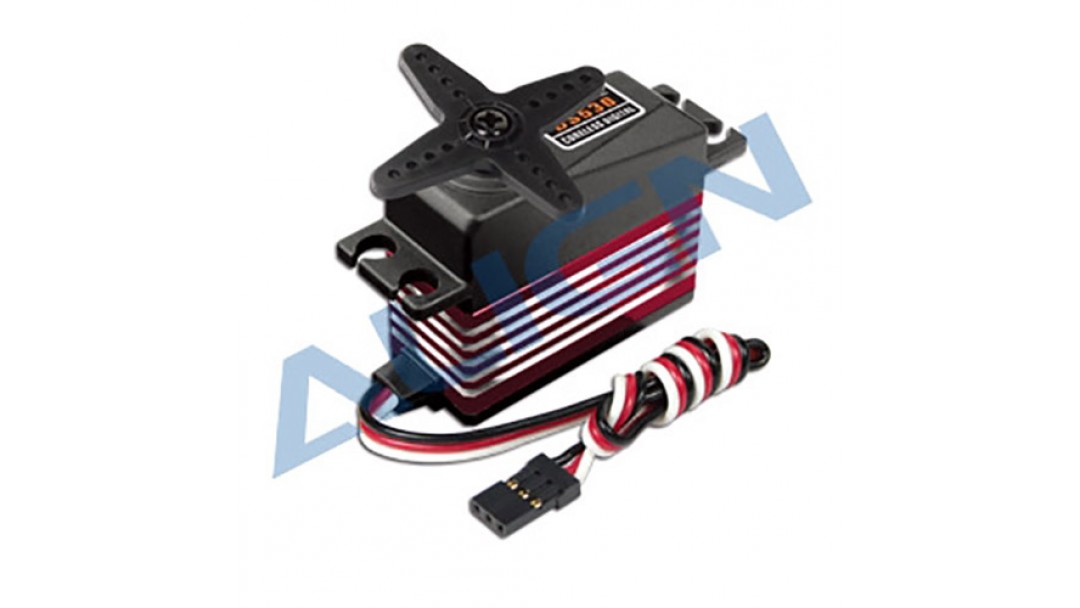

ALIGN DS530 Digital Cyclic HV Servo.

Great Servo for RC Helicopters, Planes, and Cars

Stable for T-REX 500, 500XT, 550L, 600XN*, 700XN* Series or 500 Class Size RC Helciopters

Product Information

Designed Specifically for RC Helicopters

Utilizes Brushless Motor for Fast Speed, High Torque, Super Efficient Reaction

CNC Aluminum Case

Plastic Upper Cap and Lower Bottom Plate

Ultra High Signal Resolution

Hardened High Strength Super Alloy Gears

Suitable for Cyclic or Rudder Use

*600XN and 700XN Throttle Servo Only

Gear Replacement

DS535 Servo Gear Set - HSP53502

Servo Case Replacement

DS530-535 Upper Lower Cover - HSP53004

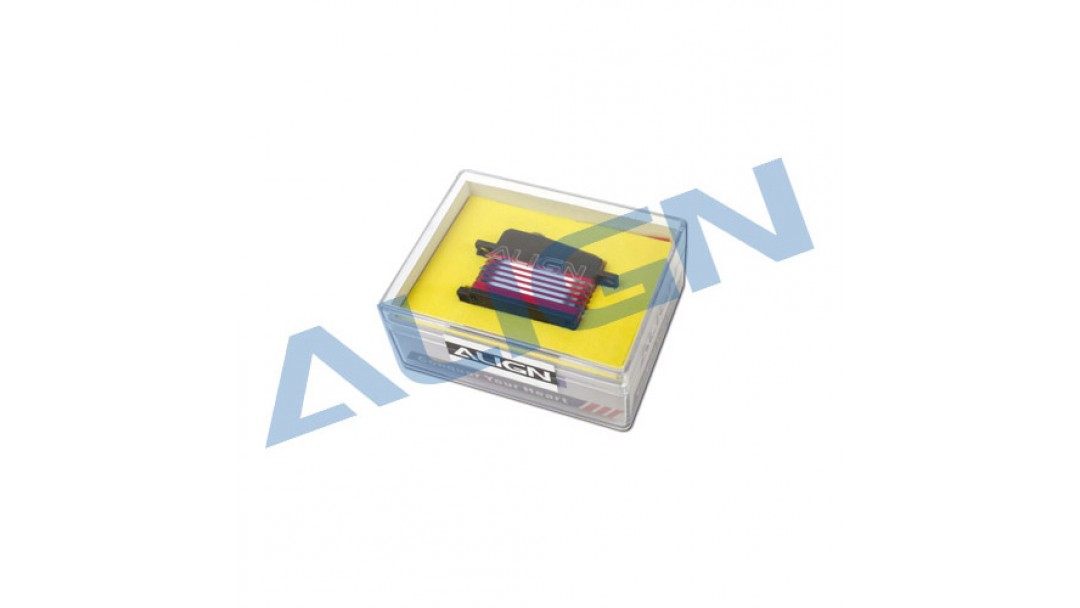

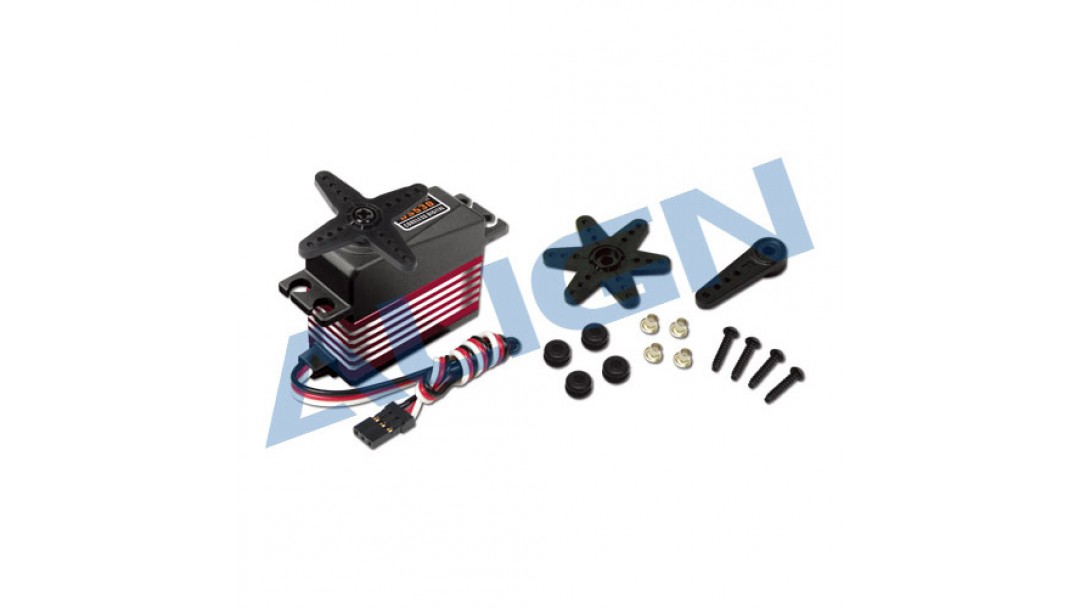

Package Includes

DS530 Digital Servo x 1

Servo Arm x 1

DS515/525 Servo Arm Set x 1

Socket Button Head Self Tapping Screw x 4 (T2.6x12mm)

Servo Specs
Cyclic Servo	YES
Tail Servo	YES
RC Use	YES
Case	Plastic and Composite Material
Gear Set	Metal
Voltage Range	6.0-8.4V DC
Stall Torque	6.5kg.cm (6.0V) - 9.0kg.cm (8.4V)
Motion Speed	0.085sec/60° (6.0V) - 0.065sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C
Swashplate Frequency	200Hz
Rudder Frequency	333Hz
Pulse Length	1520µs
Dimension	35.1 x 15.1 x 29mm
Weight	29g

	ALIGN DS530 Digital Cyclic HV Servo Plastic / Metal Case	T-REX DS530M Digital Cyclic HV Servo All Metal Case
Price	$53.99	$80.99
Rating
General
Product Name	DS530 Digital Cyclic HV Servo	DS530M Digital Cyclic HV Servo
SKU	HSD53002	HSD53001
Specification
Cyclic Servo
Tail Servo
RC Use
Case	Plastic and Composite Material	All Metal
Gear Set	Metal	Metal
Voltage Range	6.0-8.4V DC	6.0-8.4V DC
Stall Torque	6.5kg.cm (6.0V) - 9.0kg.cm (8.4V)	6.5kg.cm (6.0V) - 9.0kg.cm (8.4V)
Motion Speed	0.085sec/60° (6.0V) - 0.065sec/60° (8.4V)	0.085sec/60° (6.0V) - 0.065sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C	-20°C ~ +60°C
Swashplate Frequency	200Hz	200Hz
Rudder Frequency	333Hz	333Hz
Pulse Length	1520µs	1520µs
Dimension	35.1 x 15.1 x 29mm	35.1 x 15.1 x 29mm
Weight	29g	36g
