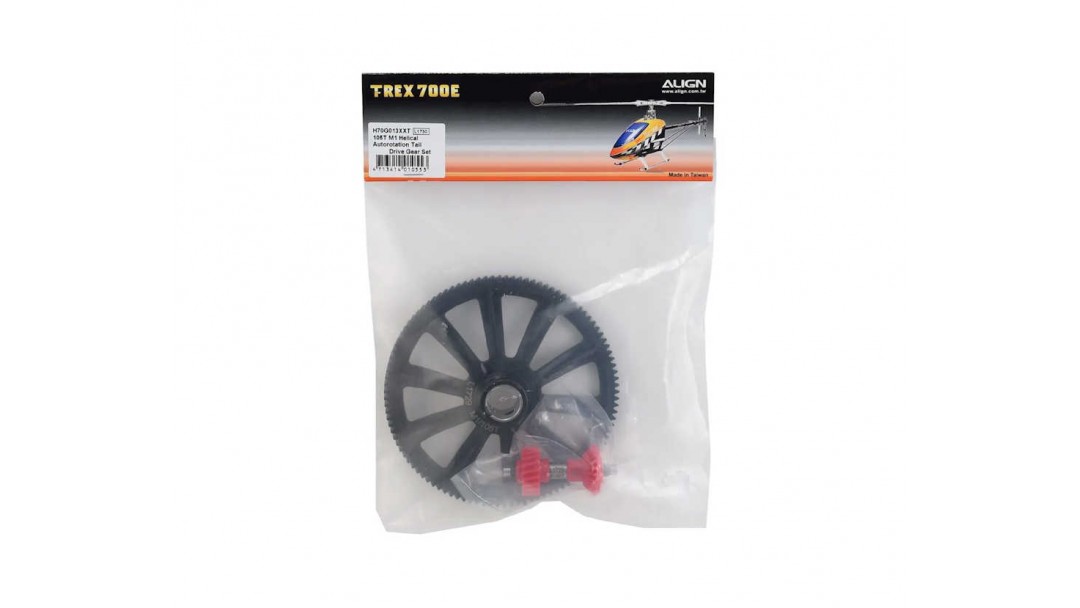

T-REX 700 Helical Autorotation M1-105T Torque Tube Gear 20T Set by Align.

Product Information

For T-REX 700, 700E, 700L, 700X, 760X, 800 Series

New High Drive Gear Ratio

Designed Especially for F3C & Slow 3D Flight

Superior Tail Lock

Precise Flight Performance.

Suitable for Head Speed at 1900 RPM

Gear Ratio 1:5.25

Replacement Bearing

700 Short Umbrella Front Gear - (695ZZ) 5x13x4mm - HN7068

Must Use

Torque Tube Front Gear 20T

Specifications

Autorotation Tail Drive Gear M1 105T x 1

Front Torque Tube Drive Gear Assembly M1 20T x 1

T-REX 700 Tail Drive Gear Ration with Main Rotor Head Speed Table

Main Blades	Tail Blade	RPM approx.	Tail Drive Gear	Front Drive Gear	Drive Gear Ratio
700	106	2150 ~ 2200 RPM	102T	H70G001NX 23T M1 Red HE1G005XX 19T M1.25 Blue	8.46/1/4.43
700	106	2000 ~ 2150 RPM	104T	H70G001BX 22T Red	8.46/1/4.73
700	106	< 2000 RPM	105T	H70G013XX 20T Red	8.46/1/5.25
For your safety, DO NOT exceed 2200 RPM or increase RPM beyond charts recommendations for Tail Gearing as this may result in damage to the helicopter, or the property of others.

T-REX 700 Helical Autorotation M1-105T Torque Tube Gear 20T Set H70G013XX by Align
