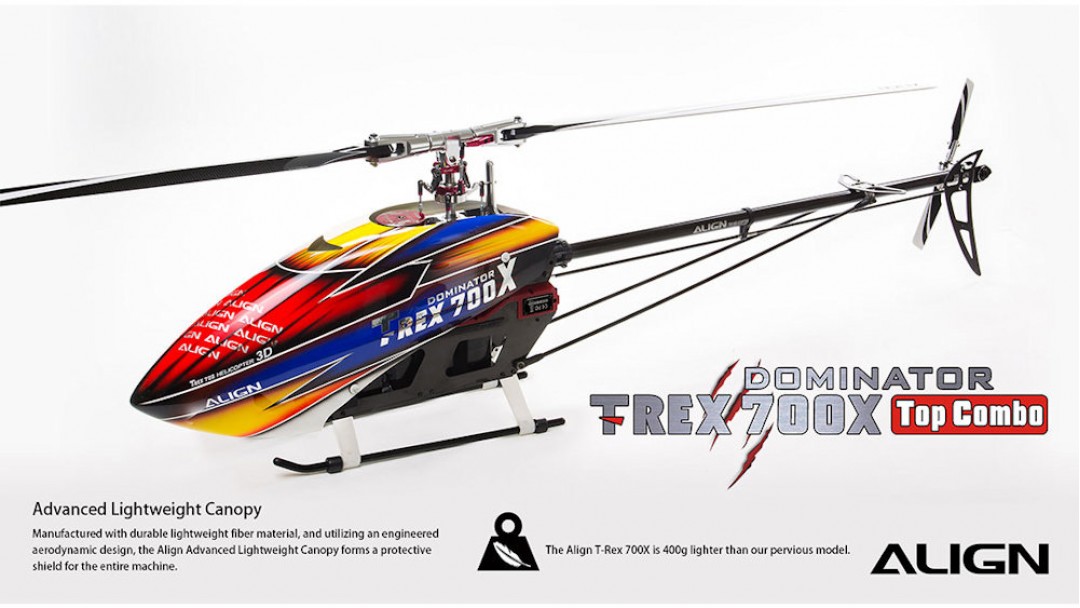

Manufactured with durable lightweight fiber material, and utilizing an engineered aerodynamic design, the Align Advanced Lightweight Canopy forms a protective shield for the entire machine.

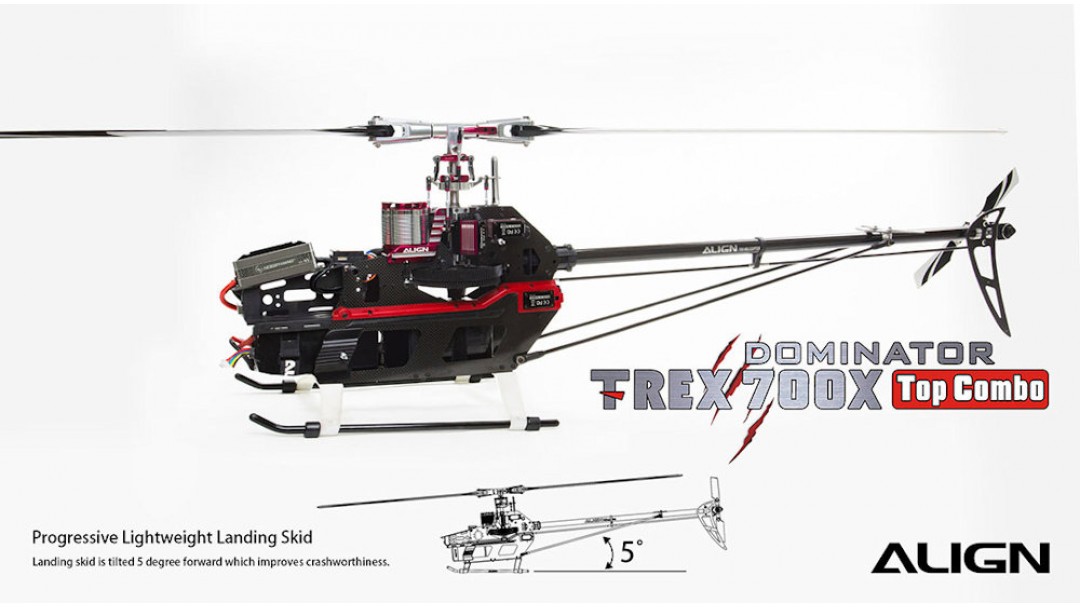

Landing skid is tilted 5 degree forward which improves crashworthiness.

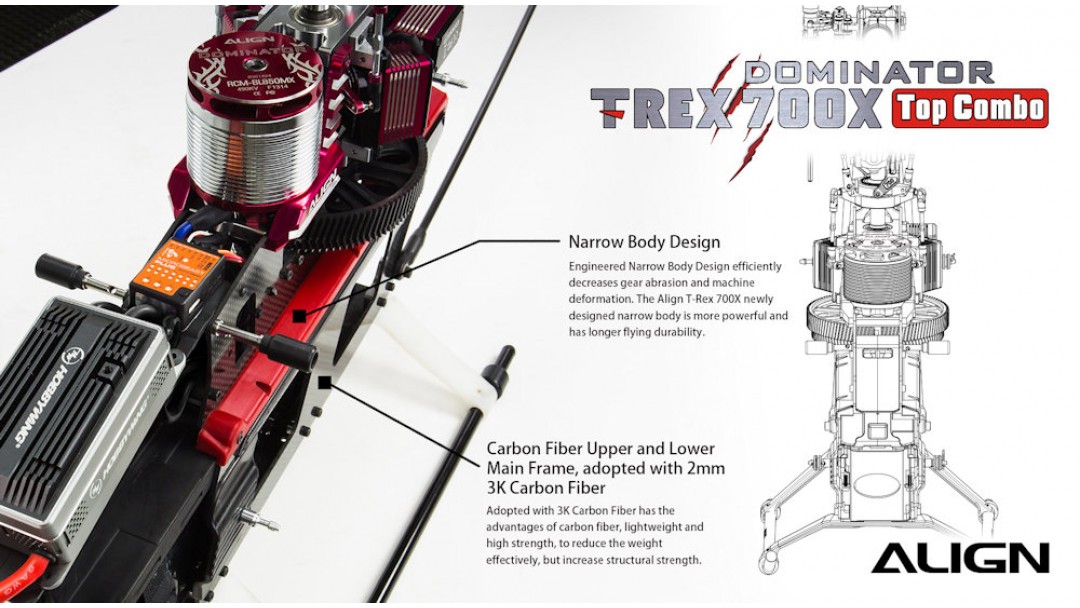

Engineered Narrow Body Design efficiently decreases gear abrasion and machine deformation. The Align T-Rex 700X newly designed narrow body is more powerful and has longer flying durability.

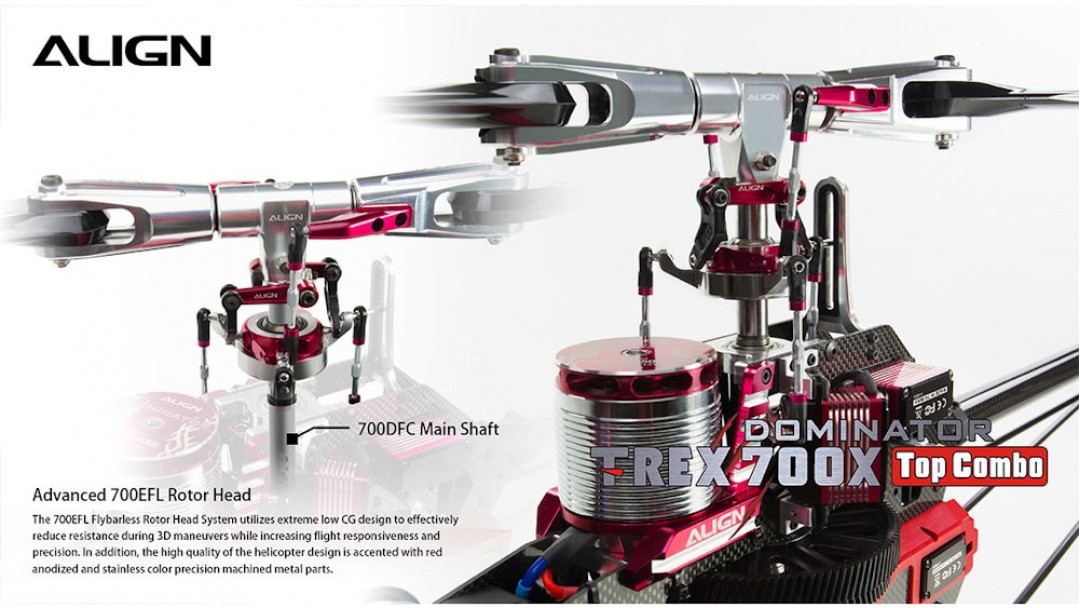

The 700EFL Flybarless Rotor Head System utilizes extreme low CG design to effectively reduce resistance during 3D maneuvers while increasing flight responsiveness and precision. In addition, the high quality of the helicopter design is accented with red anodized and stainless color precision machined metal parts.

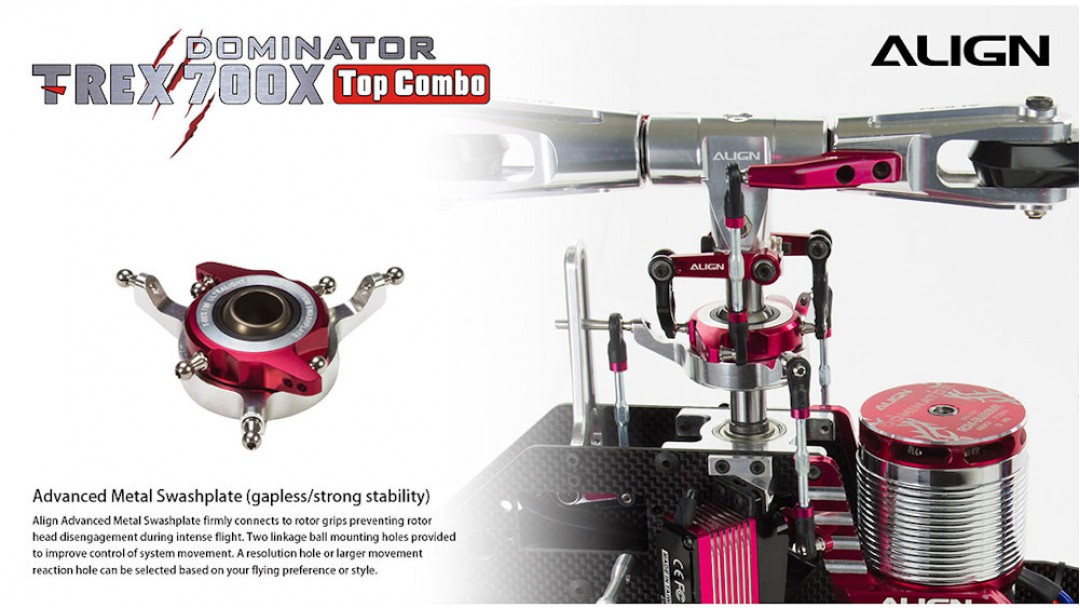

Align Advanced Metal Swashplate firmly connects to rotor grips preventing rotor head disengagement during intense flight. Two linkage ball mounting holes provided to improve control of system movement. A resolution hole or larger movement reaction hole can be selected based on your flying preference or style.

The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.

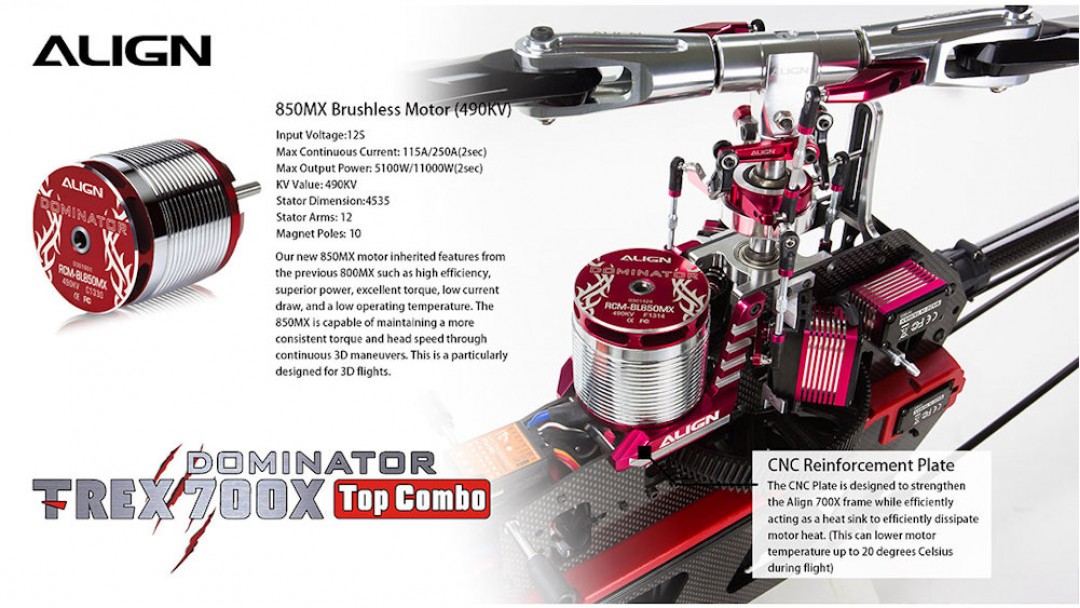

Our new 850MX motor inherited features from the previous 800MX such as high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. The 850MX is capable of maintaining a more consistent torque and head speed through continuous 3D maneuvers. This is a particularly designed for 3D flights.

The CNC Plate is designed to strengthen the Align 700X frame while efficiently acting as a heat sink to efficiently dissipate motor heat. (This can lower motor temperature up to 20 degrees Celsius during flight)

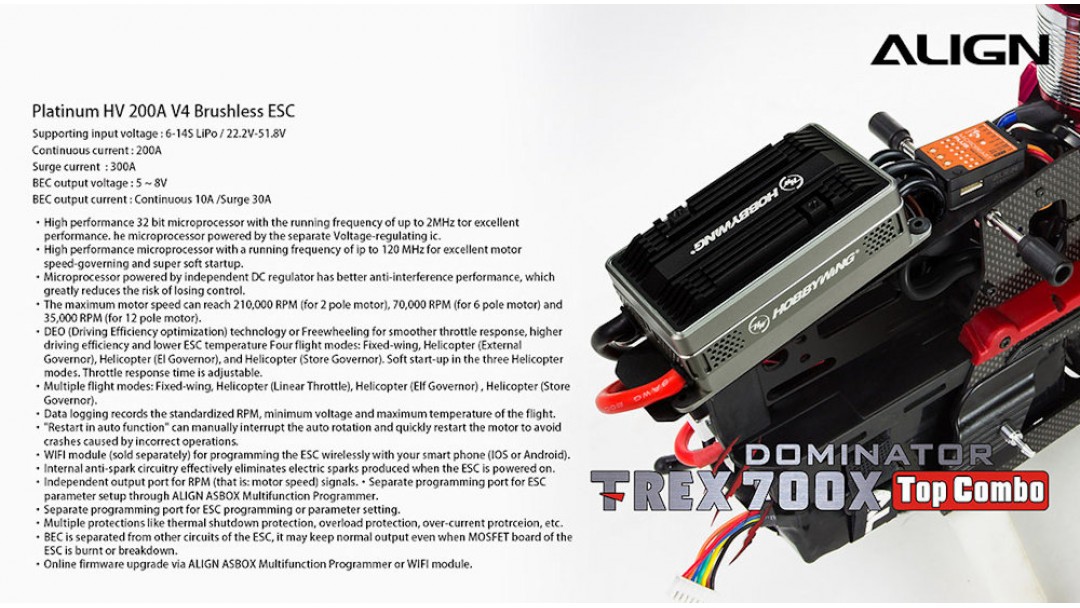

HOBBYWING Platinum HV V4 ESC: Fast throttle feedback, stable and agile performance, Fast processor, Cool ESC temperature keep performance more reliable, Support ASBOX Multifunction Programmer set up, and Firmware Update.

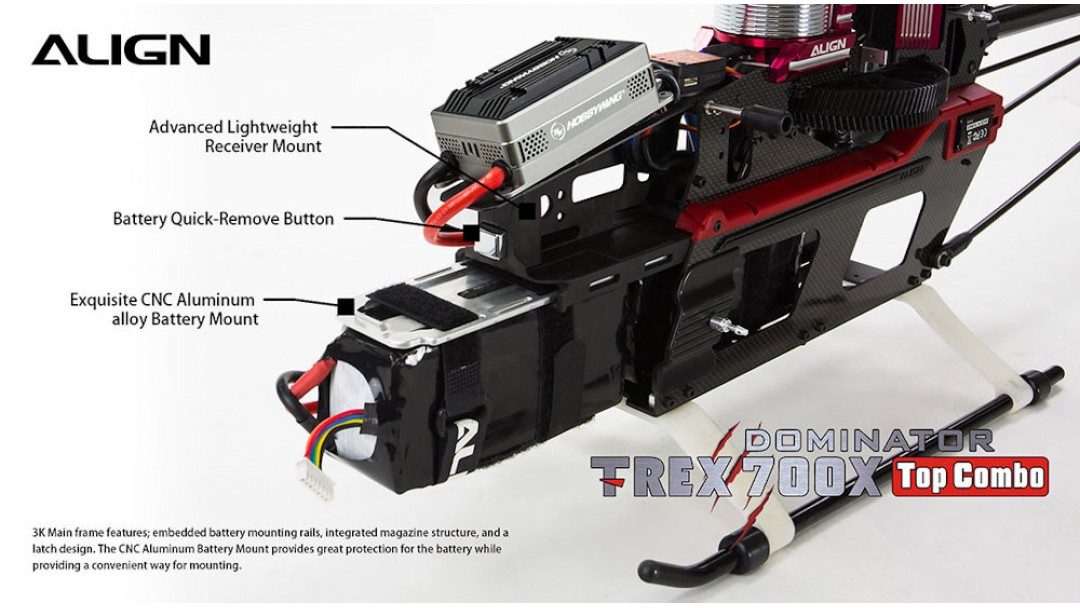

3K Main frame features; embedded battery mounting rails, integrated magazine structure, and a latch design. The CNC Aluminum Battery Mount provides great protection for the battery while providing a convenient way for mounting.

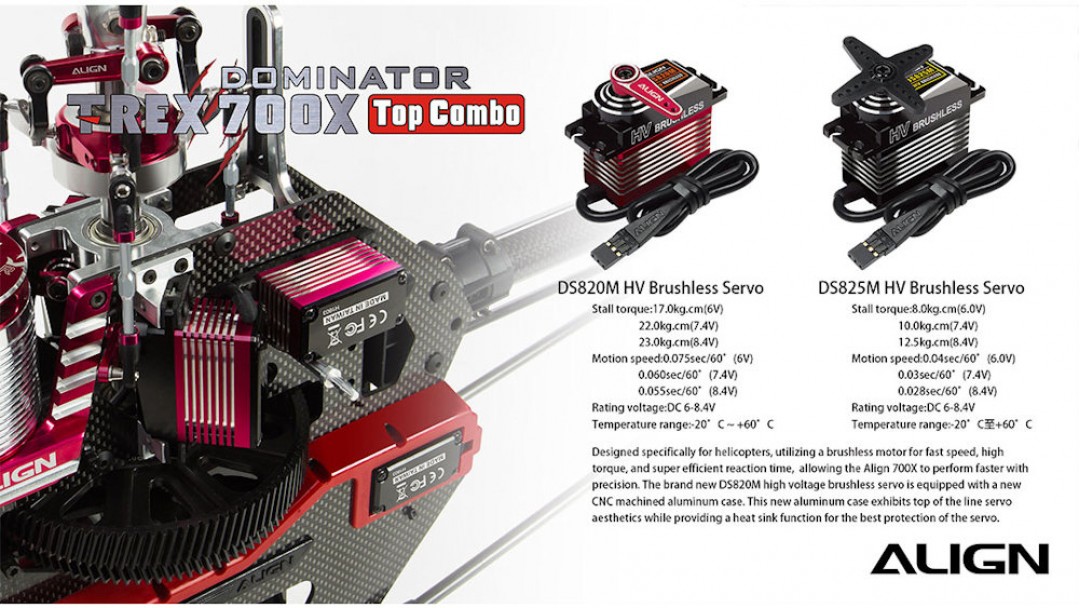

DS820M Digital Servo: Designed specifically for helicopters, utilizing a brushless motor for speed, high torque, and efficient reaction time, allowing the Align 700X to perform fast with precision. The DS820M high voltage brushless servo is equipped with a new CNC machined aluminum case. This case exhibits top of the line servo aesthetics while providing a heat sink function for the best protection of the servo.

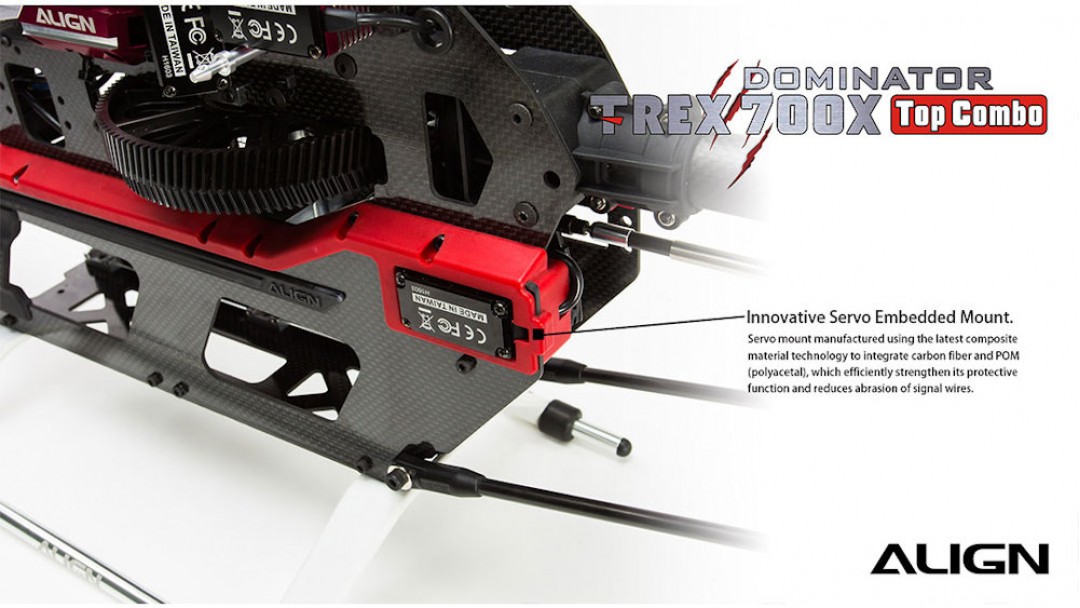

Innovative Servo Embedded Mount. Servo mount manufactured using the latest composite material technology to integrate carbon fiber and POM (polyacetal), which efficiently strengthen its protective function and reduces abrasion of signal wires.

Integration of CNC Aluminum alloy and POM Polyacetal which can lower friction between the linkage ball and the Metal Anti Rotation Bracket. In addition, this new design increases the efficiencies and accuracy of the servos.

Composite material side plates engineered by exclusive embedding technology, which strengthens the entire structure and eases serviceability.

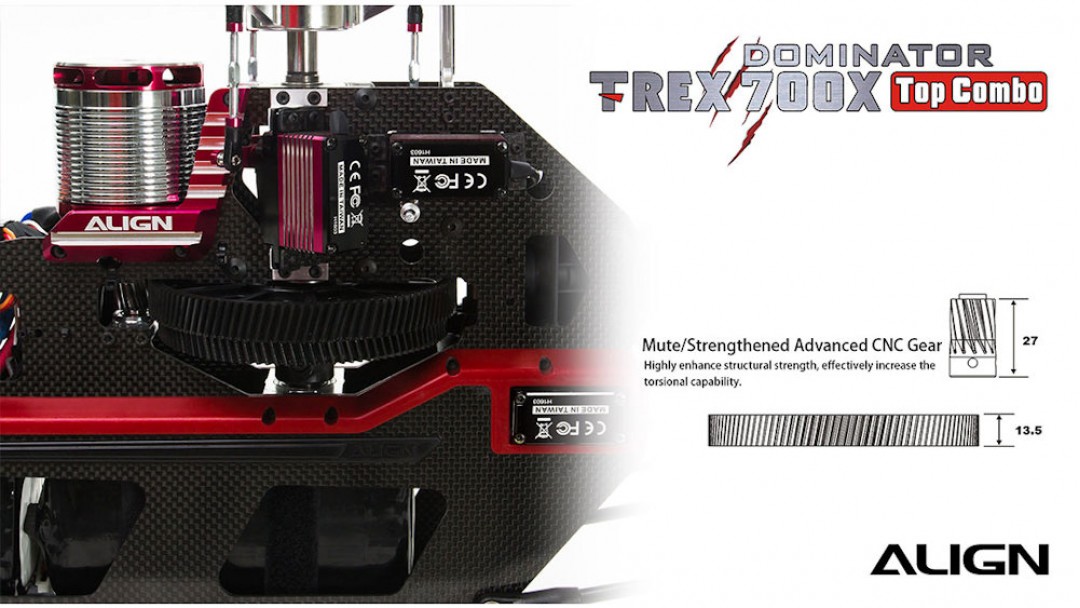

Highly enhance structural strength, effectively increase the torsional capability.

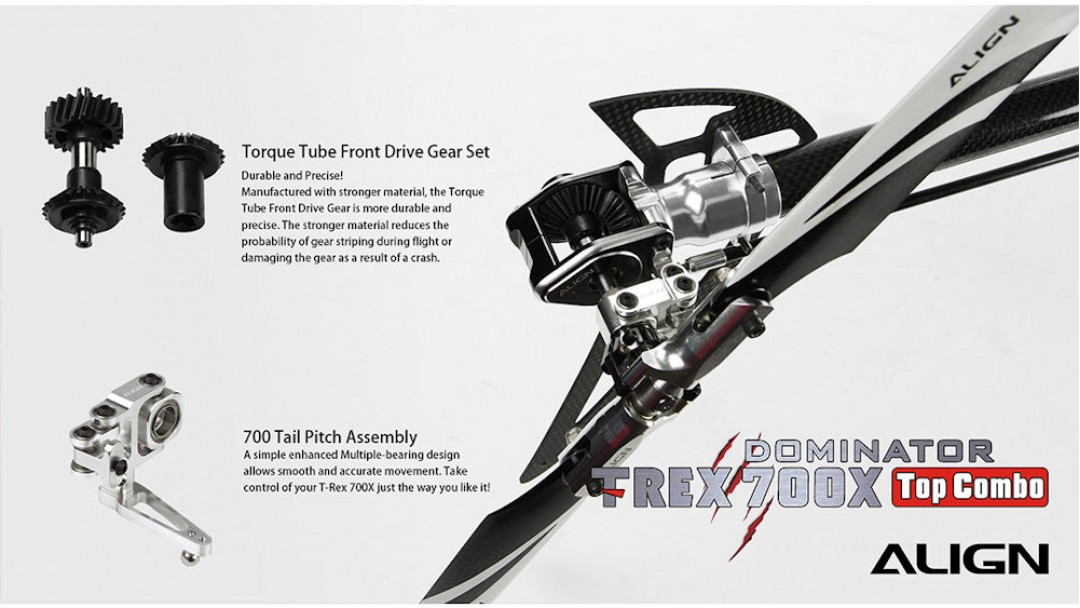

A simple enhanced Multiple-bearing design allows smooth and accurate movement. Take control of your T-Rex 700X just the way you like it!

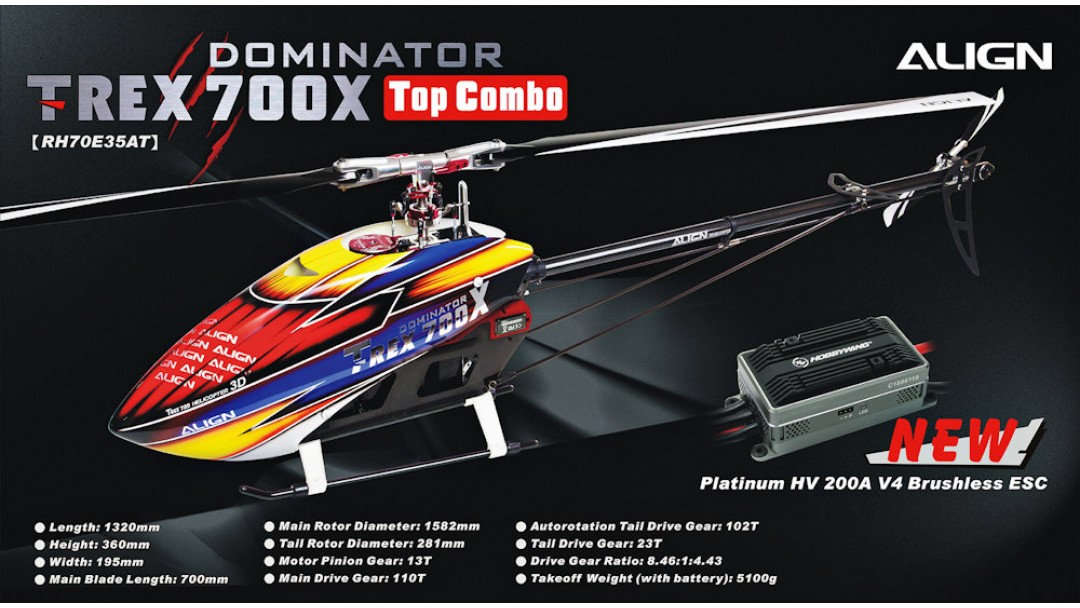

Electronics: Hobbywing Platinum HV 200A V4 ESC, 850MX Brushless Motor (490KV/4535), DS820M HV Digital Servo, DS825M HV Digital Servo, Microbeast Plus Flybarless System
