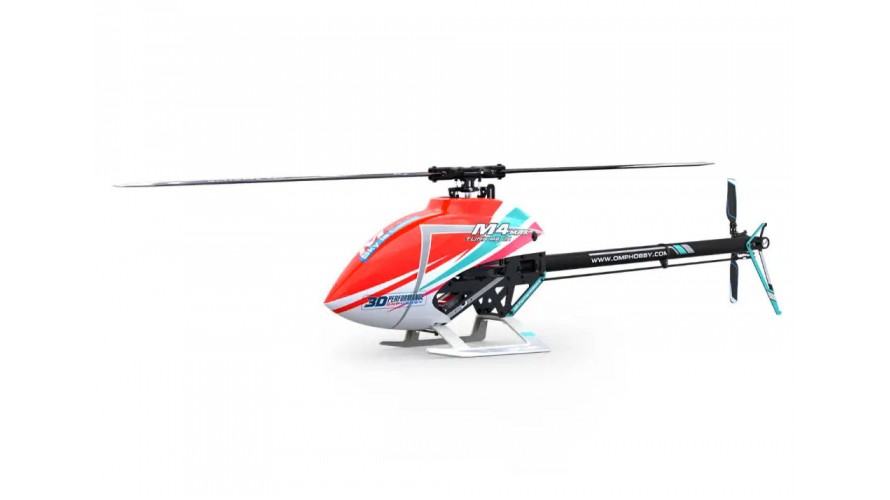

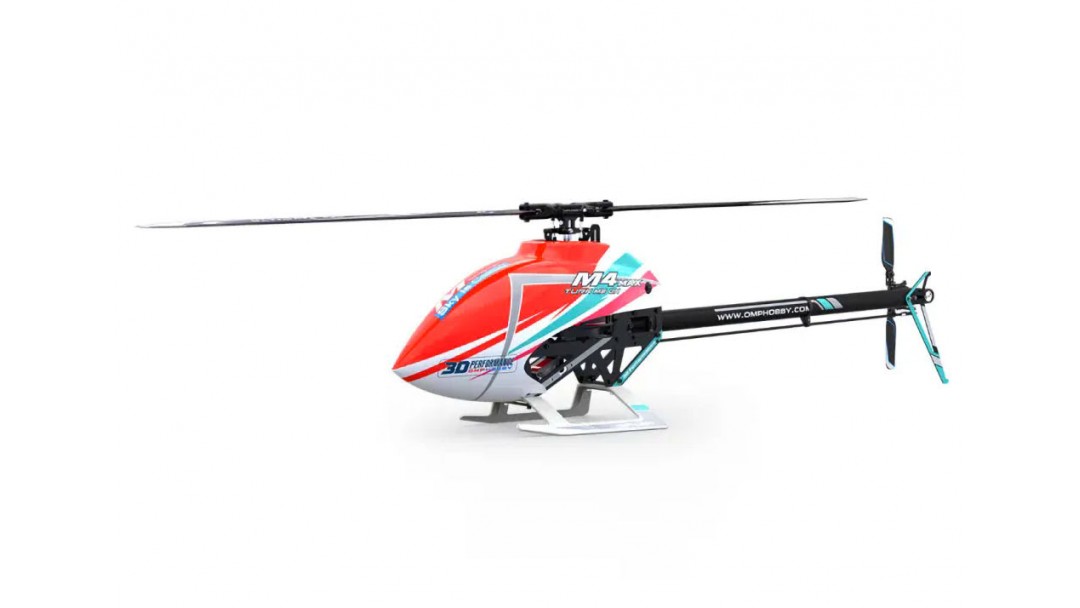

OMP Hobby M4 Max RC Helicopter Electric Series
OMP Hobby M4 Max is based on the proven M4 air-frame with all its beloved features. Swinging 420mm blades, the MAX brings much lower disc loading, enabling smoother and more dynamic flying styles with a much floatier feeling.
|
Product Information OMP Hobby M4 Max Combo (Includes Motor, ESC, and Servos) Optional Colors: Green, Pink Equipment Required for Assembly Transmitter (6-channel or more, helicopter system) Flybarless Gryo (Recommend Beastx) Receiver S.bus, DMSX/DMS2, 6-Channel Receiver 6S1P 22.2V 70C 2000mAh OMP Battery - OSHM4049 6S1p 22.2V 45C 2600mAh Gen ace Battery - GEA26006S45X6 ALIGN AP800 Digital Pitch Gauge - HET80001 LiPo Battery Charger Misc. RC Helicopter Building Equipment and Supplies Soldering Tool / Supplies Threadlocker Blue and Red (Recommend Loctite Brand) Silicone Grease
|
Specifications Assembly Required: Yes Color: Magic Orange ESC Connector: XT60 Connector Installed *Package Includes OMP Hobby M4 Max Kit - Orange x 1 420 Main Blade Set x 1 71mm Tail Blade Set x 1 Cyclic Metal Gear Servo x 3 Tail Metal Gear Servo x 1 OMP 85A ESC XT60 Connector x 1 |
WARNING! This is not a Toy. Improper usage can result in serious injury. RC Simulator practice is recommended before attempting to fly this model. Not suitable for children.
*Manufacturers may change package contents at any time.
| Standard Equipment | |
| Kit | OMP Hobby M4 Max RC Helicopter Combo (Orange) |
| Model | OSHM417P |
| Main Blades | OMP Hobby or RotorTech 420mm |
| Tail Blades | APEX 71mm |
| Electronics Included | |
| ESC | OMP Hobby 85A ESC - XT60 Connector Installed |
| ESC Programing | Bluetooth Module or LCD Programming Card |
| Motor | Sunnysky 8110 - 180KV (6S) |
| Cyclic Servo | OMP Hobby DS2312C |
| Tail Servo | OMP Hobby DS3515T |
| Servo Gears | Metal |
| Servo Case | Metal |
| Flybarless System | Not Included (Recommend Beastx) |
| Specification | |
| Assembly Required | Yes |
| Length | 830mm - 32.68in |
| Height | 226mm - 8.90in |
| Width | 128mm - 5.04in |
| Main Blade Length | 420mm - 16.54in |
| Main Rotor Diameter | 945mm - 37.00in |
| Tail Blade Length | 71mm - 2.80in |
| Tail Rotor Diameter | 190mm - 7.48in |
| Motor Input Voltage | 6S |
| Main Drive Gear | Direct Drive |
| Main Drive Pulley | 99T |
| Tail Drive System | Belt |
| Max RPM (approx.) | 3000RPM |
| Weight Flying (with battery) | 1500g - 3.31lbs approx |
| Battery Size | 2000mAh - 2200mAh |
OMP Hobby M4 Max RC Helicopter Combo (Orange) OSHM417P
- Brand OMP Hobby
- Product Code: 19-OSHM417P
- Availability: In Stock
-
$749.99
