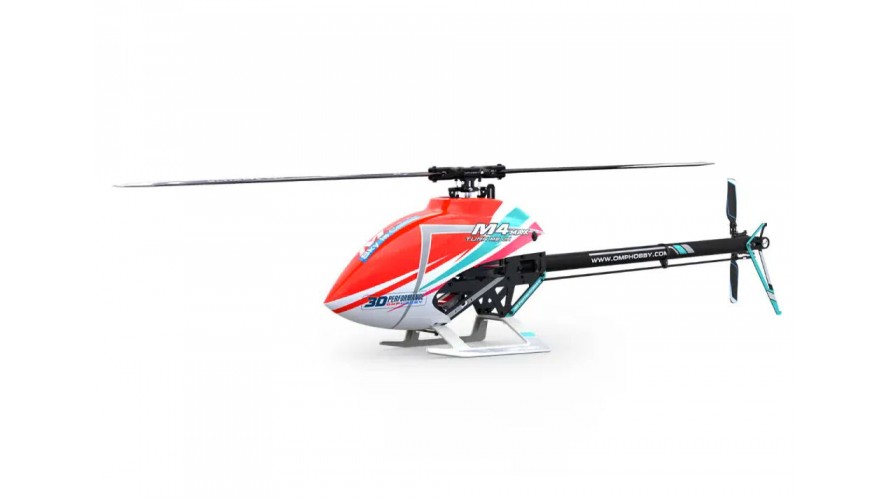

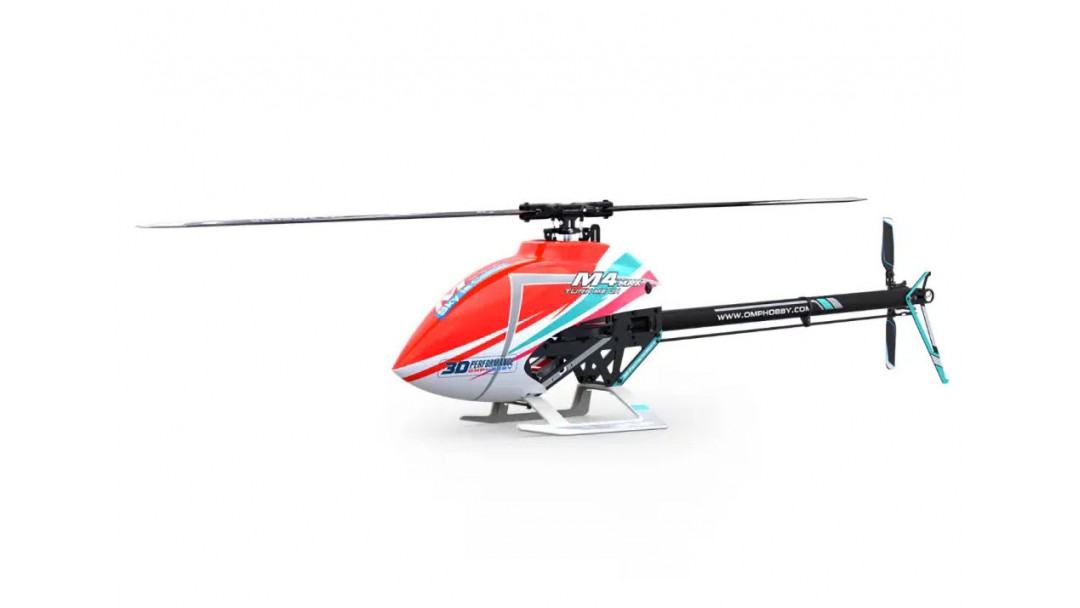

OMP Hobby M4 Max RC Helicopter Electric Series

OMP Hobby M4 Max is based on the proven M4 air-frame with all its beloved features. Swinging 420mm blades, the MAX brings much lower disc loading, enabling smoother and more dynamic flying styles with a much floatier feeling.

Product Information

OMP Hobby M4 Max Kit Only (Includes Motor)

Optional Colors: Green, Pink

Equipment Required for Assembly

Transmitter (6-channel or more, helicopter system)

Cyclic Servo x 3

Tail Servo x 1

80A or 85A ESC x 1

Flybarless Gryo (Recommend Beastx)

Receiver S.bus, DMSX/DMS2, 6-Channel Receiver

6S1P 22.2V 70C 2000mAh OMP Battery - OSHM4049

6S1p 22.2V 45C 2600mAh Gen ace Battery - GEA26006S45X6

ALIGN AP800 Digital Pitch Gauge - HET80001

LiPo Battery Charger

Misc. RC Helicopter Building Equipment and Supplies

Soldering Tool / Supplies

Threadlocker Blue and Red (Recommend Loctite Brand)

Silicone Grease

M4 Max Instruction Manual

Specifications

Assembly Required: Yes

Color: Magic Orange

*Package Includes

OMP Hobby M4 Max Kit - Orange x 1

420 Main Blade Set x 1

71mm Tail Blade Set x 1

WARNING! This is not a Toy. Improper usage can result in serious injury. RC Simulator practice is recommended before attempting to fly this model. Not suitable for children.

*Manufacturers may change package contents at any time.

Standard Equipment
Kit	OMP Hobby M4 Max RC Helicopter Kit ONLY (Orange)
Model	OSHM414K
Main Blades	OMP Hobby or RotorTech 420mm
Tail Blades	APEX 71mm
Electronics Included
Motor	Sunnysky 8110 - 180KV (6S)
Flybarless System	Not Included (Recommend Beastx)
Specification
Assembly Required	Yes
Length	830mm - 32.68in
Height	226mm - 8.90in
Width	128mm - 5.04in
Main Blade Length	420mm - 16.54in
Main Rotor Diameter	945mm - 37.00in
Tail Blade Length	71mm - 2.80in
Tail Rotor Diameter	190mm - 7.48in
Motor Input Voltage	6S
Main Drive Gear	Direct Drive
Main Drive Pulley	99T
Tail Drive System	Belt
Max RPM (approx.)	3000RPM
Weight Flying (with battery)	1500g - 3.31lbs approx
Battery Size	2000mAh - 2200mAh
