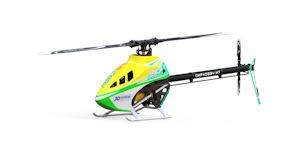

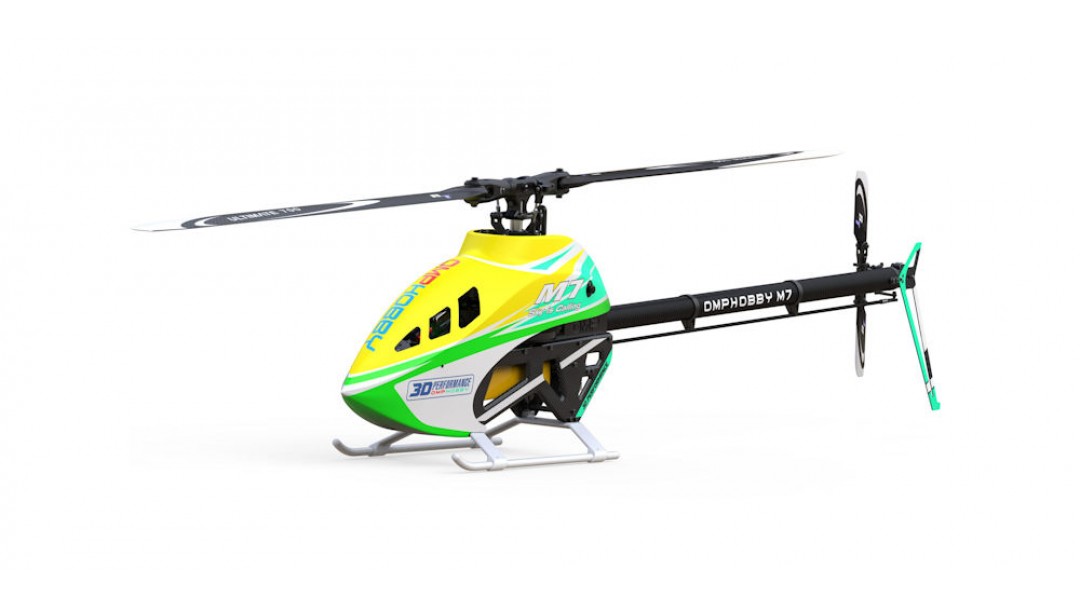

The M7 is OMPHOBBY’s largest helicopter, an actual 700-size machine! With the ability to run up to 715mm and 116mm main rotor blades and a flying weight of around 5300g with standard electronics, this helicopter is ready for anything you could throw at it. Whether your goal is competition-level 3D flying or leisurely hobby flying across the entire RPM range, the M7 will do it all!
|
Product Information OMP Hobby M7 RC Helicopter 700 Class Electric Series Optional Colors: Orange, Gold, Pink Equipment Required for Assembly Transmitter (6-channel or more, helicopter system) Flybarless Gryo (Recommend Beastx) Receiver S.bus, DMSX/DMS2, 6-Channel Receiver Digital HV Cyclic Servo x 3 Digital HV Tail Servo x 1 Motor ESC Battery 5000mAh - 6000mAh 6S1P x 2
|
Specifications Main Blades: RotorTech 700mm Tail Blades: RotorTech 105mm Color: Lime Yellow Package Includes OMP Hobby M7 Max Kit - Yellow x 1 700mm Main Blade Set x 1 105mm Tail Blade Set x 1 |
|
Every detail has been carefully crafted and refined to the highest standards of RC Helicopter flight. |
One piece CNC machined aluminum tail housing, weighing only 24.8g, boosts flight performance and delivers exceptional precision. |
|
Large control throws on all axes provides tremendous control authority and maneuverability. |
Long throw tail rotor design with integrated dynamic weights guarantees maximum precision and unparalleled tail control. |
|
Motor mount with special coaxial flange allows for easy gear meshing. Multiple available gear ratios from 10.90:1 to 8:1 |
Canopy quick release mounts for easy installation and removal of canopy. |
|
Molded 3D Carbon Fiber lower frame with Quick release dual-lock battery system reduces weight and parts count while retaining extraordinary durability and stiffness. |
Vibration isolating gyro mount with optional steel mas damper for further vibration isolation allows the flybarless controller to deliver peak performance. |
|
Innovative helical driven belt tensioner system allows for quick adjustments without any requirement for tools. |
Convenient and clean wiring paths in the frame make cable management a breeze. |
|
Large diameter strut-less Carbon Fiber tail boom. Matching painted aluminum tail boom also included. |
7075 grade aluminum alloy on all moving and highly loaded parts. |
|
Regular RPM Flight Video |
Low RPM Flight Video |
| Standard Equipment | |
| Kit | OMP M7 Helicopter Kit Yellow w/ (700mm Main & 105mm Tail Blades) |
| Model | OSHM702Y or OMP-M7-KIT-BY |
| Main Blades | RotorTech 700mm |
| Tail Blades | Rotor Tech 106mm |
| Electronics Included | |
| Flybarless System | Optional Recommend Beastx Ultra |
| Flybarless Programming | Lights & Dials, or Studiox APP using Optional BLE2SYS Bluetooth Device |
| Stabilization Level Mode | Optional Update |
| Rescue Mode | Optional Update |
| Receiver Supported | DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver |
| Specification | |
| Assembly Required | Yes |
| Length | 1418 mm - 55.86 in |
| Height | 363mm - 14.29in |
| Width | 194mm - 7.63in |
| Main Blade Length | 700mm to 715mm |
| Main Rotor Diameter | 1588mm - 62.51in |
| Tail Blade Length | 106mm to 115mm |
| Motor Pinion Gear | 13T (included) Optional Sizes Available |
| Main Drive Gear | 120T |
| Main Drive Pulley | 110T |
| Tail Drive System | Belt |
| Drive Gear Ratio | 10.90:1 to 8:1 (Multiple Options) |
| Weight Flying (with battery) | 2225g - 78.48oz |
| Battery Size | 5000mAh - 6000mAh x 2 |
OMP M7 Helicopter Kit w/ RotorTech 700mm - 106mm Blades (Yellow) OSHM702Y
- Brand OMP Hobby
- Product Code: 20-OSHM702Y
- Availability: Out Of Stock
-
$999.99
