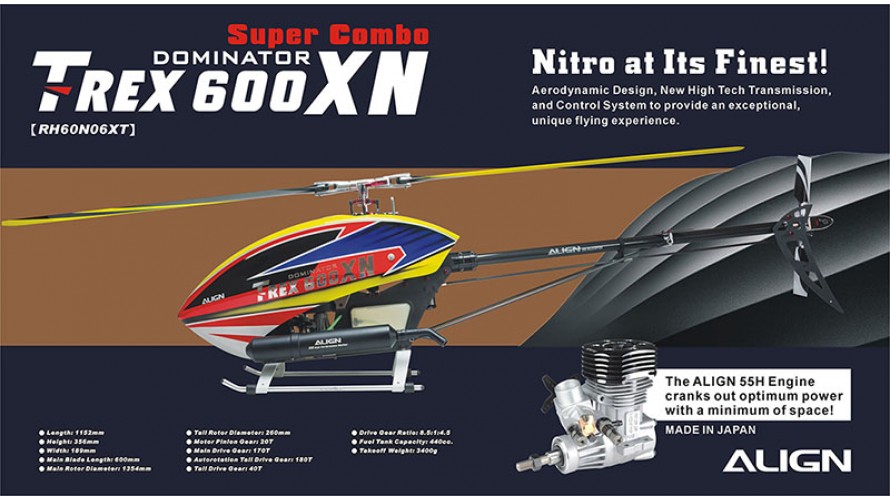

T-REX 600XN Dominator Super Combo by Align.
One of the most classic ALIGN models, T-REX 600N nitro helicopter. In 2018, we bring you the brand new design of T-REX 600XN, it inherits the design of T-REX 700XN featuring innovation, rigidity and lightness. Extremely perfection and precision, the T-REX 600XN is about to excite your inner soul to bring back your passion for nitro.
T-REX 600XN adopts the new direct to swashplate servo design, compared to the previous generation T-REX 600N’s push-pull mode control, provides precise and fast control! Utilizing the 550 Flybarless Rotor Head System features an extremely low Center of Gravity (CG) design, to effectively reduces resistance during 3D maneuvers, and increase flight responsiveness and precision. This designed maintains a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior stable flight performance. The Engineered Narrow Body Design efficiently decrease gear abrasion and frame deformation during flight. The T-REX 600XN maintains the proper CG, by moving the engine forward to allow the fuel tank to be positioned in the center of the main shaft. CG remains consistent as the fuel level changes during flight.
The new steel alloy clutch liner is durable with temperature control designed to avoid the exploding clutch liner or a breaking clutch housing. The steel alloy clutch liner extends the life to over a 1000 flights. The Receiver Mount provides cable and wiring protection, and easy to maintenance by removing a few screws from the mainframe.
The new high voltage output: 6A 7.4V BEC with down / regulation system for constant power to the CCPM server channel for receivers and servos. Includes a built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Also increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos. The brand new DS820M/DS825M high voltage brushless servos use brushless motors for fast speed, high torque, superior, and efficient reaction time allows the Align 600XN precise, fast performance. The new CNC machined aluminum case design is aesthetically appealing while acting as a highly efficient heat sink.
The new generation of T-REX 600XN innovative design will excite your inner soul to bring back your passion for nitro!
After performing many tests to determine the most efficient aerodynamic canopy we are pleased to release this brand new lightweight canopy! This ultimate canopy made of glass and carbon fiber is lightweight and achieves best dynamic performance. Also a new unique paint scheme for the newest member of the T-REX family.
Landing skid is tilted 5 degree forward which improves crashworthiness.
Engineered Narrow Body Design efficiently decrease gear abrasion and frame deformation during flight. The Align T-REX new narrow body design is stronger and increases flight durability.
The new direct to swashplate servo design provides precise and fast control. Designed to maintain a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior and stable flight performance.
Align Advanced Metal Swashplate strongly connects to the rotor holder grips preventing rotor head disengagement during intense flight. Two optional linkage ball mounting holes allow for personal selection of resolution based on desired flight performance.
Receiver mount provides cable and wiring protection, easy to maintain equipment by removing a few screws from the mainframe.
Maintaining the proper Center of Gravity CG is important for helicopters. After extensive Research and Development, moving the engine forward allowed the fuel tank to be positioned in the center of the main shaft. This optimum location for the fuel tank permits the 600XN to maintain consistent CG as the fuel level changes during flight.
The idler pulley gear improves rotation stability and effectively reduces the load from the gears while increasing bearing capacity. The gears made of steel alloy are high strength and wear resistant.
CNC metal reinforcement plate and brace align with frame mounting bolts effectively increasing the torsional strength of the mainframe. Under extreme 3D maneuvers, you can feel the improved reinforcement to the mainframe. Also, the plate helps with engine cooling and adds additional protection for the motor.
DS820M Digital Servo: Designed specifically for helicopters, utilizing a brushless motor for speed, high torque, and efficient reaction time, allowing the Align 700X to perform fast with precision. The DS820M high voltage brushless servo is equipped with a new CNC machined aluminum case. This case exhibits top of the line servo aesthetics while providing a heat sink function for the best protection of the servo.
B6M 2 In 1 Voltage Regulator: High voltage output 6A 7.4V BEC with down / regulation system for stable power for receiver and servos. Built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos.
MADE IN JAPAN ALIGN Hyper engine for superior 55 size helicopter 40L dual needle carburetor, makes the adjustment much more precisely. Delivers more horsepower for higher rotor speeds. Brand new crankshaft design. Increase the efficiency of intake/exhaust and makes the power stronger. Besides good looks and excellent cooling, this engine is machined blue alumite heat sink head also boosts combustion efficiency for more power stability.
Maximize the efficiency when operating with ALIGN 50 High Performance Muffler.
An integrated motor mounting bracket allows for efficient heat dissipation from the motor. The superior Cooling Motor Mount is CNC from high strength aluminum alloy, and anodized for aesthetically pleasing appearance.
Dual-sided tail servo mount strengthens the entire frame structure while allowing for better accessibility when servicing the 600XN.
Brand new strengthened precision design with high-end M4x8 hexagonal screw upgrade. The new rigid design improves and strengthens the entire structure enhancing tail performance for all pilots.
Align 55H Engine, Align 50 High Performance Muffler, B6M 2 In 1 Voltage Regulator , Beastx Governor Sensor, DS820M HV Digital Servo, DS825M HV Digital Servo, DS530 HV Digital Servo
|Kit||T-REX 600XN Dominator kit|
|Main Blades||Align 600mm Carbon Fiber Main Blades Nitro|
|Tail Blades||Align 95mm Carbon Tail Blades|
|Cyclic Servo||Align DS820M HV Digital Servo x 3|
|Tail Servo||Align DS825M HV Digital Servo|
|Engine||Align 55H Engine|
|Muffler||Align 50 High Performance Muffler|
|Voltage Regulator||Align B6M 2 In 1 High Voltage Regulator|
|Throttle Servo||Align DS530 HV Digital Servo|
|Throttle Servo Gear||Metal|
|Throttle Servo Case||Metal - Plastic|
|Governor Sensor||Beastx Governor Sensor|
|Length||1152mm - 45.36in|
|Height||356mm - 14.02in|
|Width||189mm - 7.44in|
|Main Blade Length||600mm - 23.62in|
|Main Rotor Diameter||1354mm - 53.30in|
|Tail Blade Length||95mm - 3.74in|
|Tail Rotor Diameter||260mm - 10.24in|
|Motor Pinion Gear||20T|
|Main Drive Gear||170T|
|Autorotation Driver Gear||180T|
|Tail Drive Gear||40T|
|Tail Drive System||Torque Tube|
|Tail Boom Length||625mm - 24.60i|
|Drive Gear Ratio||8.5:1:4.5|
|Weight (Without Battery)||3400g - 119.93oz|
T-REX 600XN Dominator Super Combo RH60N06X
- Brand Align
- Product Code: 01-RH60N06X
- Availability: In Stock
