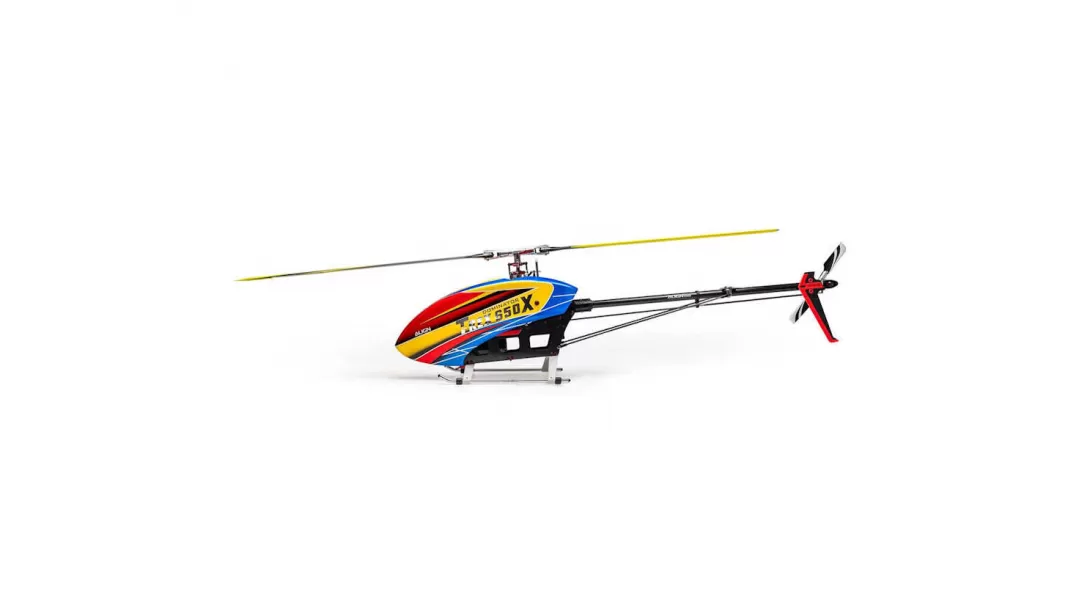

T-REX 650X Dominator Super Combo by Align.

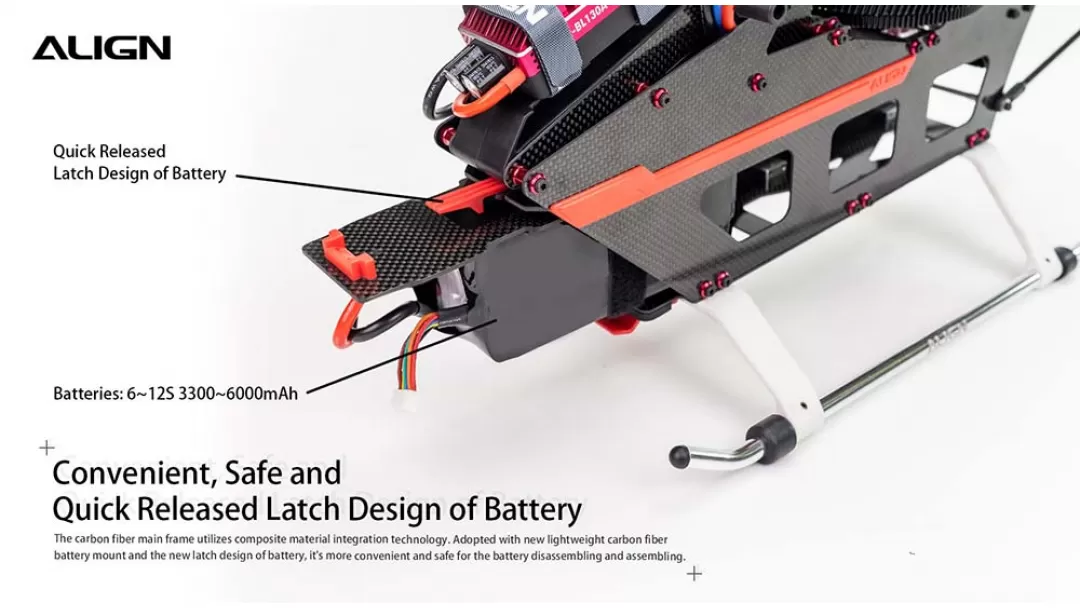

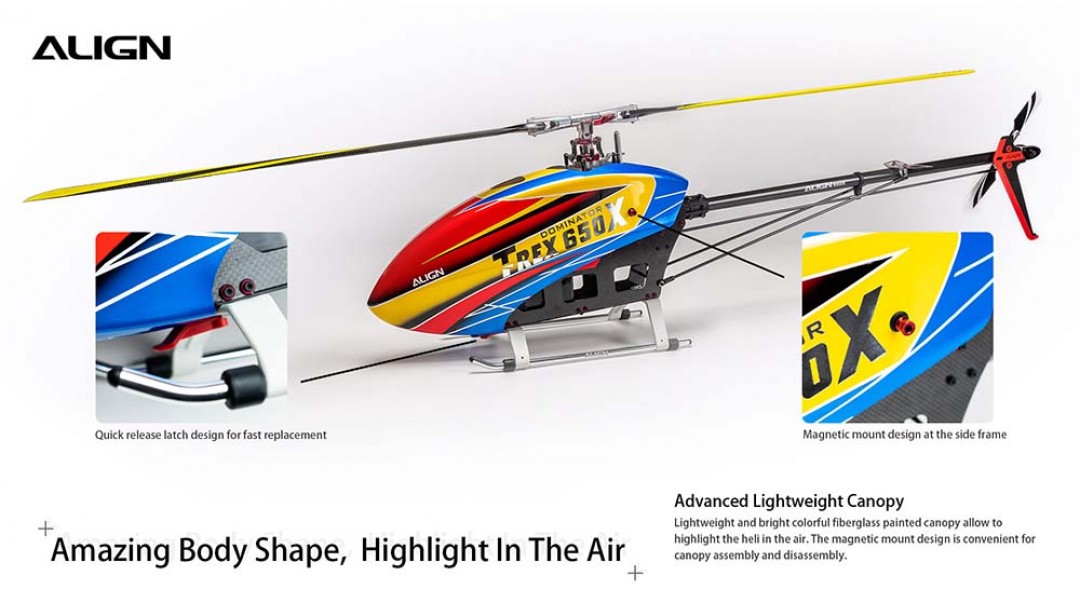

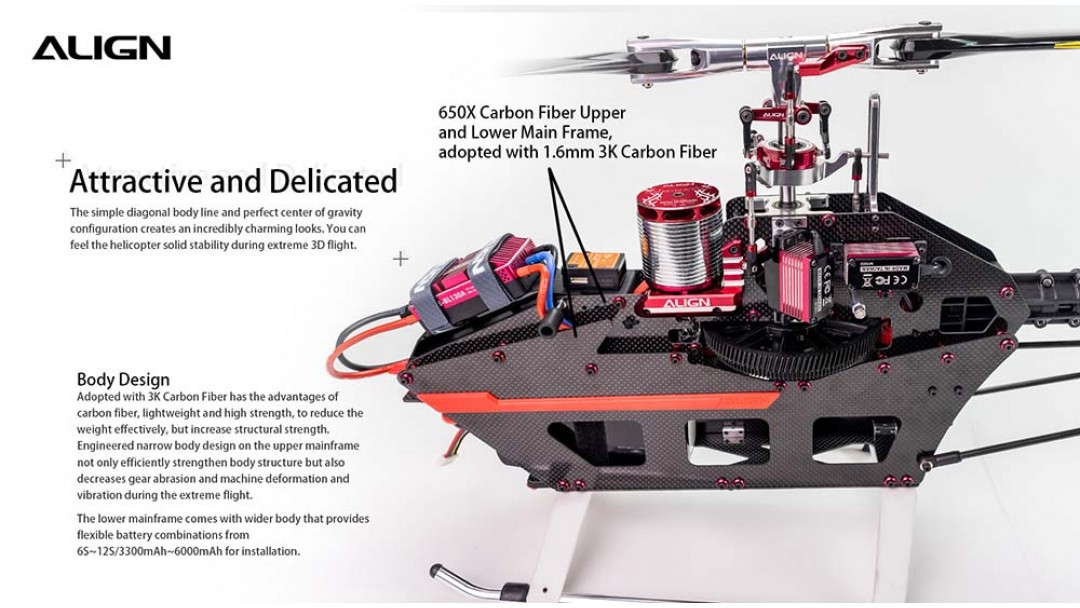

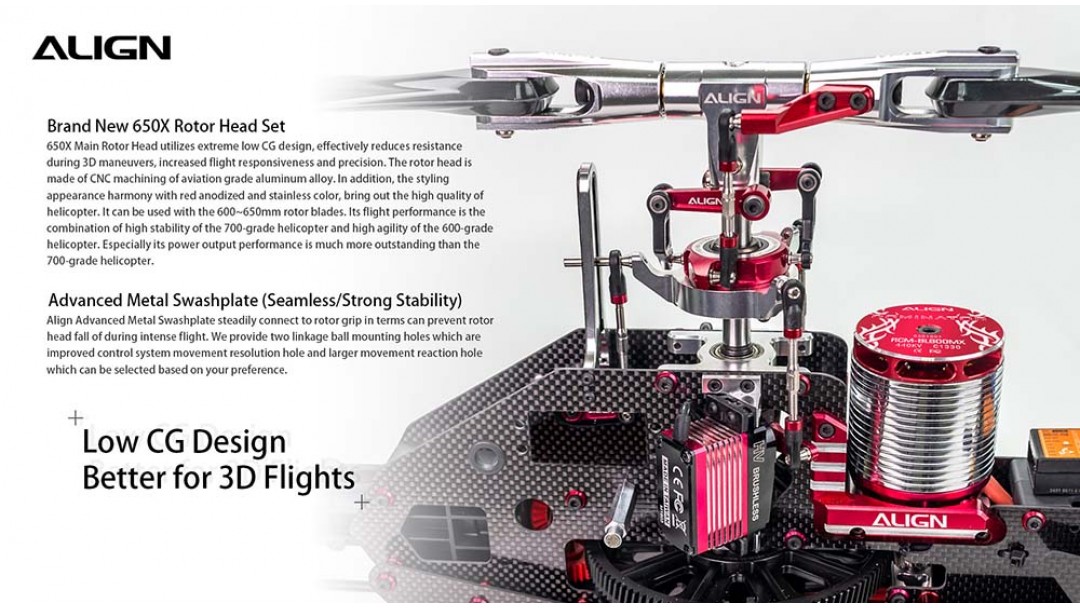

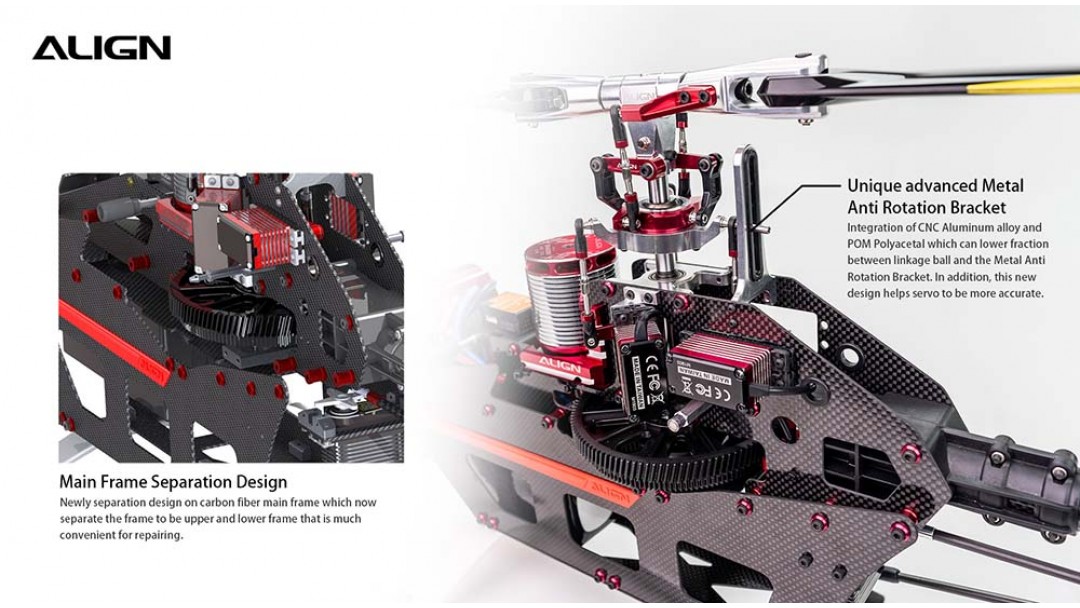

“T-REX 650X Dominator Super Combo” is special design both for hobby use and 3D competition. T-REX 650X body size is between T-REX 600 and T-REX 700 grade helicopter. It adopts integrated composite material and technology that efficiently enhance structure intensity and make repair convenience. The upper narrow main frame allow to strengthen the structure but also prevent body from deformation, vibration and gear abrasion in extreme flights. The lower wider main frame is designed with quick release latch for battery that makes battery assembly and disassembly more convenient and safe. The flybarless rotor head is low CG design better for 3D flight allow to reduce wind-resistance also improve superior flying feel and stability. So ALIGN T-REX 650X shows excellent flight performance in both 3D aggressive flight, slow 3D and F3C flight!

T-REX 650X is equipped with ALIGN 800MX motor with excellent torque and high efficiency. Besides, the reinforcement plate can not only strengthen machine structure, but also can efficiently lower motor heat up to 20°C on every flight on average. Pilots can choose main blades from 600~650mm based on their preference for outstanding flight performance.

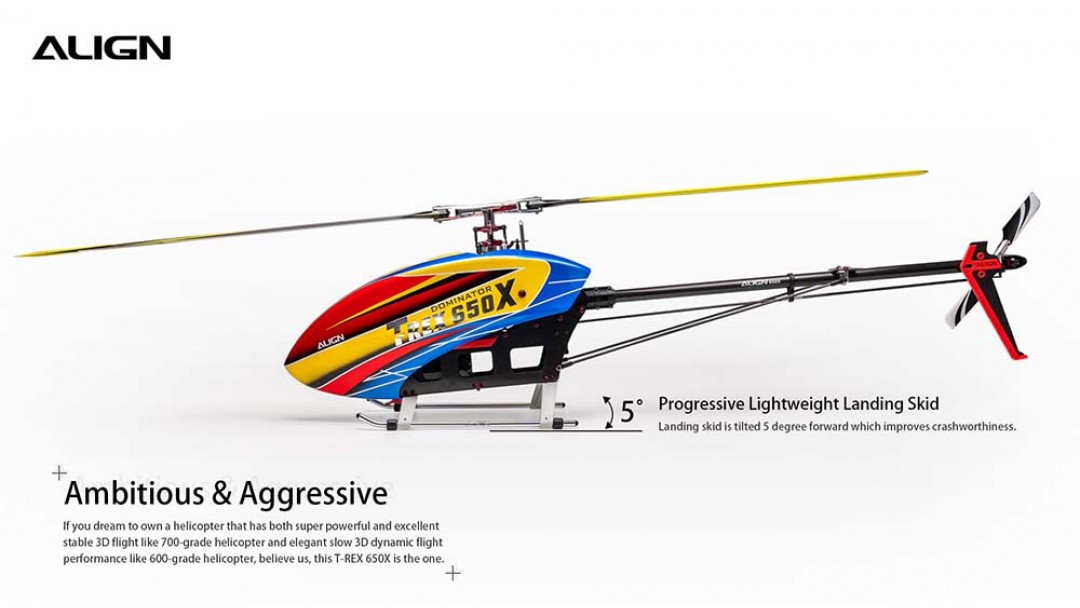

“T-REX 650X Dominator Super Combo” is the helicopter for all pilots that has both super power and excellent stable 3D flight like 700-grade helicopter and elegant slow 3D dynamic flight performance like 600-grade helicopter.

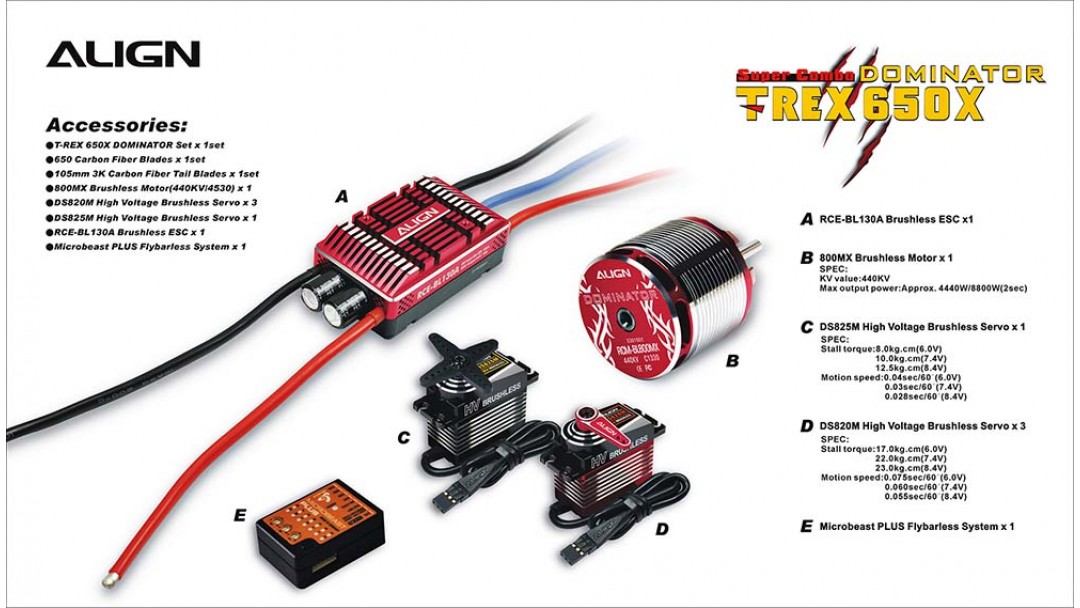

Standard Equipment

T-REX 650X DOMINATOR Kit x 1

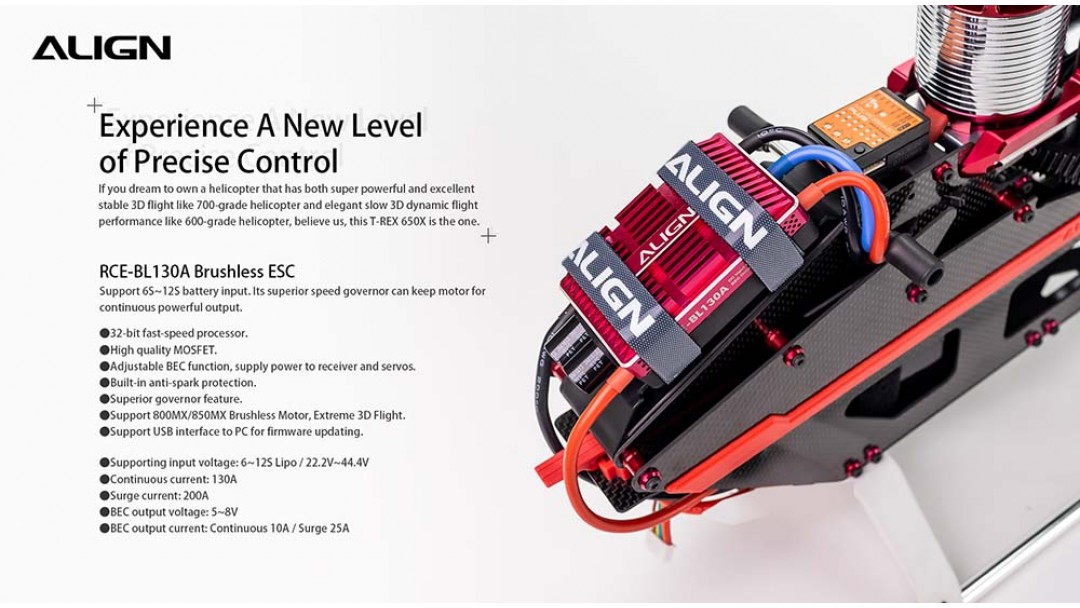

RCE-BL130A Brushless ESC x 1

800MX Brushless Motor (440KV/4530) x 1

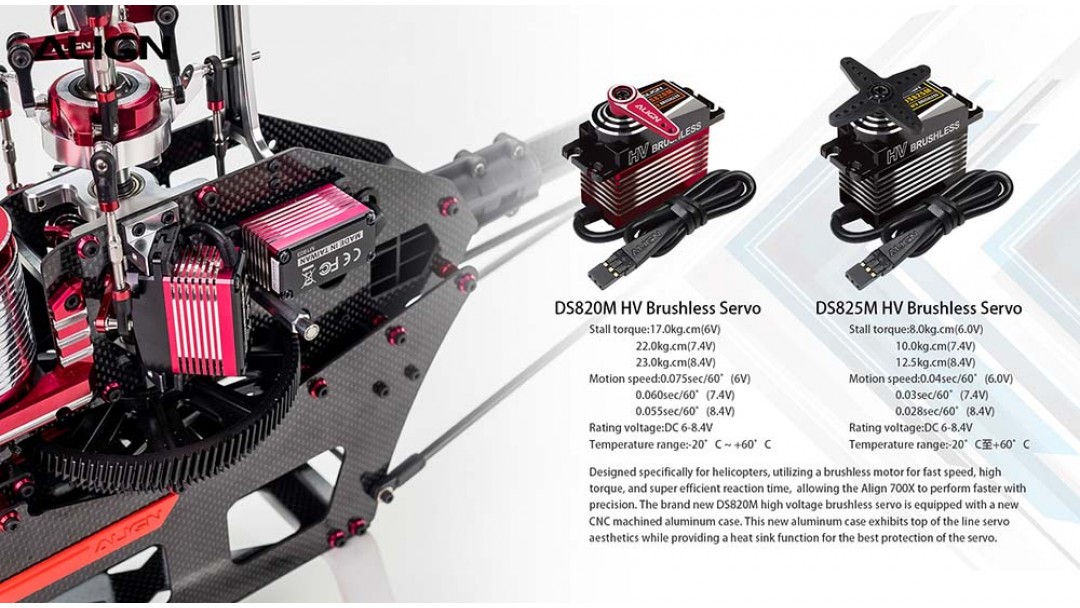

DS820M High Voltage Brushless Servo x 3

DS825M High Voltage Brushless Serrvo x 1

650mm Carbon Fiber Main Blades Set x 1

105mm Carbon Tail Blades Set x 1

Microbeast PLUS Flybarless System x 1

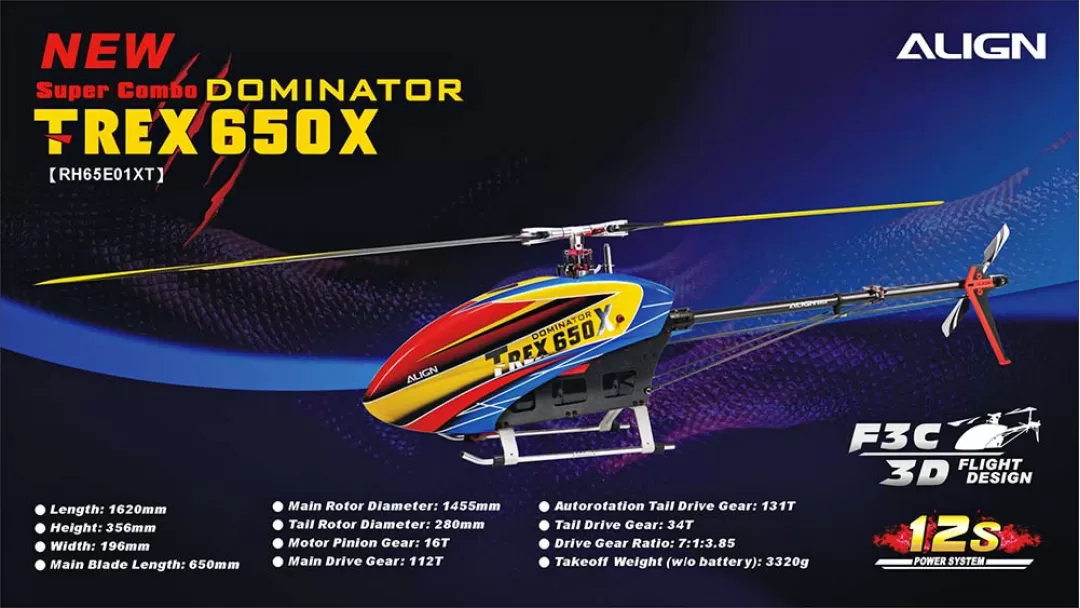

T-REX 650X Specification

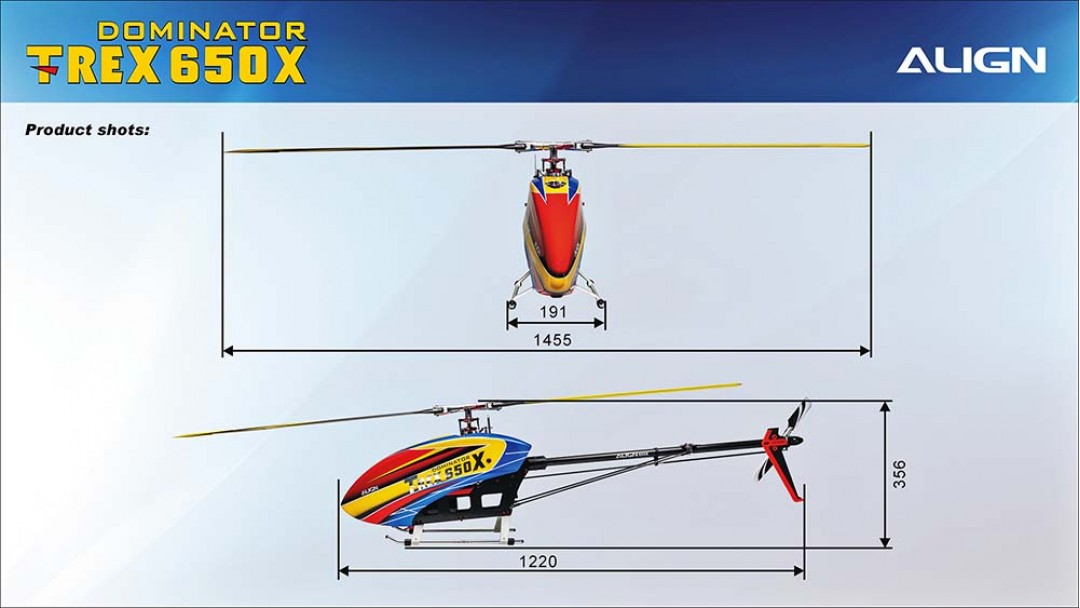

Length: 1220mm

Height: 356mm

Width: 191mm

Main Blade Length: 650m

Main Rotor Diameter: 1455mm

Tail Rotor Diameter: 280mm

Motor Pinion Gear: 16T

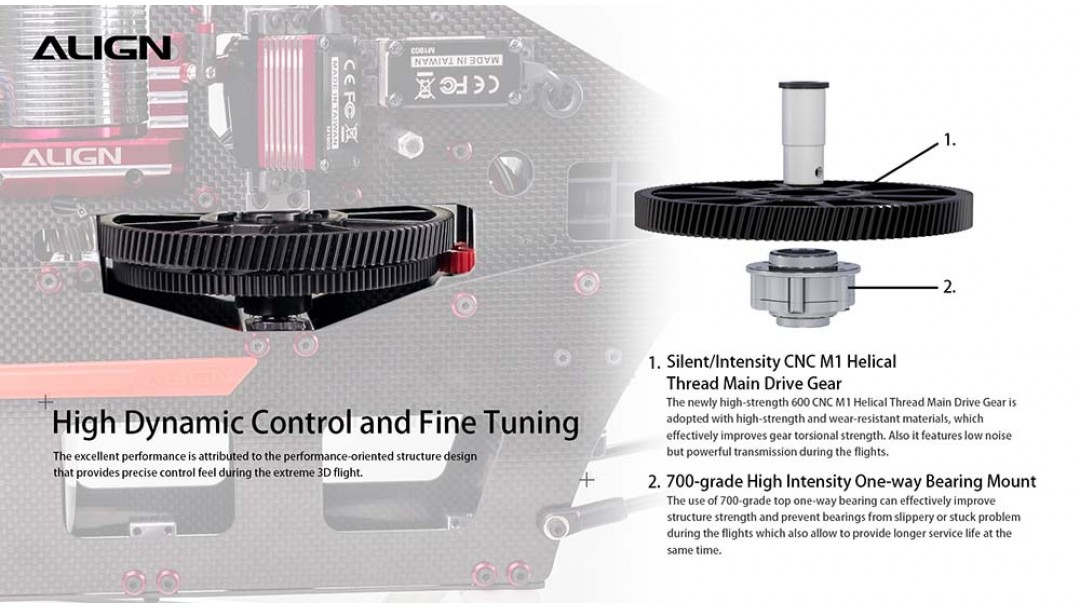

Main Drive Gear: 112T

Autorotation Driver Gear: 131T

Tail Drive Gear: 34T

Drive Gear Ratio: 7:1:3.85

Weight (no battery): 3320g approx.

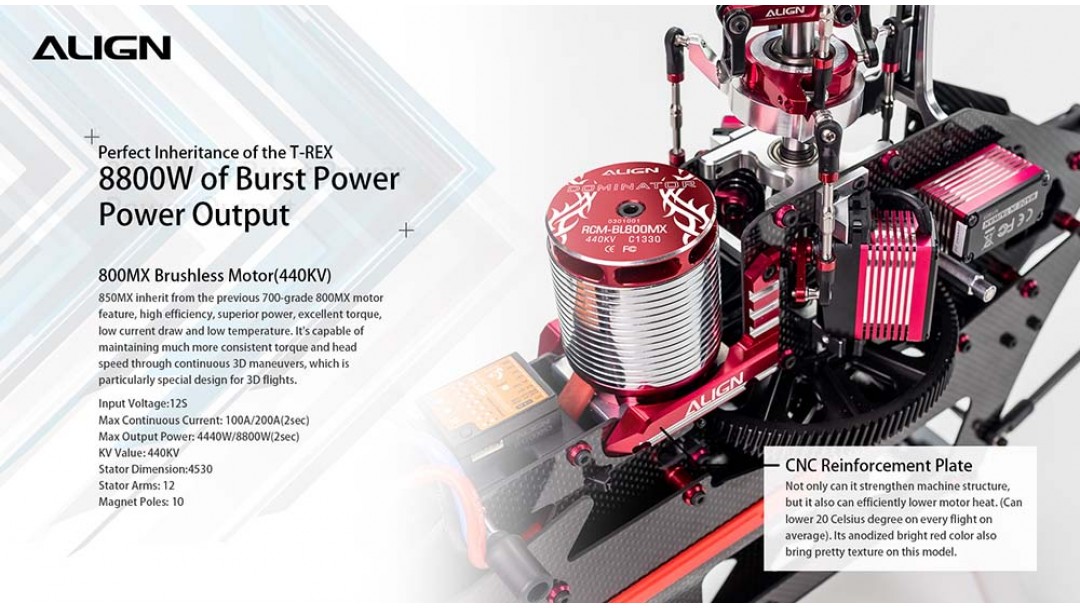

800MX (440KV / 4530) Brushless Motor

Input Voltage: 12S

Max Continuous Current: 100A/200A(2sec)

Max Output Power: 4440W/8800W(2sec)

KV Value: 440KV

Stator Dimension: 4530

Stator Arms: 12

Magnet Poles: 10

Dimension: Spindle 6x56.7x94.5mm

 Weight: 508g



Equipment Required for Assembly

Transmitter (6-channel or more, helicopter system)

Receiver S.bus, DMSX/DMS2 , Standard Receiver (6-channel or more)

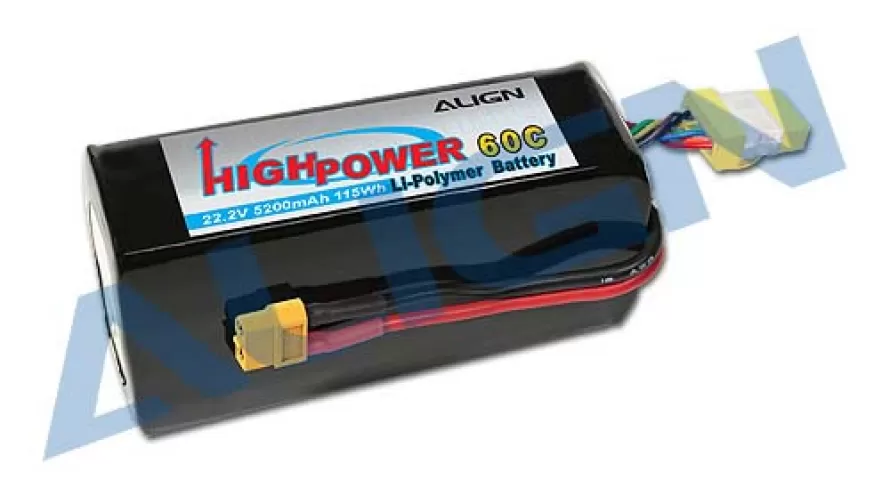

6S - 22.2V 3000mAh - 5200mAh  Battery x 2

Digital Pitch Gauge

Misc. Building Equipment



Standard Equipment
Kit T-REX 650X Dominator Kit
Main Blades Align 650mm Carbon Fiber Main Blades
Tail Blades Align 105mm Carbon Fiber Tail Blades
Electronics Included
ESC Align RCE-BL130A Brushless ESC
ESC Programing Align ASBOX Multifunction Programmer HES00001
Motor Align 800MX Brushless Motor (440KV/4530)
Cyclic Servo Align DS820M High Voltage Brushless Servo x 3
Tail Servo Align DS825M High Voltage Brushless Serrvo
Servo Gears Metal
Servo Case Metal
Flybarless System Microbeast Plus by Beastx
Flybarless Programming Lights & Dials, or Studiox APP using Optional USB or Bluetooth Device
Stabilization Level Mode Optional Update
Rescue Mode Optional Update
Receiver Supported DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver
Specification
Assembly Required Yes
Length 1220mm - 48.03in
Height 356mm - 14.01in
Width 191mm - 7.52in
Main Blade Length 650mm - 25.59in
Main Rotor Diameter 1455mm - 57.28in
Tail Blade Length 105mm - 4.13in
Tail Rotor Diameter 280mm - 11.02in
Motor Input Voltage 12S
Motor Pinion Gear 16T
Main Drive Gear 112T
Autorotation Driver Gear 131T
Tail Drive Gear 34T

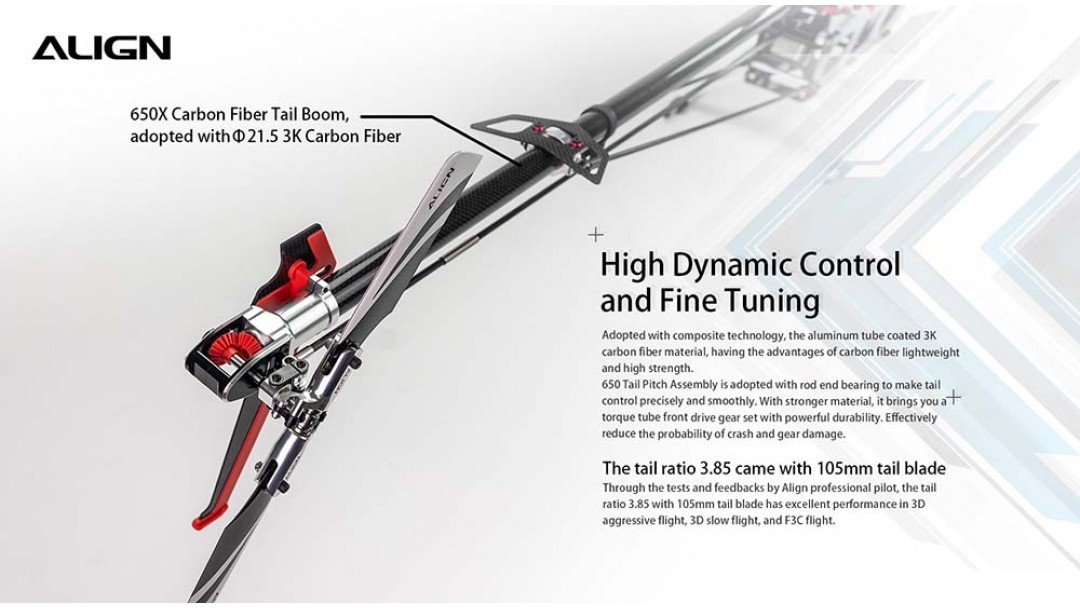

Tail Drive System Torque Tube
Drive Gear Ratio 7:1:3.85
Weight (Without Battery) 3320g - 117.1oz
T-REX 650X Super Combo

T-REX 650X Super Combo

T-REX 650X Kit

T-REX 650X Kit

T-REX 650X F3C Super Combo

T-REX 650X F3C Super Combo

Price $1,525.99 $881.99 $1,525.99
Rating
General
Kit T-REX 650X Dominator Kit T-REX 650X Dominator Kit T-REX 650X Dominator Kit
Main Blades Align 650mm Carbon Fiber Main Blades Align 650mm Carbon Fiber Main Blades Align 650mm Carbon Fiber Main Blades
Tail Blades Align 105mm Carbon Fiber Tail Blades Align 105mm Carbon Fiber Tail Blades Align 105mm Carbon Fiber Tail Blades
ESC Align RCE-BL130A Brushless ESC Align RCE-BL130A Brushless ESC
Specification
Length 1220mm - 48.03in 1220mm - 48.03in 1220mm - 48.03in
Height 356mm - 14.01in 356mm - 14.01in 356mm - 14.01in
Width 191mm - 7.52in 191mm - 7.52in 191mm - 7.52in

Write a review

Please login or register to review

T-REX 650X Dominator Super Combo RH65E01X

  • Brand Align
  • Product Code: 01-RH65E01X
  • Availability: In Stock
  • $1,525.99
  • $1,387.99
