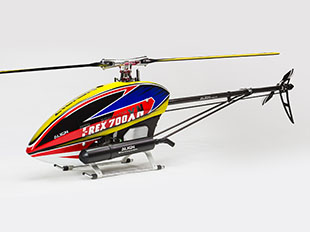

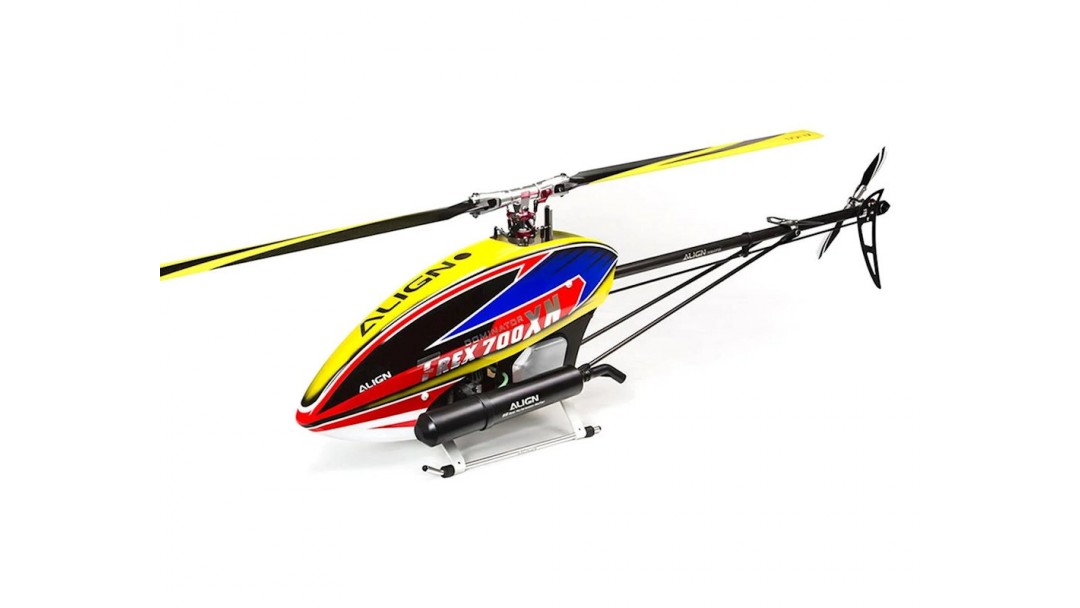

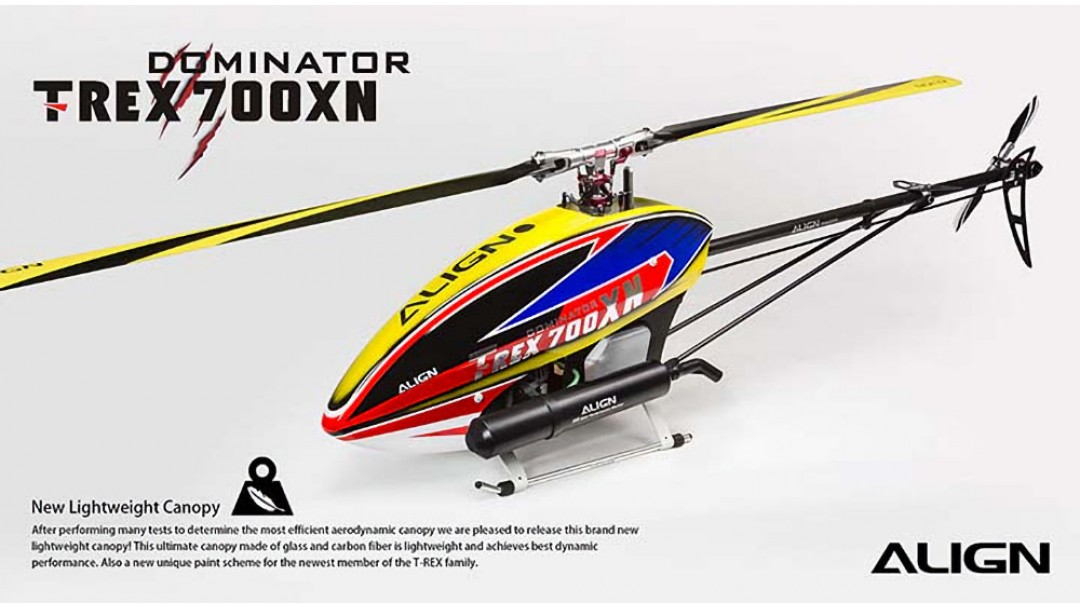

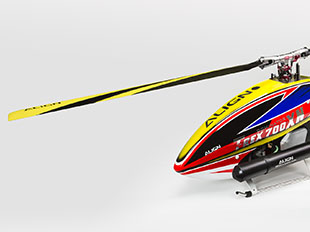

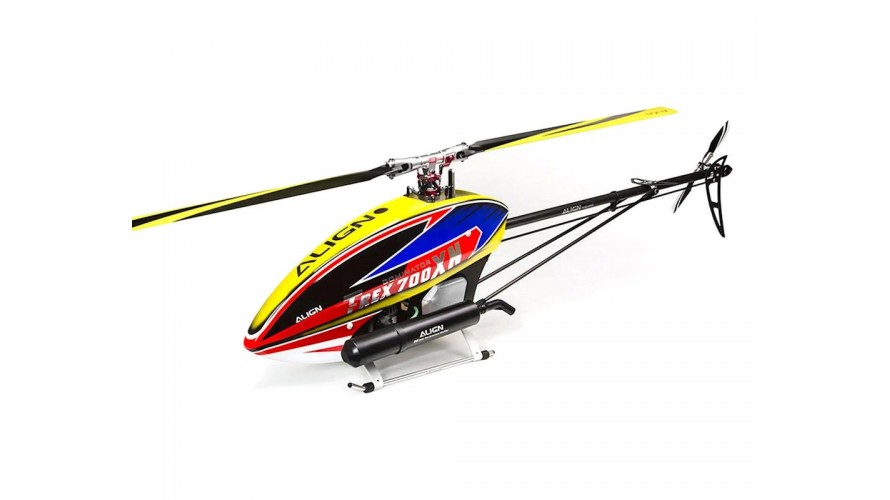

T-REX 700XN Domintor Combo by Align

How long has it been since you have heard the roaring sound of a nitro motor? How long have you had passionate feelings to own a nitro helicopter? The new combination of steel, precision parts, and lightweight is the ultimate perfect innovative design, the new generation T-REX 700XN.

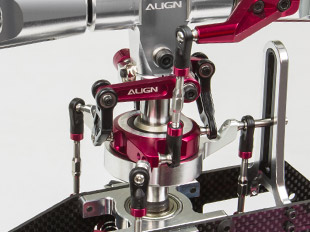

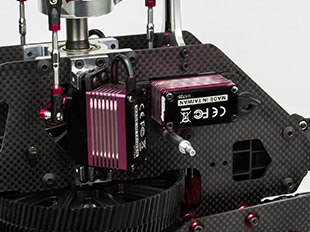

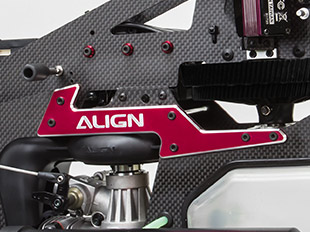

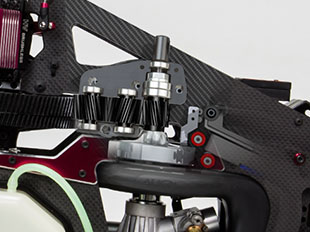

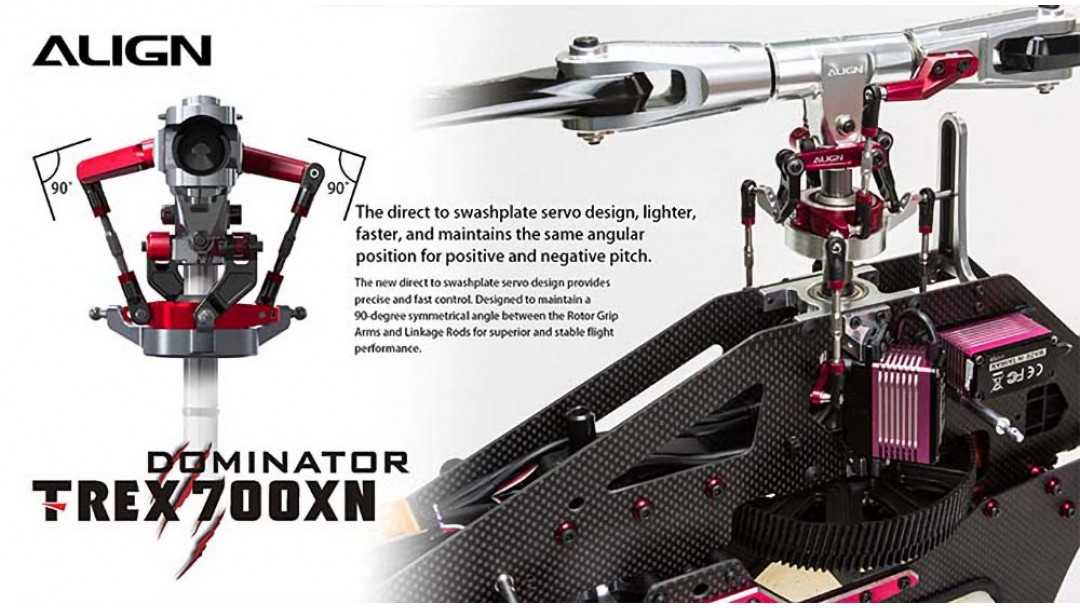

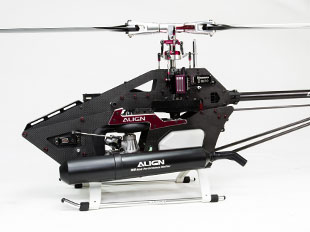

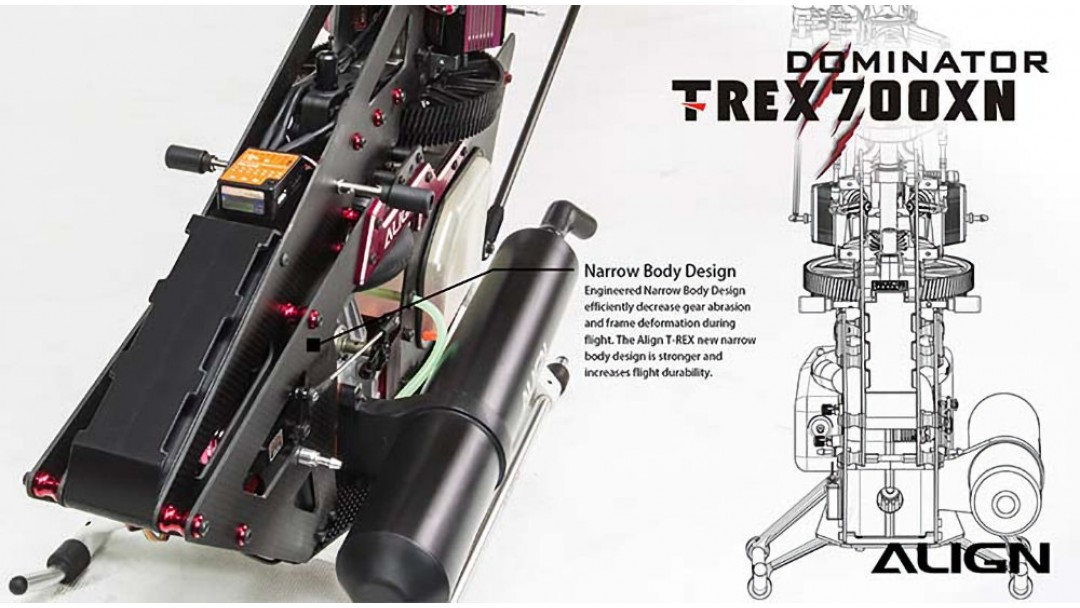

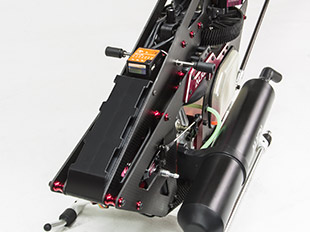

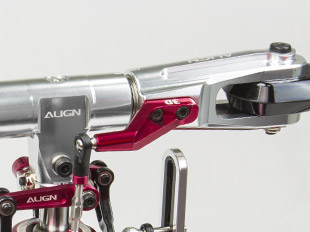

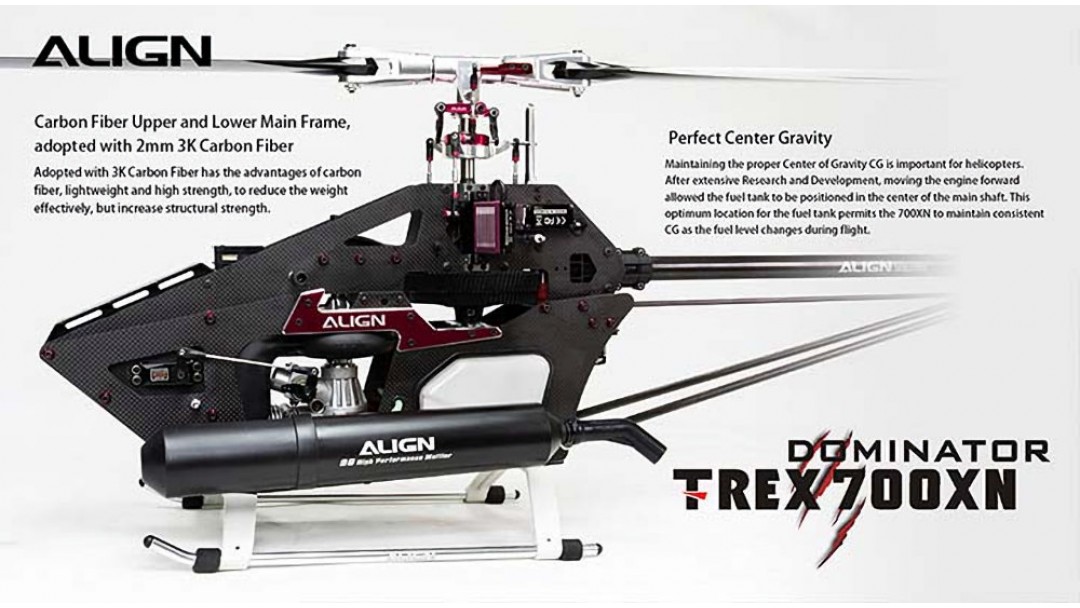

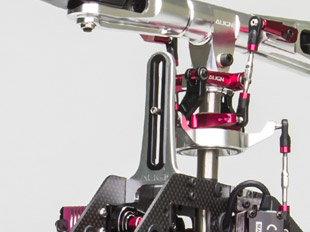

T-REX 700XN adopts the new direct to swashplate servo design, compared to the previous generation T-REX 700N’s push-pull mode control, provides precise and fast control! Utilizing the 700X Flybarless Rotor Head System features an extremely low Center of Gravity (CG) design, to effectively reduces resistance during 3D maneuvers, and increase flight responsiveness and precision. This designed maintains a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior stable flight performance. The Engineered Narrow Body Design efficiently decrease gear abrasion and frame deformation during flight. The T-REX 700XN maintains the proper CG, by moving the engine forward to allow the fuel tank to be positioned in the center of the main shaft. CG remains consistent as the fuel level changes during flight.

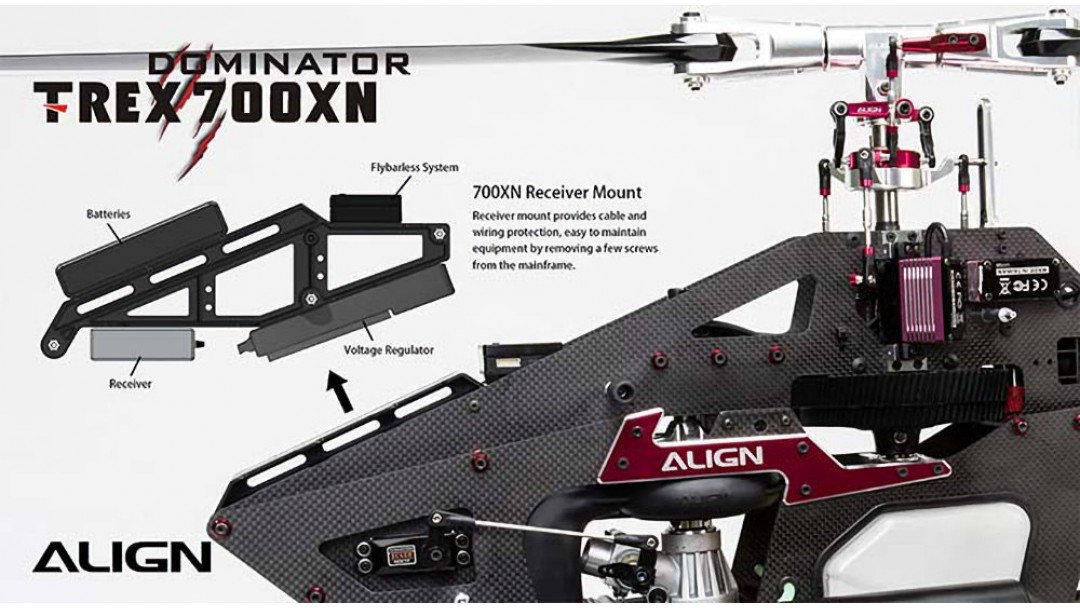

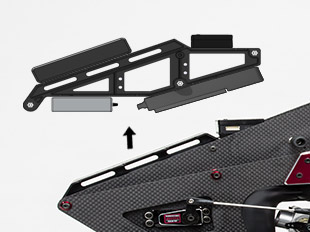

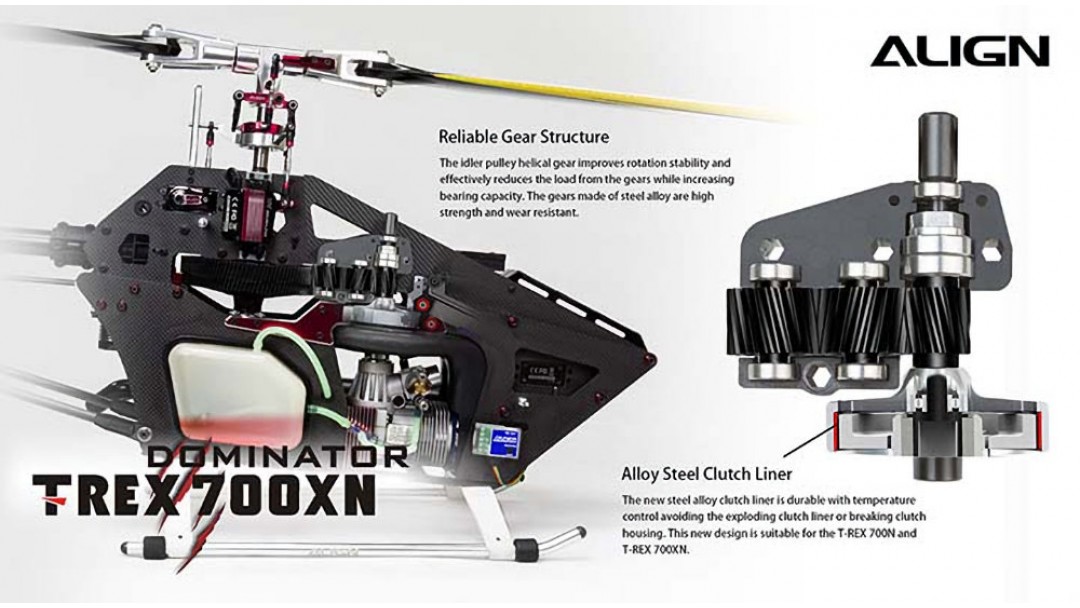

The new steel alloy clutch liner is durable with temperature control designed to avoid the exploding clutch liner or a breaking clutch housing. The steel alloy clutch liner extends the life to over a 1000 flights. The Receiver Mount provides cable and wiring protection, and easy to maintenance by removing a few screws from the mainframe.

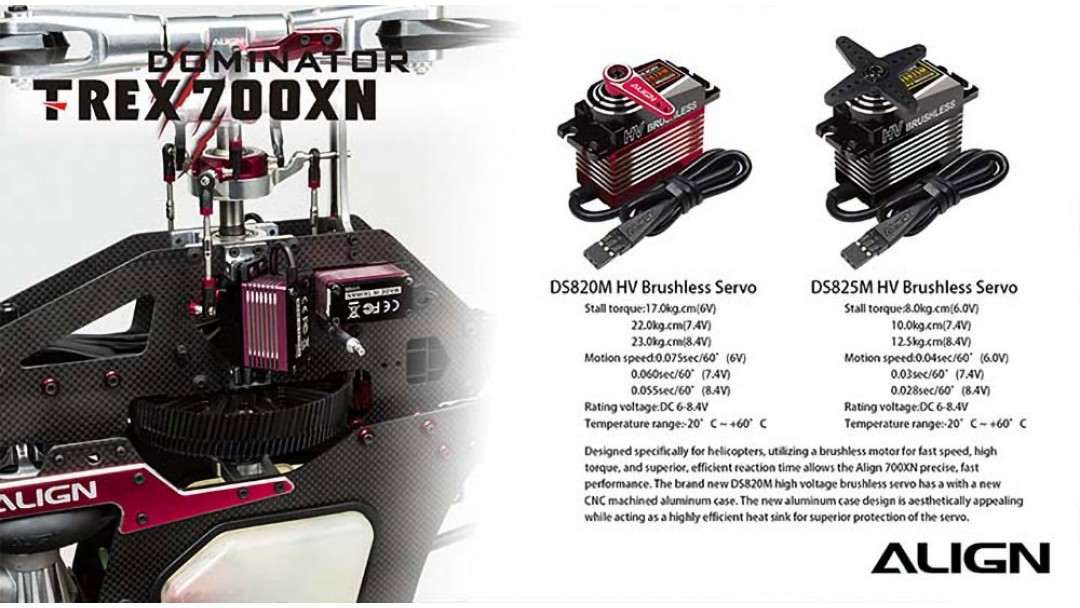

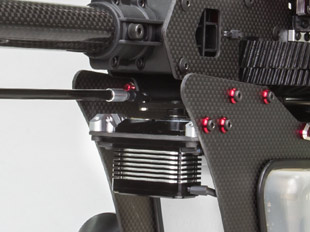

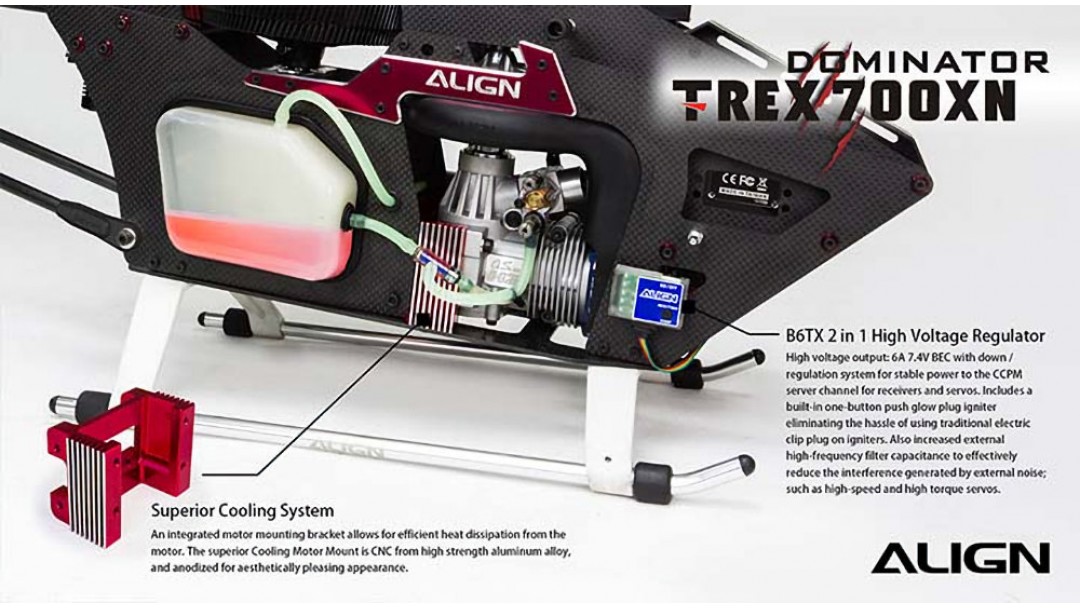

The new high voltage output: 6A 7.4V BEC with down / regulation system for constant power to the CCPM server channel for receivers and servos. Includes a built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Also increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos. The brand new DS820M/DS825M high voltage brushless servos use brushless motors for fast speed, high torque, superior, and efficient reaction time allows the Align 700XN precise, fast performance. The new CNC machined aluminum case design is aesthetically appealing while acting as a highly efficient heat sink.

The new generation of T-REX 700XN innovative design will excite your inner soul to bring back your passion for nitro!

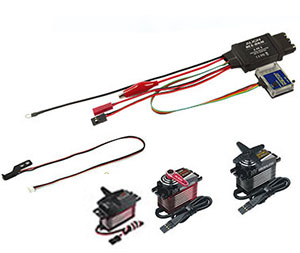

Standard Equipment

T-REX 700XN Nitro Kit x 1

DS820M HV Brushless Servo x 1 Pulse: 1520µs / Freq: 333hz

DS825M HV Brushless Servo x 3 Freq: 200hz

DS530 HV Brushless Servo x 1

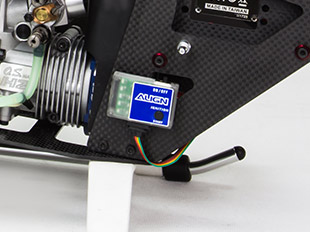

Governor Sensor x 1

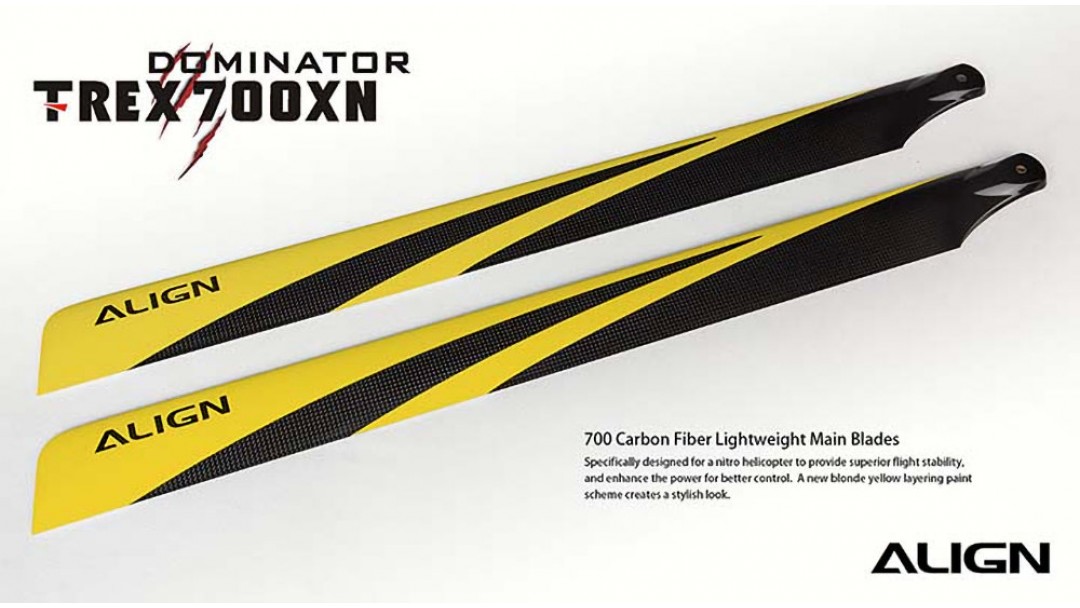

700 Nitro Carbon Fiber Blades x 1

106mm 3K Carbon Fiber Tail Blades x 1 set

B6TX 2 In 1 HV Regulator Combo x 1

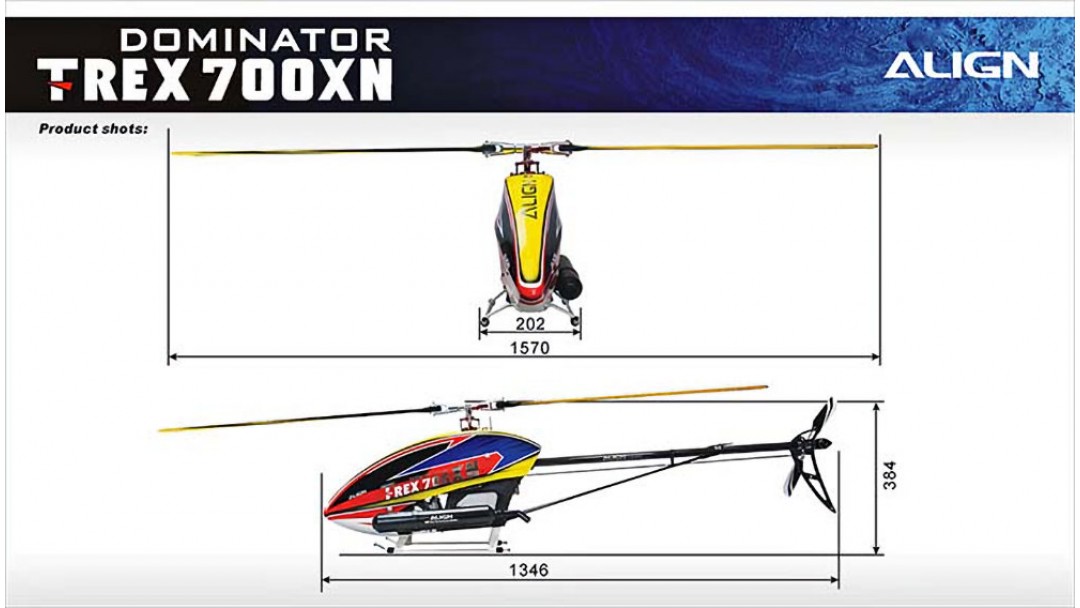

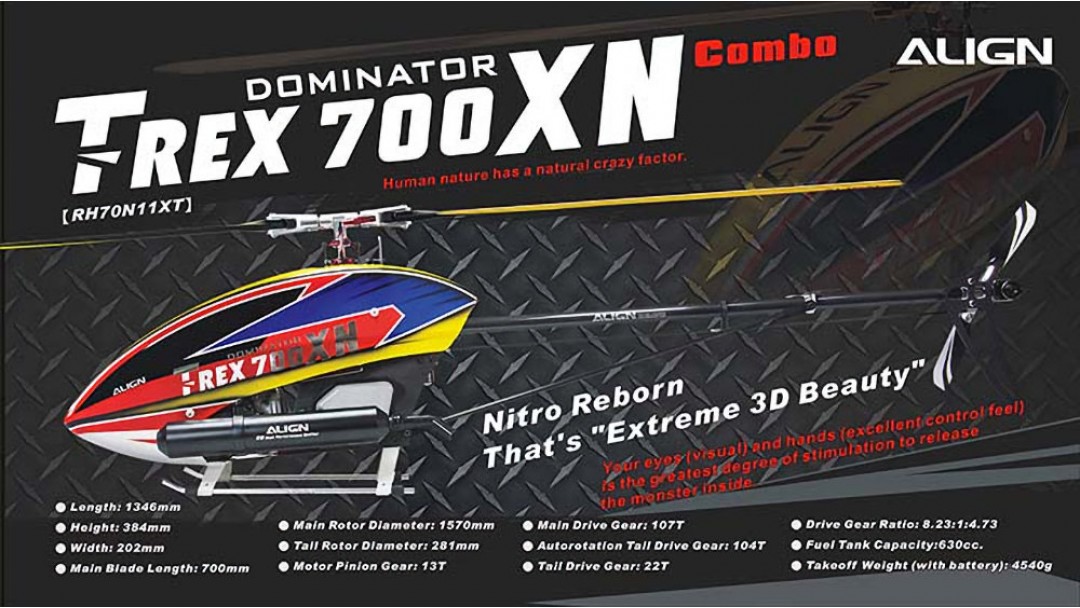

Specifications

Length: 1346mm - 52.99In

Height: 384mm - 15.11In

Width: 202mm - 7.95In

Main Blade Length: 700mm - 27.56In

Main Rotor Diameter: 1570mm - 61.81In

Tail Rotor Diameter: 281mm - 11.06In

Motor Drive Gear: 13T

Main Drive Gear: 107T

Autorotation Tail Drive Gear: 104T

Tail Drive Gear: 22T

Drive Gear Ratio: 8.23 : 1 : 4.73

Fuel Tank Capacity: 630cc

Takeoff Weight: Approx 4540g - 10.03Lbs

Additional Equipment Required for Assembly

Transmitter (6-channel or more, helicopter system)

Receiver (6-channel or more)

FBL Unit - Recommend BeastPlus

2S Li-Po 1900 ~ 2300mAh x 1 Recommend 2200mAh Part # HBP22002

Digital Pitch Gauge Part # HET80001

Engine Starter x 1 Part # HFSSTQ07

Fuel Pump x 1 - Jersey Modeler

Nitro Fuel - Recommend VP PowerMaster

OS 105 Nitro Motor x 1

105 Size Muffler x 1

Write a review

Please login or register to review

T-REX 700XN Dominator Combo RH70N11X by Align

  • Brand: Align
  • Product Code: 01-RH70N11X
  • Availability: Back Order
  • SKU: RH70N11X
  • $1,390.99
  • $1,251.89
