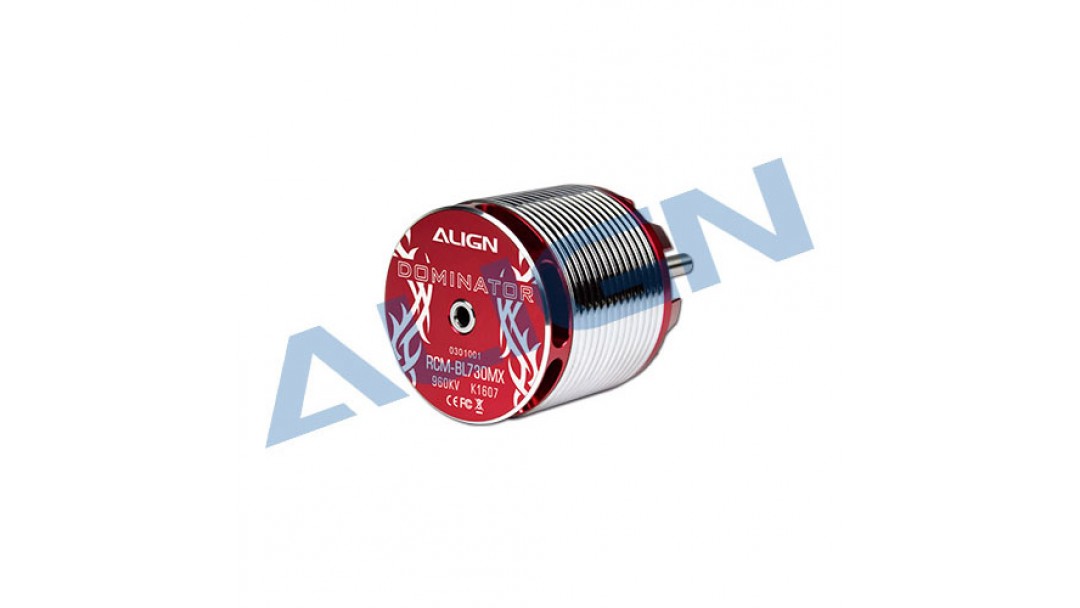

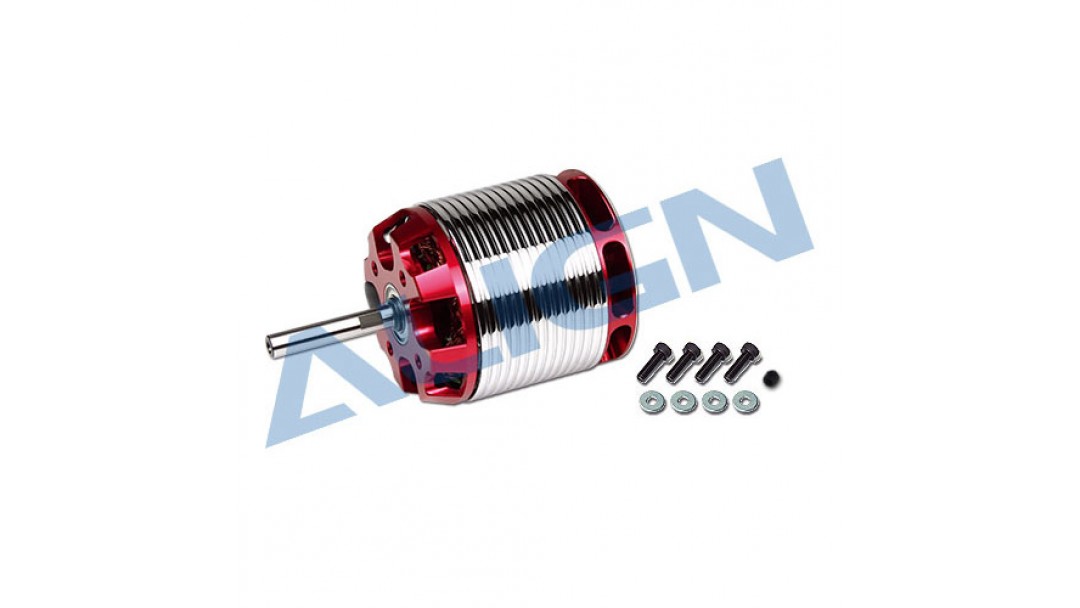

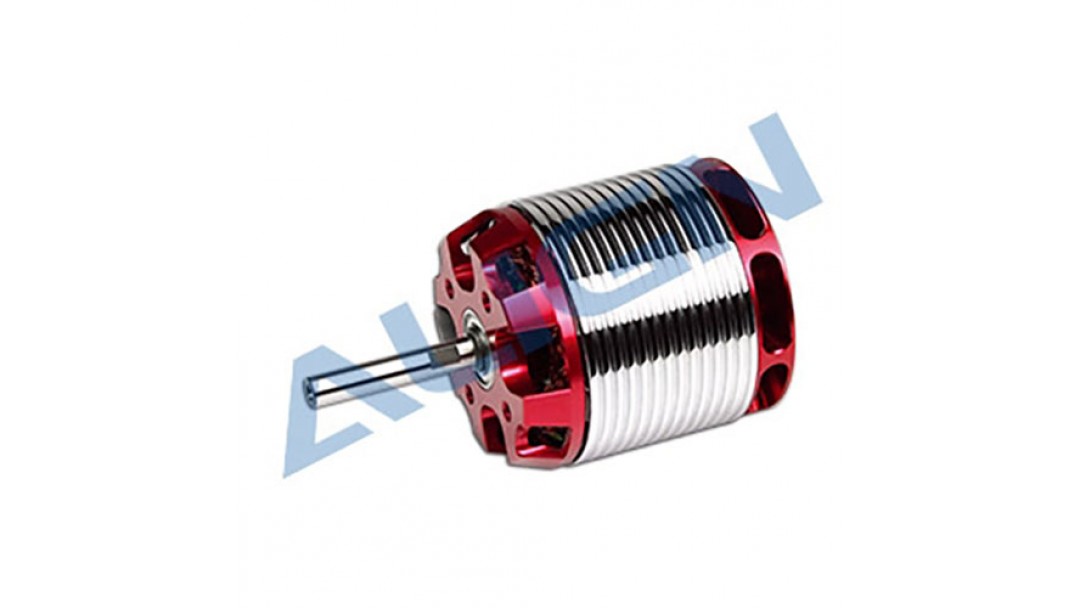

T-REX 730MX Brushless Motor 960KV-4230 by Align.
|
Product Information For T-REX 550L, 550X Series Recommended ESC: 100A-120A
Shaft Replacement 730MX Motor Shaft - HMP73M01 HML73M02 Manual Download |
| Motor Specification | |
| KV Value | 960KV |
| Input Voltage | 6S |
| Stator Diameter | 42mm |
| Stator Thickness | 30mm |
| Stator Arms | 12 |
| Magnet Poles | 8 |
| Max Continuous Current | 115A |
| Max Instantaneous Current | 195A (5sec/5) |
| Max Continuous Power | 2550W |
| Max Instantaneous Power | 4330W (5sec/5) |
| Dimension | 6x52x89.1mm |
| Weight | 380g - 13.40oz |
T-REX 730MX Brushless Motor 960KV-4230 HML73M02 by Align
- Brand ALIGN
- Product Code: 01-HML73M02
- Availability: Out Of Stock
-
$134.99
Related Products
Tags: T-REX 550X, T-REX 550L
