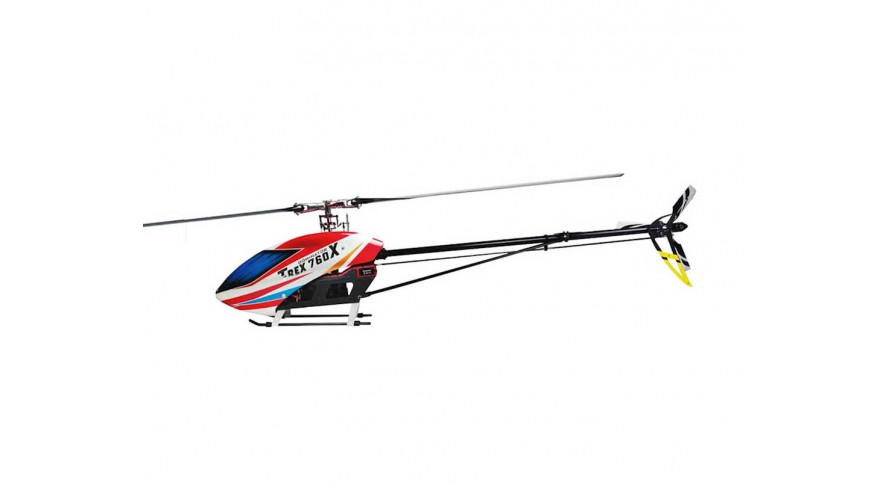

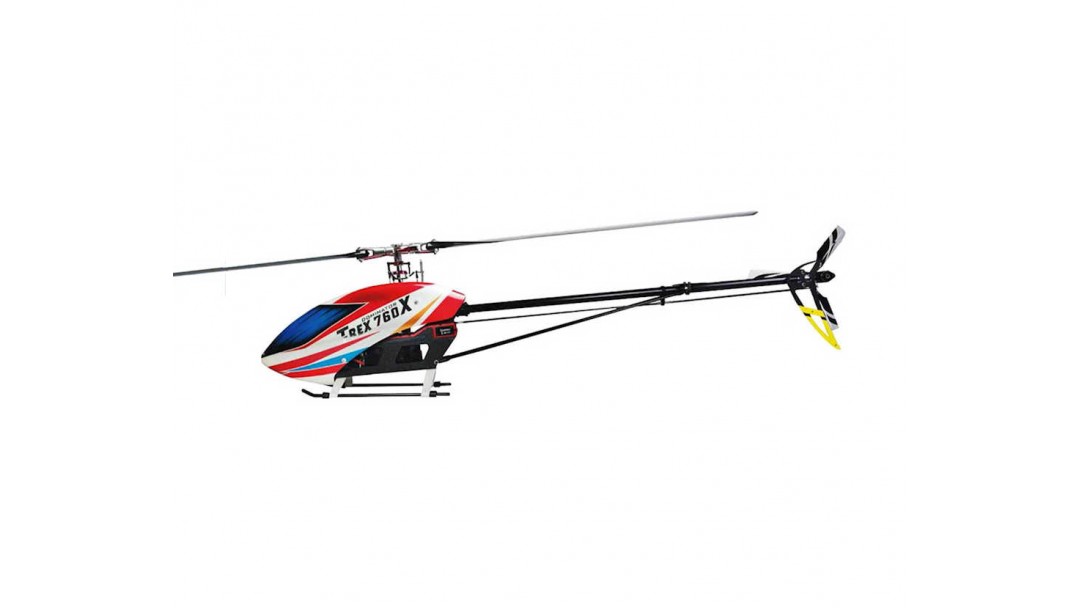

T-REX 760 Dominator Top Combo by Align.

The brand new Align T-REX 760X features with new body length and new 760 main blade for F3C/3D flight design providing the outstanding performance than other series will give you the different flying feeling.

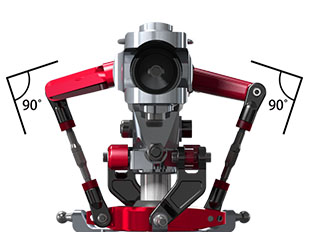

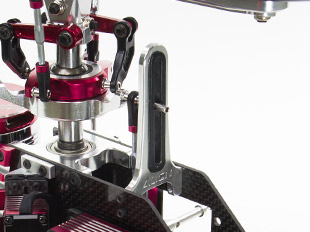

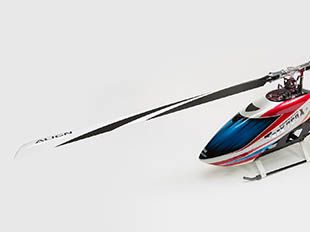

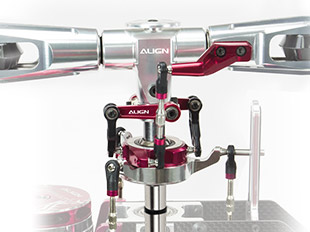

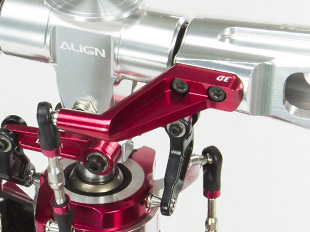

The new 700FL rotor head system can use new F3C rotor holder arm and 3D rotor holder arm. F3C rotor holder arm effectively doubles the flight stability with excellent and precise control accuracy not only has more advantages in the static flight also provide the perfect controlling feel in 3D flight. 3D rotor holder arm suitable for extreme 3D flight provides the more direct and faster control response. Main rotor grip arm and linkage rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance. Also the new 760 main blade features with better flight stability and superior lift making the T-REX 760X in the control feel and stability better than other models. Utilized the three tail blade set as standard accessory feature with excellent controlling feel and superior tail authority allowing you to enjoy the flying no matter F3C or 3D flight.

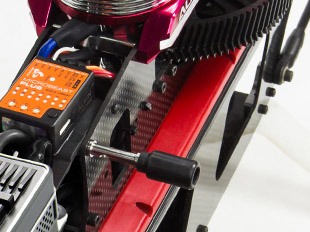

T-REX 760X introduced the advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 760X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 760X the leader in this class. The lightweight structure design which significantly reduce the body weight can effectively increase your flight time.

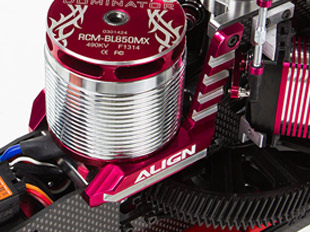

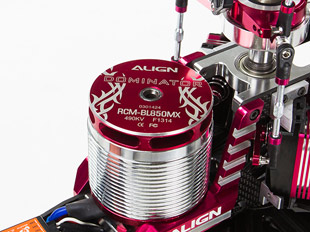

The T-REX 760X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter’s high quality design is accented with precision machined red and silver metal parts. The brand new Platinum HV 200A V4 ESC supplies extreme power. The ESC includes a superior governor and BEC. The NEW DS820M/DS825M high voltage brushless servos are more efficient and outperform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.

T-REX 760X introduced many new design with top equipment providing excellent performance allowing any flying style no matter F3C or 3D flight. If you don’t have any big helicopter, T-REX 760X must your best choice.

Standard Equipment

T-REX 760X Kit x 1

DS820M HV Brushless Servo x 1 Pulse: 1520µs / Freq: 333hz

DS825M HV Brushless Servo x 3 Freq: 200hz

DS530 HV Brushless Servo x 1

700 Carbon Fiber Blades x 1

105mm 3K Carbon Fiber Tail Blades x 1 set


Length: 1390m - 54.72In

Height: 360mm - 14.17In

Width: 195mm - 7.67In

Main Blade Length: 700mm - 27.56In

Main Rotor Diameter: 1702mm - 67.00In

Tail Rotor Diameter: 287mm - 11.30In

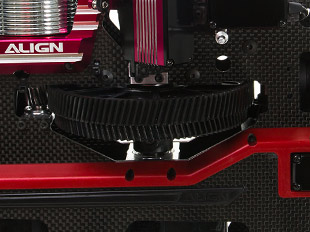

Motor Drive Gear: 12T

Main Drive Gear: 112T

Autorotation Tail Drive Gear: 102T

Tail Drive Gear: 23T

Drive Gear Ratio: 9.33 : 1 : 4.43

Takeoff Weight (w/o Battery): Approx 3750g - 8.27Lbs

Additional Equipment Required for Assembly

Transmitter (6-channel or more, helicopter system)

Receiver (6-channel or more)

FBL Unit - Recommend BeastPlus

6S Li-Po 4500 ~ 6000mAh x 2 Recommend 6000mAh Part # HB60001

Digital Pitch Gauge Part # HET80001

Hex Screw Driver Set Part # HOT00002

Write a review

Please login or register to review

T-REX 760X Dominator Top Combo RH76E01A

  • Brand: Align
  • Product Code: 01-RH76E01A
  • Availability: Back Order
  • SKU: RH76E01A
  • $1,812.99
  • $1,631.99
