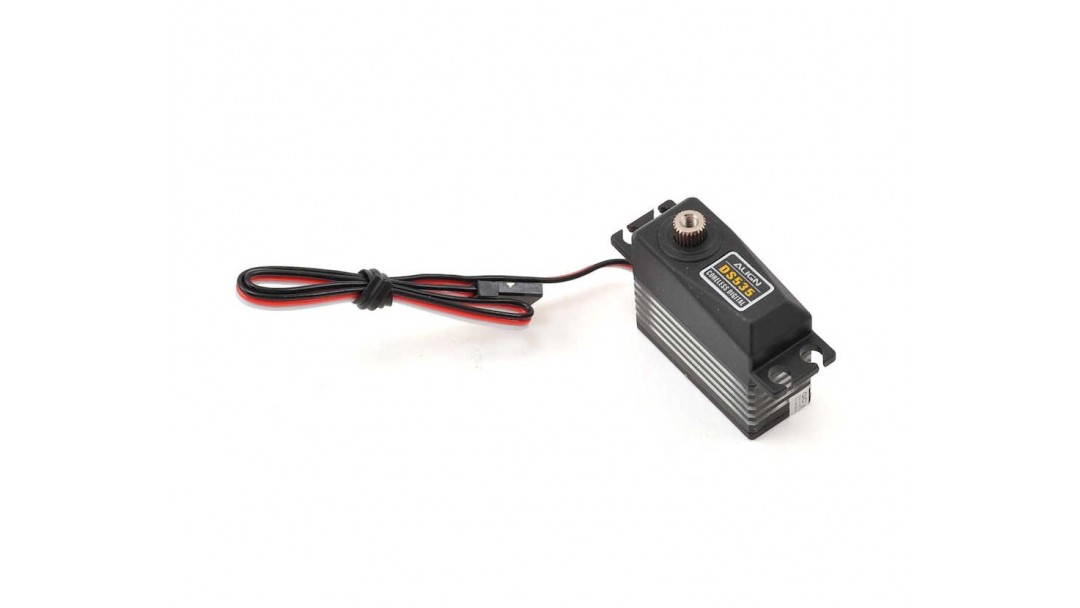

T-REX DS535 Digital Tail HV Servo by Align.

Product Information

For T-REX 500, 550L, 500XT Series or 500 Class Size.

Designed Specifically for 500 Class Size RC Helicopters

Utilizes Brushless Motor for Fast Speed, High Torque, Super Efficient Reaction

CNC Aluminum Case

Plastic Upper Cap and Lower Bottom Plate

Ultra High Signal Resolution

Hardened High Strength Super Alloy Gears

Suitable for Rudder Use

Gear Replacement

DS535 Servo Gear Set - HSP53502

Servo Case Replacement

DS530-535 Upper Lower Cover - HSP53004

Package Includes

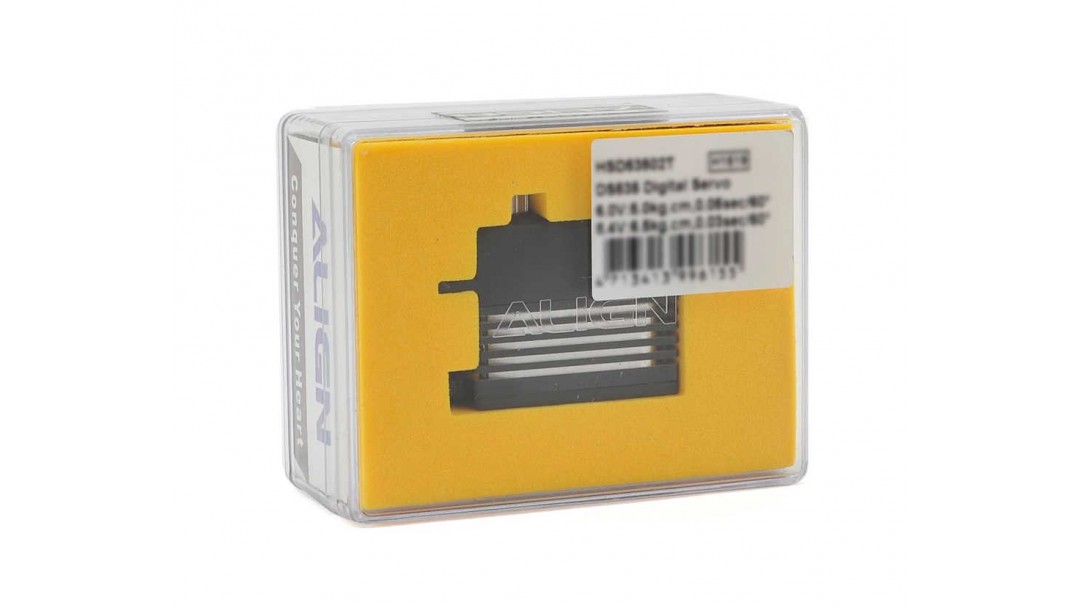

DS535 Digital Servo x 1

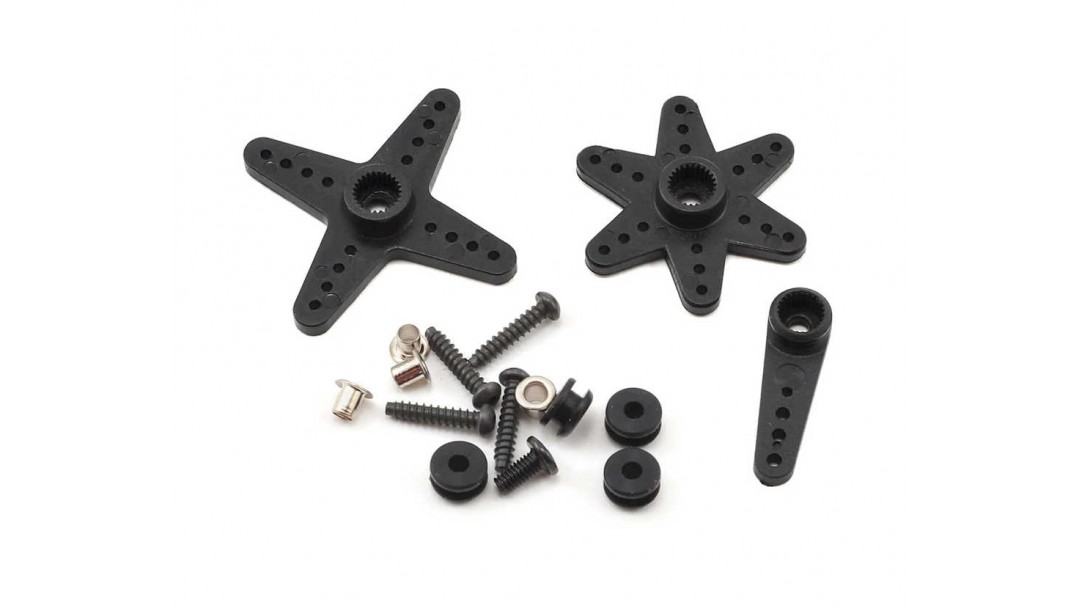

Servo Arm x 1

DS515/525 Servo Arm Set x 1

Socket Button Head Self Tapping Screw x 4 (T2.6x12mm)

Servo Specs
Cyclic Servo	YES
Tail Servo	YES
RC Use	YES
Case	Metal and Composite Material
Gear Set	Metal
Voltage Range	6.0-8.4V DC
Stall Torque	6.5kg.cm (6.0V) - 9.0kg.cm (8.4V)
Motion Speed	0.085sec/60° (6.0V) - 0.065sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C
Swashplate Frequency	200Hz
Rudder Frequency	333Hz
Pulse Length	1520µs
Dimension	35.1 x 15.1 x 29mm
Weight	29g

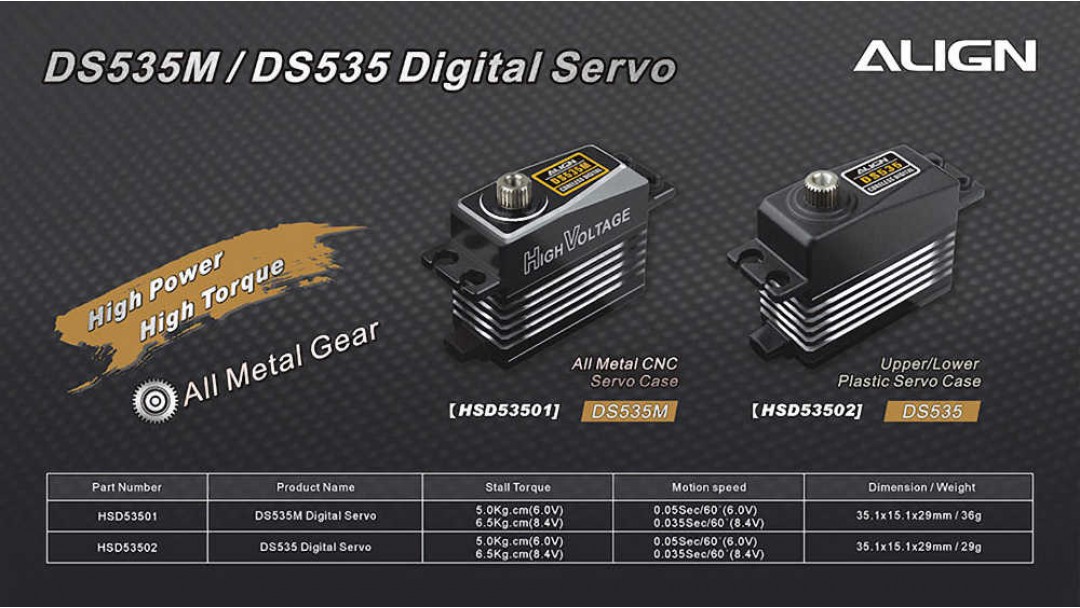

	T-REX DS535 Digital Tail HV Servo Plastic and Metal Case	T-REX DS535M Digital Tail HV Servo All Metal Case
Price	$53.99	$80.99
Rating
General
Product Name	DS530 Digital Cyclic HV Servo	DS535M Digital Tail HV Servo
SKU	HSD53002	HSD53501
Specification
Cyclic Servo
Tail Servo
RC Use
Case	Metal and Composite Material	All Metal
Gear Set	Metal	Metal
Voltage Range	6.0-8.4V DC	6.0-8.4V DC
Stall Torque	6.5kg.cm (6.0V) - 9.0kg.cm (8.4V)	5.0kg.cm (6.0V) - 6.5kg.cm (8.4V)
Motion Speed	0.085sec/60° (6.0V) - 0.065sec/60° (8.4V)	0.05sec/60° (6.0V) - 0.035sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C	-20°C ~ +60°C
Swashplate Frequency	200Hz	200Hz
Rudder Frequency	333Hz	333Hz
Pulse Length	1520µs	1520µs
Dimension	35.1 x 15.1 x 29mm	35.1 x 15.1 x 29mm
Weight	29g	36g
