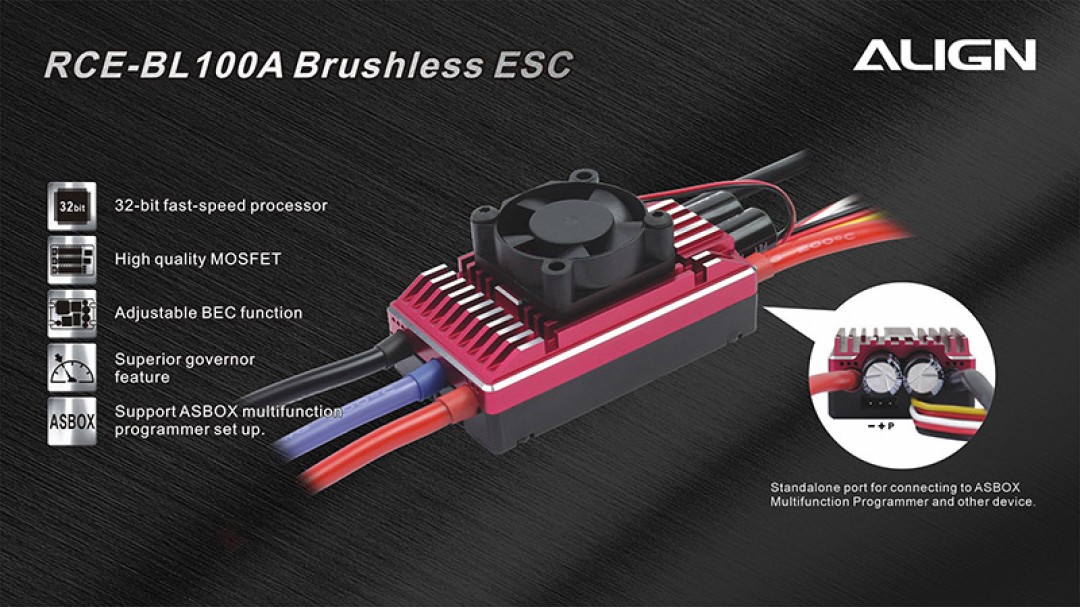

Product Information

For T-REX 550L, 550X Size RC Helicopters or Planes

• 32-bit fast-speed processor.
• High quality MOSFET.
• Adjustable BEC function, supply power to receiver and servos.
• Superior governor feature.
• Support 730MX Brushless Motor, Extreme 3D Flight.
• Support USB interface to PC for firmware updating.

RCE-BL100A Brushless ESC Instruction Manual Download

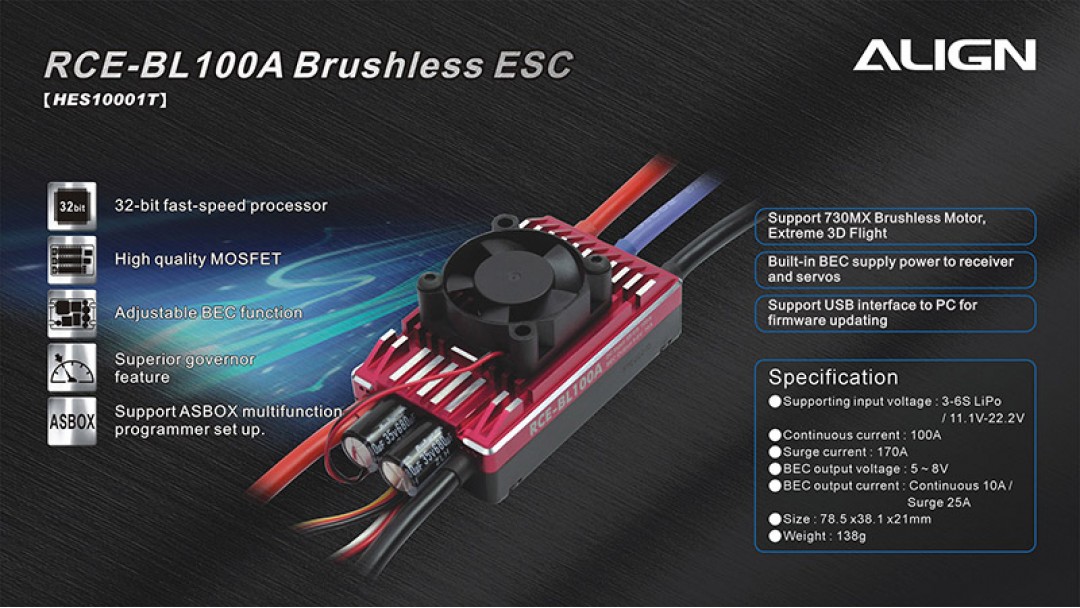

Specifications

Supporting Input Voltage: 3~6S Lipo / 11.1V~22.2V

Continuous Current: 100A

Surge Current: 170A

BEC Output Voltage: 5~8V

BEC Output Current: Continuous 10A / Surge 25A

Size: 78.5x38.1x21mm

Weight: 138g

Package Includes

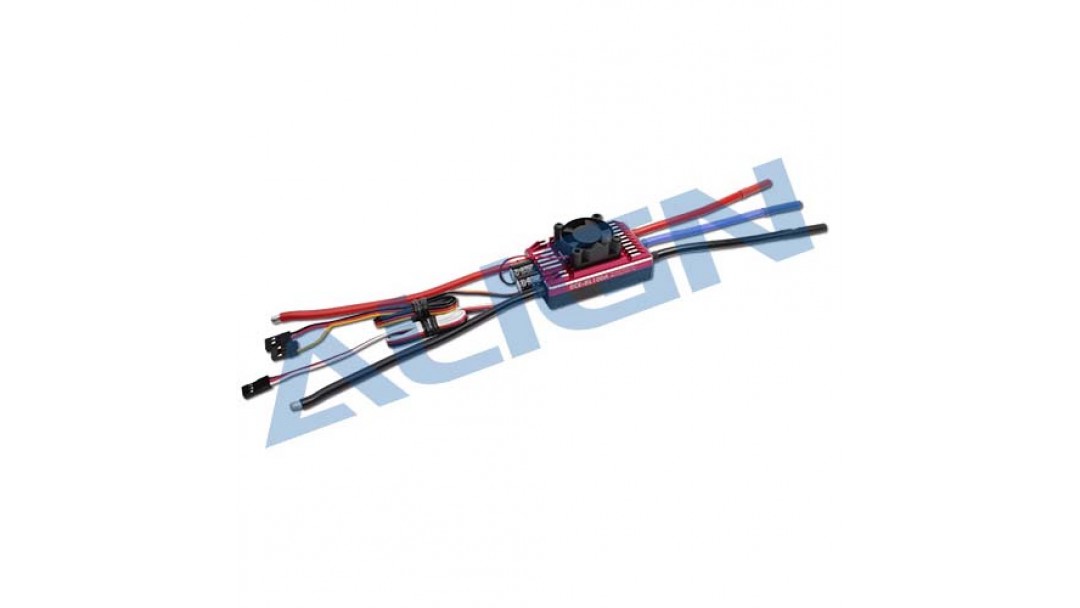

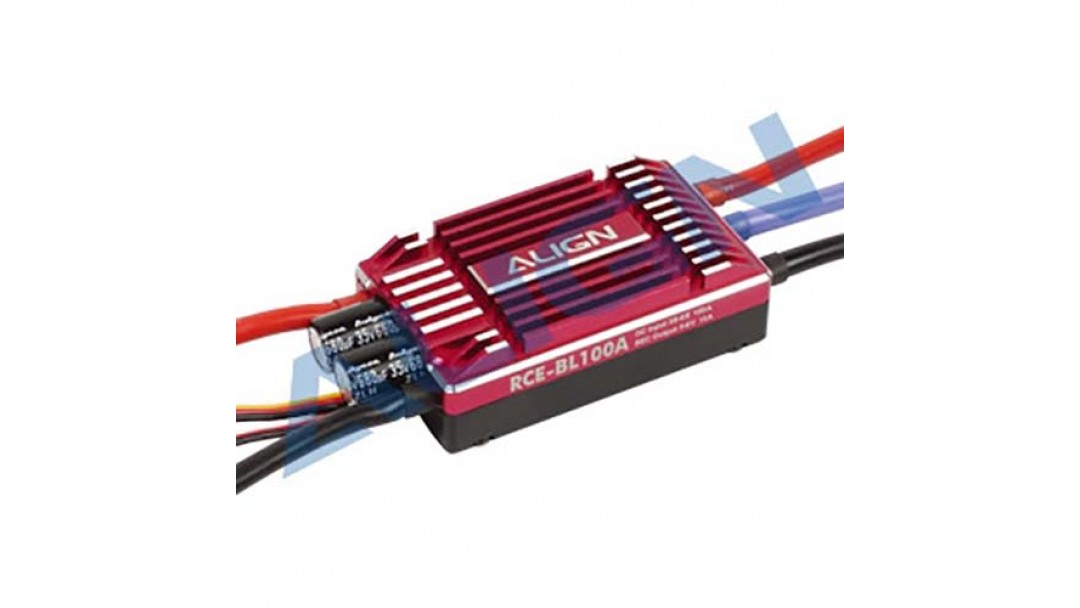

100A Brushless ESC x 1

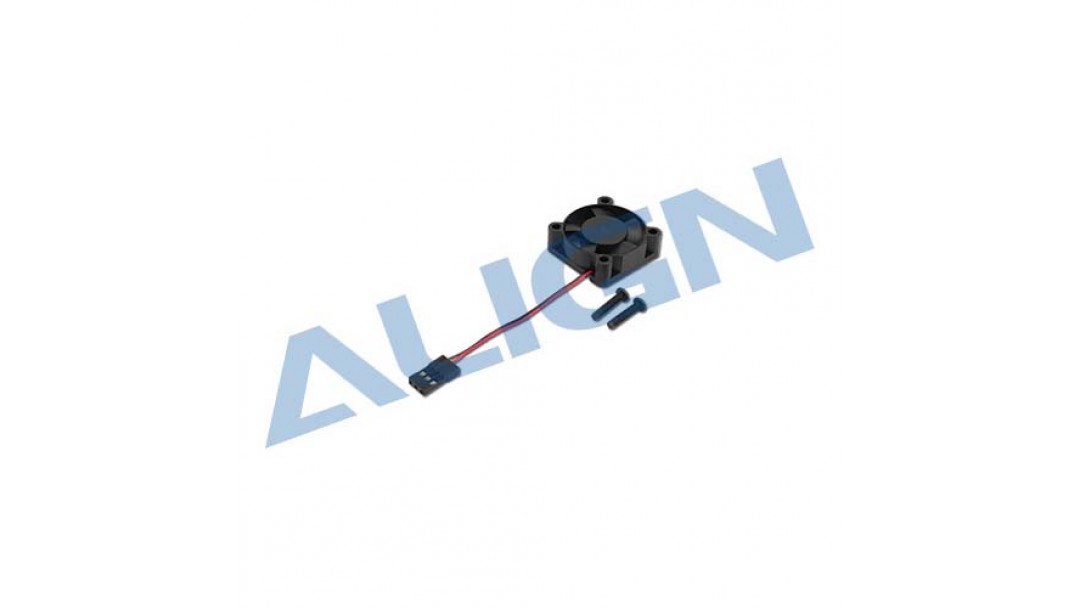

Brushless ESC Fan x 1

Socket Terminal x 3

Heat Shrink Tube x 3 pcs
