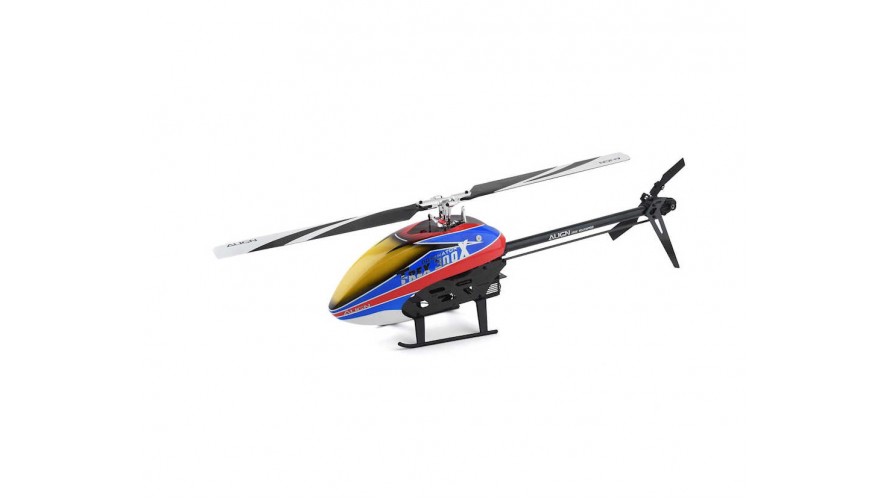

ALIGN T-REX 300X Dominator Ready to Fly RTF. Charge and Fly.

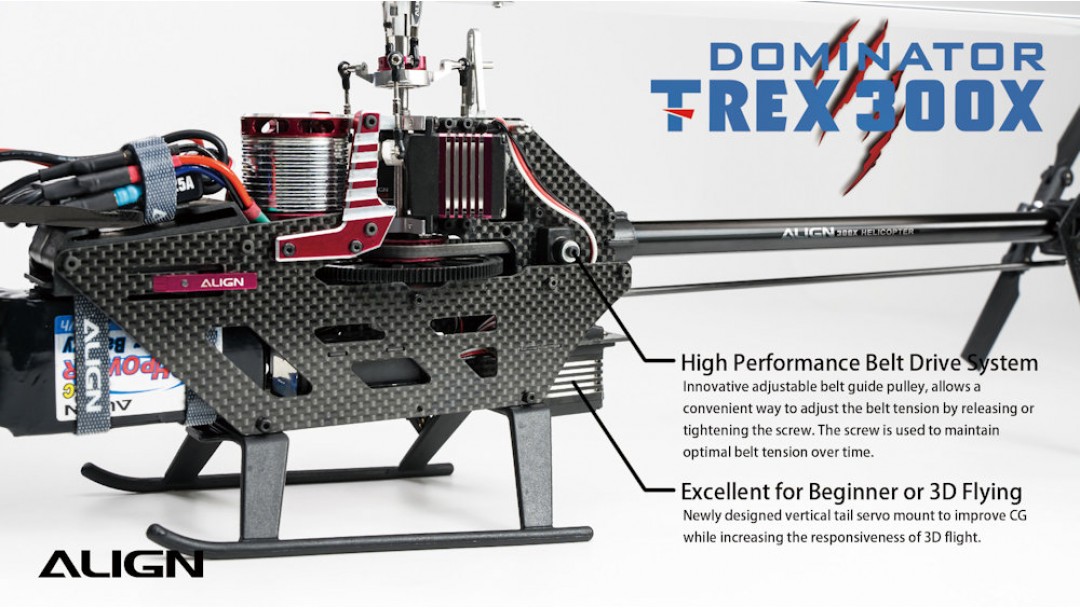

Align newly designed T-REX 300X, small but all-in-perfect. It adopts DFC rotor head unit, low CG and low wind resistance providing direct flight responses. The carbon fiber main frame is made of composite material and with reinforcement plate and brace assembly effectively enhancing structural intensity and torsion resistance. Narrow body design makes mechanical structure much stronger. The battery slider and top-mounted motor design with anodized bright red color brings pretty texture on this model. Thicken aluminum alloy tail boom for the best torsion resistance and increase the tail support rod lifetime. The progressive lightweight landing skid making this model the leader in this class. Plus the fiberglass painted canopy features lightweight and low in wind resistance.
The standard high torque and high efficiency 300MX 3700KV/2216 brushless motor not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation. Allow to provide consistent power output and keep stable RPM in non-stop 3D flying presenting perfect performance. Also it pairs with digital HV DS450 and DS455 servos, supporting 8.4V output, fast response and high torque. The new 25A brushless speed governor support 5~8.4V adjustable BEC voltage.
T-REX 300X is tiny but everything all-in-one so that can perform well in not only in-door show but also outdoor 3D flights. This model offers you the best bargain price allow you to have fun flying at any time.

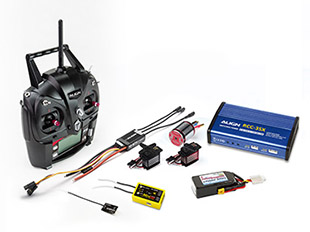

Standard Equipment T-REX 300X DOMINATOR Kits Set MiniGRS Flybarless System 230 Carbon Fiber Main Blades 50 Tail Blade RCE-BL25A 25 Brushless ESC 300MX Brushless Motor (3700KV/2216) DS450 Digital Servo x 3 DS455 Digital Servo A10 Radio Control System Combo MiniA.BUS Receiver Balance Charger RCC-3SX 3S1P 11.1V 1300mAh/30C x 1 *All Items Are Subject To Change By Align |
Equipment Required for Assembly Digital Pitch Gauge Swashplate Leveler
|
Standard Equipment | |
Kit | 300X Super Combo RTF |
Model | RH30E01X |
Main Blades | Align 230mm Carbon Fiber Main Blades |
Tail Blades | Align 50mm Tail Blades |
Battery | Align 3S1P 11.1V 1300mAh 30C - XT30 |
Battery Charger | Align RCC-3SX Balance Charger |
Spare Parts Box | Small Parts - Tweezers - Plastic Screwdriver - Bind Plug |
Electronics Included | |
ESC | Align RCE-BL25A 25 Brushless ESC |
ESC Programing | Align ASBOX Multifunction Programmer HES00001 (Sold Separately) |
Motor | Align 300MX Brushless Motor (3700KV/2216) |
Cyclic Servo | Align DS450 Digital Servo x 3 |
Tail Servo | Align DS455 Digital Servo |
Servo Gears | Metal |
Servo Case | Metal and Composite Material |
Flybarless System | MiniGRS Flybarless System |
Flybarless Programming | Dials on MiniGRS & Transmitter |
Stabilization Level Mode | No |
Rescue Mode | No |
Receiver Built In | MiniA.BUS Receiver Included, Futaba - FHSS |
Receiver Supported | DSMX (Recommend Kensun Satellite) |

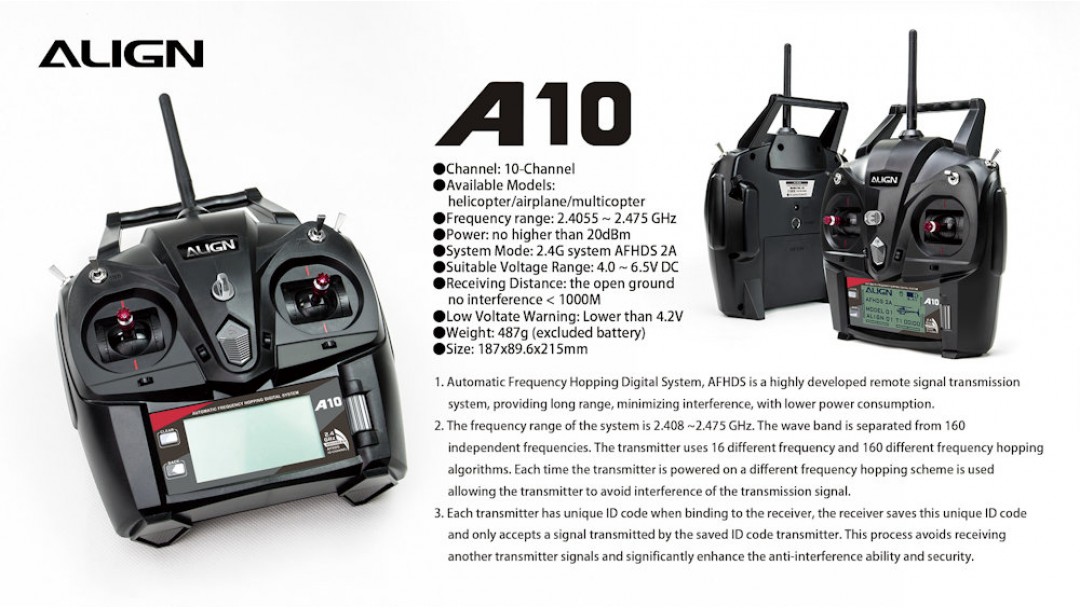

Transmitter Specification | |
Model Memory | 20 Different Models |
Channel | 10-Channel |
Frequency Range | 2.4055 ~ 2.475 GHz |
Available Models | Helicopter - Airplane - Multicopter |
Power | No Higher Than 20dBm |
System Mode | 2.4G System AFHDS 2A |
Input voltage | 4.0 ~ 6.0V DC |
Receiving Distance | Direct Line of Site <1000M |
Low Voltage Warning | Lower than 4.2V |
Size | 275x187x102mm - 10.83x7.36x4.02in |
Weight | 485g - 17.11oz (excludes battery) |
Specification | |
Length | 476mm - 18.74in |
Height | 158mm - 6.22in |
Width | 88mm - 3.46in |
Main Blade Length | 230mm - 9.06in |
Main Rotor Diameter | 525mm - 20.67in |
Tail Blade Length | 50mm - 1.97in |
Tail Rotor Diameter | 143mm - 5.63in |
Motor Pinion Gear | 14T |
Main Drive Gear | 115T |
Main Drive Pulley | 40T |
Tail Drive Gear | 13T |
Tail Drive System | Belt |
Drive Gear Ratio | 8.21:1:3.08 |
Weight (Without Battery) | 418g - 14.74oz |
ALIGN T-REX 300X Super Combo w/ A10 Radio Ready to Fly (RTF) RH30E01XW
- Brand ALIGN
- Product Code: 01-RH30E01XW
- Availability: Out Of Stock
- $582.99
-
$499.99
